The Patriot Swing Gate Opener is the fastest, strongest, and most reliable gate opener, offering an unmatched 14 years of superior performance backed by a 3 year limited warranty. Made in the USA, this gate opener features pre-wired solar parts, pre-installed components, and a built-in timer.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others
- Weight and length: Up to 16' in length or 650 lbs.
- Max degree of opening: 120 degrees
- Gate Post or Column size (pull to open): The pre-drilled hole on actuator bracket must be located 5" behind the gate hinge and 8" to the inside of the property.
- Push to Open: Yes - setback above does not apply to push to open.
- Solar Compatible: Yes (purchased separately).
- Power: +12 VDC maintenance free lead acid, Gel or AGM battery rated at a minimum of 35-amp hours group size U1 (not included)
- Power Wire Specification: 12 or 18 gauge wire (extension cable sold separately)
- Operating Temperature: -20º to 150º F
- Warranty: 5 year manufacturer control board, 3 year component manufacturer warranty.
For this board to function, a UL 325 photo-eye safety device must be attached to the board and used in the operating system. This USAutomatic Gate Operator is NOT compatible with the EMX IRB-RET Photo Eyes.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
USAutomatic Patriot Single Swing Gate Opener
With an approximate cycle time of 12 seconds for a 90-degree opening, the Patriot Swing Gate Operator is the fastest option for swing gates up to 16 feet and 650 lbs. per leaf. The Patriot is ideal for those seeking a faster, stronger installation.
The Patriot Swing Gate Operator is powered by a 12-volt DC battery (not included). This battery is charged by the supplied transformer, which requires AC power (120 VAC) to be located either at the gate area or within 1,000 feet of it. If the AC power is more than 10 feet from the gate opener's control box, additional extension cable is required.
The automatic gate operator's solar charging method is optional and requires a solar panel (sold separately) for proper operation. Typically, only one panel will be needed. The Patriot Swing Gate Operator is capable of up to 50 cycles per day with solar capability and up to 100 cycles per day when using AC power. For information on what you can expect from a solar-charged system, see the solar charging section of this site. Accessories added to your gate opener must be solar-friendly and will be identified as such. Review the solar region map to determine the number of cycles per day you can expect from a solar-charged system.
The Patriot control board is the replacement circuit board for the Patriot gate operators. It includes a number of user-friendly features and serves as the same control board for both single and dual Patriot gate operators, as well as for slide and swing gates. The Patriot control board also features sensitivity adjustment capabilities that can be used independently on Gate 1 and Gate 2, eliminating the need to constantly adjust the settings. Other features include 13 LED troubleshooting lights and a 5-year warranty for the control board.
The Patriot Swing Gate Operator by USAutomatic is proudly manufactured in the US.
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Remote Transmitters Included: (2) Estate Swing transmitters - open the gate from your car
- Fast Cycle Time: Fast 12 second cycle time (90 degree opening)
- Solar Compatible: Solar panel is optional
- Preinstalled Components: With components preinstalled, set up time is minimal
- Smart Charge: Solar or AC charged with solar friendly Smart Charge controller
- PEPM: Photo Eye Power Management solar friendly software
- Ideal for: Residential, Light Commercial, Farm and Ranch use
- Solar Friendly: Designed to operate with all types of solar friendly accessories without adding solar panels
- Installation How-to: Installation manual provided
- Warranty: 5 year control board 3 year component limited warranty

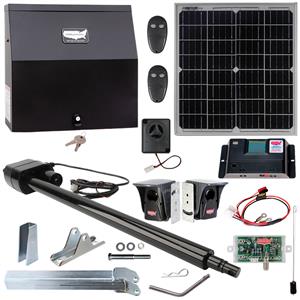

- Actuator Arm with 8 ft. of cable
- Gate Bracket
- Secondary Entrapment Siren
- Set of 2 Safety Signs
- (2) 433Mhz Estate Swing Transmitters
|
- Hardware kit
- Control Box with Installed Components:
- LCR Receiver
- Control Board
- Charge Controller
|
- AC Charger
- Hinge Mount Tube
- Manual Release Pin and Clip
- Instructional Manual
|
For over a decade, Gate Crafters has been the premier online retailer of gate openers and accessories. With our extensive technical and installation expertise, we are authorized to serve the DIY market. We believe customers should have the opportunity to take pride in their projects, whether installing or troubleshooting a gate opener. Everyone deserves the option to enjoy high-quality products without the need to hire help. At Gate Crafters, we empower you to install confidently by providing access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to DIY your gate opener system, you can save thousands of dollars over its lifetime while gaining valuable knowledge about your installation and how the system operates. This understanding will make it easier to troubleshoot any issues and perform routine maintenance in the future. |
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- SAE Standard wrenches & sockets
- Welder
- Nut driver
- Drill and bits
- Level and tape measure
- Drill adapter for socket attachment
- Pliers
- Hack saw
- Wire Cutters/Strippers
Welding is the recommended method of securing the linear actuator mounts to the gate and hinge post. Bolt on brackets require frequent service to keep tight. They must be very securely attached (i.e. carriage bolts with lock nuts and washers). Lag type bolts are not recommended. Loose or unstable linear actuator mounts will result in improper operation. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Manual: USAutomatic Patriot Installation Manual (Current Release)
Manual: USAutomatic Patriot Installation Manuals for ALL Boards
