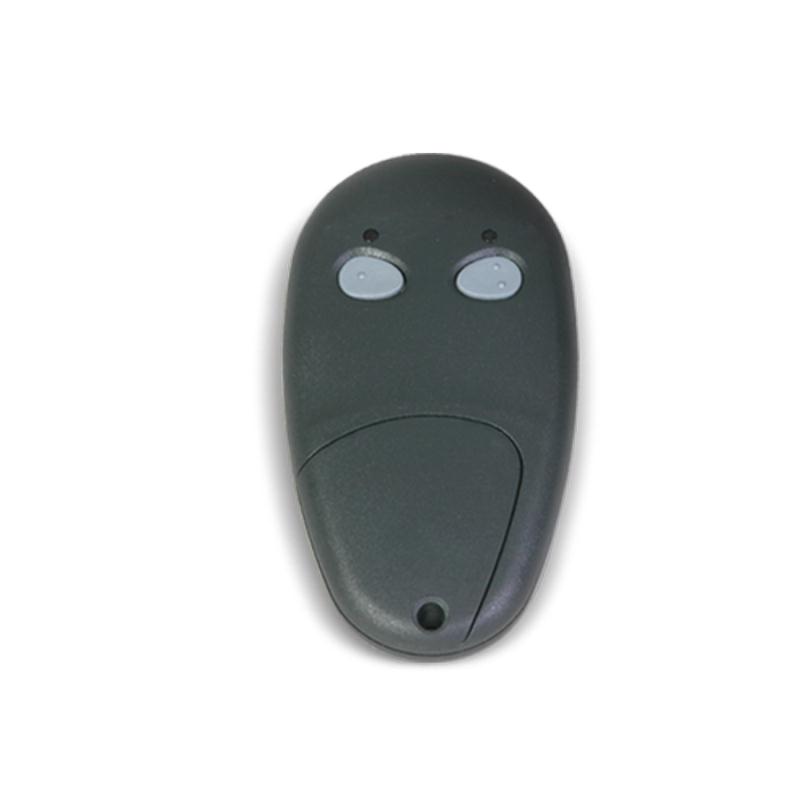

The Transmitter has been designed to control automatic opening systems and anti-burglar systems. The operating frequency is 433.92 MHz. During installation, the receiver must be connected to the device it controls (gate, rolling shutters, awnings, anti-burglar appliances, lighting). The transmitter security code is created by 9 ways three-position dipswitches. This allows up to 19,683 code combinations.
Security Code
Slide the access panel to the left to access the battery and the dip-switches. The position of the dip-switches create the security code. Warning: each transmitter is factory set with a default code. To help prevent unauthorized access, you must change this code by changing the positions of the dip-switches to a random pattern. Multiple transmitters can use the same switch pattern to simplify programming.
Programming
The transmitter code has to be stored into the
receiver memory before use. Simply hold down the button on the transmitter you want to use. While holding the transmitter button down, press the appropriate programming button (P1 or P2) on the
receiver. Once the
receiver indicator lights up, you are done. Any additional transmitters that are set to the same security code are also programmed at this time. Contact your dealer or distributor for additional functionality.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Compatible with gate openers or garage door openers with a 433 MHz receiver.
- Easy programming: Quickly programs to compatible USAutomatic 433 MHz receiver
- Compact: Easy to carry!
- Operating Frequency: 433 MHz
- Warranty: 1 year limited warranty
- Operates gates or garages
- Typically operates up to 300 feet
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener. |
- Number of keys: Supply: 2 / 4
- Battery Type: 1 Alkaline Battery 12V type 23A
- Battery life: 12 - 18 months
- Current Consumption: 25 mA
- Operating Frequency: 433.92 MHz
- Code Combinations: 19683
- Modulation: AM / ASK
- Rated e.r.p.: 50 - 100 µW
- Range in free space: 180 - 360 feet
- Operating temperature: 0 - 130 °F
- Overall dimensions: 3.26 x 1.88 x 0.62 in
- Weight: 20 gr.
- 2 or 4 Button Transmitter (based on option selection)
- Visor Clip
- Instructions
