The Ranger HD is a gate opener designed for residential, light commercial, farm, and ranch use. It operates using a low-voltage transformer or solar panels (sold separately). This gate opener is easy to install and comes with all the necessary components, including a 12 VDC linear actuator, two-button transmitters, mounting hardware, and more. Additionally, the linear actuator is now equipped with a ball screw drive, which increases the longevity of the opener.
- Gate Materials: Ornamental Iron Gates, Farm Gates, Ranch Gates and Chain Link Gates
- Weight and length: Up to 18' in length or 800 lbs.
- Max degree of opening: 120 degrees
- Push to Open: Yes. Max 110 degrees
- Solar Compatible: Yes (purchased separately).
- Power: +12 VDC maintenance free lead acid, Gel or AGM battery rated at a minimum of 35-amp hours group size U1 (not included)
- Warranty: 3 year manufacturer control board, 3 year component manufacturer warranty.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
USAutomatic Ranger HD Single Swing Gate Opener
The Ranger HD (Ball Screw) is a unique gate opener featuring an innovative ball screw drive. We chose to sell this gate opener because of this distinctive feature. Traditional electromechanical gate openers use a lubricated Acme screw to drive the piston, relying on lubricant to reduce friction. In contrast, a ball screw uses small ball bearings that ride between the drive screw and the “nut” attached to the end of the piston. This design is significantly more efficient, virtually eliminating drag from friction and extending the life of the screw drive by a factor of four. We recommend this gate opener for areas of high use, such as lighter to medium-weight commercial applications and high-volume residential gates, especially when solar power is desired.
The Ranger HD is an excellent addition for ornamental iron, chain link, farm, ranch, and all other types of gates. This gate opener is solar-friendly and easy for homeowners to install. It can be powered by a DC transformer (included) or a solar panel (not supplied). This low-voltage transformer plugs into a battery controller and can provide up to 575 cycles a day without decreasing the battery charge. Its unique charging system design allows the transformer to be installed away from the gate area if needed, meaning the transformer’s low-voltage wire can be extended. The solar option enables installation in remote areas or applications where solar charging is preferred. The included battery charge controller accepts either the DC transformer or solar panel and comes with a DC plug for easy installation. It also includes two LCR two-button transmitters, photo eyes, and mounting hardware. Another great feature of this unit is the electronic limit control on board for easier position adjustment.
USAutomatic LLC warrants this product to be free of defects in material for three years. Following your purchase, USAutomatic LLC will repair or replace the product free of charge, including parts, shop labor, and return shipping. The warranty does not cover damage caused by weather, natural disasters, or severe acid damage from a battery.
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Non-corrosive Actuator and Control Box
- Battery Under Load Monitoring
- Low Battery audible Notification
- PWM Soft Start and Soft Stop
- “Gate APP” Compatible from USAutomatic Powered by Nexx.
- Electronic Limit Control on Board
- Independent Gate 1 and Gate 2 sensitivity adjustments
|
- Single or Dual Gate Compatibly
- Designed to operate with all types of accessories
- Photo eye transmitter is battery powered or hardwired
- Photo Eye Power Management (PEPM) solar friendly software
- Battery powered providing real battery backup. Not just 1 cycle
- Gate travel speed - 12 seconds
- Optional Galvanized Box Available
|

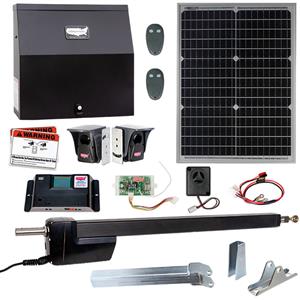

- Ranger HD Actuator Arm
- Metal Control Box with Cover
- Control Board
- Battery Controller
|
- Receiver
- Entrapment Siren
- (2) 433Mhz Transmitters
- Transformer
|
- Safety Signs
- Mounting Hardware - Weld-on Brackets
- Manual
|
For over a decade, Gate Crafters has been the premier online retailer of gate openers and accessories. With our extensive technical and installation expertise, we are authorized to serve the DIY market. We believe customers should have the opportunity to take pride in their projects, whether installing or troubleshooting a gate opener. Everyone deserves the option to enjoy high-quality products without the need to hire help. At Gate Crafters, we empower you to install confidently by providing access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to DIY your gate opener system, you can save thousands of dollars over its lifetime while gaining valuable knowledge about your installation and how the system operates. This understanding will make it easier to troubleshoot any issues and perform routine maintenance in the future. |
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- SAE Standard wrenches & sockets
- Nut Driver
- Wire Cutter/Strippers
- Drill
- Drill bits
- Drill adapter for socket attachment
- Pliers
- Hack saw
- Level and tape measure
Welding is the recommended method of securing the linear actuator mounts to the gate and hinge post. Bolt on brackets require frequent service to keep tight. They must be very securely attached (i.e. carriage bolts with lock nuts and washers). Lag type bolts are not recommended. Loose or unstable linear actuator mounts will result in improper operation. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Manual: USAutomatic Ranger HD Installation Manual (Current Release)
Manual: USAutomatic Ranger HD Installation Manuals for ALL Boards
