The USAutomatic Sentry 300 Series single swing gate opener is the most reliable and durable gate opener available, backed by a limited 3 year electrical and 3 year mechanical warranty. Made in the USA, this gate opener features Plug N Go wire connections, pre-installed components, and universal mounting brackets.
- Gate Materials: Ornamental Iron Gates, Farm Gates, Ranch Gates and Chain Link Gates
- Weight and length: Up to 20' in length or 400 lbs.
- Max degree of opening: 90 degrees
- Gate Post or Column size (pull to open): The pre-drilled hole on actuator bracket must be located 5" behind the gate hinge and 8" to the inside of the property.
- Push to Open: Yes. The pre-drilled hole on actuator bracket must be located 7" in front of the gate hinge and 4" to the drive side of the hinge.
- Solar Compatible: Yes (purchased separately).
- Power: +12 VDC maintenance free lead acid, Gel or AGM battery rated at a minimum of 35-amp hours group size U1 (not included)
- Power Wire Specification: Transformer is supplied with 12 feet of cable, if extension is needed use Sentry Charge Cable Extension Kit (part #630050).
- Operating Temperature: -22º to 158º F
- Warranty: 3 year manufacturer control board, 3 year component manufacturer warranty.
For this board to function, a UL 325 photo-eye safety device must be attached to the board and used in the operating system. This USAutomatic Gate Operator is NOT compatible with the EMX IRB-RET Photo Eyes.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
USAutomatic Sentry 300 Series Single Swing Gate Opener
The Plug N Go design of all installed components and the easy-to-understand Sentry control board make this the simplest gate opener for the do-it-yourself installer. Typical installation time is under one hour.
The Sentry 300 automatic gate opener is powered by a 12-volt DC battery (not included). This battery is charged by the supplied transformer, which requires AC power (120 VAC) to be located either at the gate area or within 1,000 feet of it. If the AC power is more than 10 feet from the gate opener's control box, additional extension cable is required.
The automatic gate opener's solar charging method is optional and requires the Sentry solar panel kit (sold separately) for proper operation. Typically, only one panel will be required. The Sentry single swing gate opener is capable of a high number of cycles per day. For information on what you can expect from a solar-charged system, see the solar charging section of this site. Any accessories added to your gate opener must be solar-friendly and will be identified as such. Review the solar region map to determine the number of cycles per day you can expect from a solar-charged system.
The Sentry 300 control board features high-quality components and industry-leading innovations, such as auto-resetting fuses for motor protection. The outdated auto-type fuse that blows and must be replaced has been eliminated from this controller to avoid the unnecessary expense of purchasing fuses. Another patent-pending feature of the control board is the onboard potentiometers for adjusting stop limits.
The Sentry 300 Series Swing Gate Opener by USAutomatic is proudly manufactured in the US.
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Remote Transmitters Included: 2 transmitters come standard to open the gate from your car
- Wireless Ability: Plug N Go harness eliminates wiring
- Solar Compatible: Up to 50 cycles per day with watt solar panel kit (based on zone number, please check manual for zone map - page 23)
- Preinstalled Components: With components preinstalled, set up time is minimal
- Universal Mounting Brackets: Bracket hardware is provided for both round and square posts
- Charge Controller and Transformer: These two patent pending products are included with all operators
- Installation How-to: Installation manual/DVD provided
- USA manufacturer: The 16" stroke linear actuator is made in United States
- Warranty: Limited 3 year electrical, 3 year mechanical warranty
|
Linear Actuator Arm
Plug N Go Harness
1/2" Cable Gland
Entrapment Siren
Set of 2 Safety Signs
Set of 2 433Mhz Transmitters
Transformer
Hardware kit
Control Box with Installed Components:
Charge Controller
LCR Receiver
|
Control Box
Universal Actuator Bracket
Square Post Flush Mount Bracket
Round Post Flush Mount Bracket
Actuator Bracket
Gate Bracket
Gate Support Bracket
Set of 2 Bronze Bushing
Manual release pin
Manual release clip
Color Instructional Manual & DVD
|

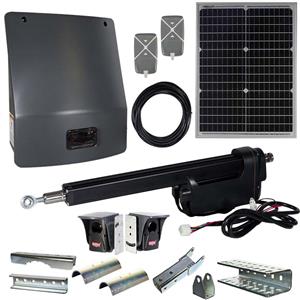

Included Parts:
|
For over a decade, Gate Crafters has been the premier online retailer of gate openers and accessories. With our extensive technical and installation expertise, we are authorized to serve the DIY market. We believe customers should have the opportunity to take pride in their projects, whether installing or troubleshooting a gate opener. Everyone deserves the option to enjoy high-quality products without the need to hire help. At Gate Crafters, we empower you to install confidently by providing access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to DIY your gate opener system, you can save thousands of dollars over its lifetime while gaining valuable knowledge about your installation and how the system operates. This understanding will make it easier to troubleshoot any issues and perform routine maintenance in the future. |
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- Wrenches - 7/16, 9/16 and 10mm
- Sockets 7/16, 3/8 and 5/16
- Drill
- Drill bits 1/4 and 3/8 inch
- Drill adapter for socket attachment
- Pliers
- Hack saw
- Level and tape measure
Welding is the recommended method of securing the linear actuator mounts to the gate and hinge post. Bolt on brackets are provided and are acceptable but may require frequent service to keep tight. They must be very securely attached (i.e. carriage bolts with lock nuts and washers). Lag type bolts are not recommended. Loose or unstable linear actuator mounts will result in improper operation. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Manual: USAutomatic Sentry 300 Installation Manual
Manual: USAutomatic Sentry 300 Installation
QB ID: 120320+30W
