The LiftMaster/Chamberlain LA412UL Gate Opener is a residential and light commercial linear actuator with solar capabilities.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others
- Weight and length: Up to 16' in length or 850 lbs.
- Operating Temperature: -4°F (-20°C) to 140°F (60°C)
- Max degree of opening: 100°
- Gate Post or Column size (pull to open): Max 7" x 7" post or gate mounted 4" from the rear face of a column.
- Push to Open: Yes - setback above does not apply (not included)
- Solar Compatible: Yes - 10 watt solar panel included (max 30W solar panel - not included)
- Power: Battery (included with standard box)
- Power Wire Specification: 12 Gauge Wire (sold separately). Length of wire depends on distance between transformer and control board.
- Warranty: 2 year manufacturer control board, 2 year component manufacturer warranty
LiftMaster recommends professional installation and provides direct support to its recognized dealer network. When customers purchase LiftMaster products through Gate Crafters, they receive seven-day installation, technical, and warranty support from us. We also assist with advanced support and warranty replacement directly with LiftMaster.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
LiftMaster LA412UL Single Swing Gate Opener with MyQ Technology Most people don't even realize the make of their garage door opener because they've never encountered a problem that required contacting the manufacturer. This level of reliability is now offered in the LA412 gate opener. The LiftMaster/Chamberlain LA412 Single Gate Opener is a low-voltage system, eliminating the need to run expensive 110-volt AC power wiring to your gate. The included 10-watt solar panel charges the battery, so there’s no need to connect to any other power source. Furthermore, the LA412 meets the high safety standards of the UL 325 listing, ensuring it is a reliable and safe gate-opening device. The LiftMaster line of gate openers now features built-in MyQ technology. This allows you to control your MyQ-enabled LiftMaster devices directly from your smartphone. When connected to the LiftMaster 828LM Internet Gateway (not included), you can take full advantage of the built-in MyQ connectivity. MyQ technology provides the added convenience of managing all your MyQ LiftMaster openers from a single device. Max 30W Panel
Ordering Options The ordering options for the LiftMaster residential gate opener series involve selecting your desired frequency and the size of the control box. The standard box measures 14" x 10" x 6," whereas the larger upgraded box measures 20" x 17" x 6." There are two options:
- Standard Box: Comes with the standard control box.
- Large Control Box: Comes with the larger, upgraded control box. (Please note that the larger box is designed to store a larger battery—batteries are not included with the larger box.)
If you need a dual gate opener system but are unable to run low-voltage wire underneath your driveway, LiftMaster has a solution for you. You can simply purchase two single gate opener systems, and with the built-in network communication, these two systems will work together as a dual opener system. |
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- CONTROL BOARD, EASY READ DIAGNOSTICS - The LED light diagnostic on the control board permits easy diagnostics of problems or missing connections. This allows efficient repair and swift continuation of normal electric gate operation.
- SOFT START/SOFT STOP Soft start/soft stop is a feature in which the control board, during the set up process, learns where the opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gates destination point. This reduces stress on the gate and operator for extended functionality.
- BI-PART LATCH - Designed to allow one gate leaf to begin opening or closing independently for those gates that have overlapping leaves.
- ADJUSTABLE CLOSING TIMER Set your gate to close between 0 and 120 seconds after reaching the full open position.
- ELECTRONIC LIMIT SWITCHES - Set the limit switches with just the push of a button for accurate, easy setup.
- ON BOARD RADIO RECEIVER - It is compatible with a number of wireless remotes and allows operation of a number of devices with one remote - such as the garage door and the gate opener.
- INPUT TERMINALS - For convenient addition of accessories requiring like loops, sensing devices and controlling devices.
- QUICK, SAFE AND SECURE MANUAL RELEASE - The LA-412 operator comes with a manual release key that can be used should the power fail and the backup battery is not charged. This ensures that the driveway gate can be opened without damaging or disconnecting any components.
- HIGHEST LEVEL OF SAFETY - This operator is designed with separate force adjustments for obstructions. If the gate meets an obstruction while it is opening it will reverse to close, and if it is closing it will reverse to open. Additionally, the LA-412 is UL 325 Listed.
- HIGH LEVEL OF CONVENIENCE - The LiftMaster MyQ technology allows you to control your gate simply from your MyQ app enabled smartphone and 828LM Internet Gateway.
- SOLAR-READY ULTRA-RELIABLE SYSTEM - Simple solar conversion delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance.
- PROGRAMMABLE AUXILIARY RELAYS - easily add additional features, such as warning lights/alarms.
- SYNCHRONIZED CLOSE - Simultaneously closes gates.
- KEYED MANUAL DISCONNECT - When unlocked, allows gate to be operated manually.
- INHERENT REVERSING SENSOR - Detects obstructions or increased loads. Reverses gate when closing or tops/reverses the gate when opening.
- FIRE DEPARTMENT COMPLIANCE - Allows gate to auto open upon loss of AC power or battery depletion.
- SURGE SUPPRESSION - Provides industrial surge and lightning protection against strikes up to 50 feet away.
- COMMERCIAL-DUTY CAST ALUMINUM HOUSING WITH HEAVY-DUTY DC MOTOR - Powerful enough to perform in the most demanding applications.
- ANTI-TAILGATE - Prevents unauthorized access. Gate will pause when closing as vehicle pulls onto interrupt or breaks photo bean. Once vehicle backs up, gate will continue to close.
- QUICK CLOSE - Closes the gate immediately after a vehicle pulls off the interrupt loop.
.jpg)

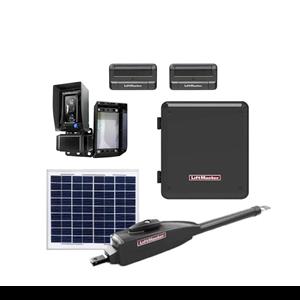

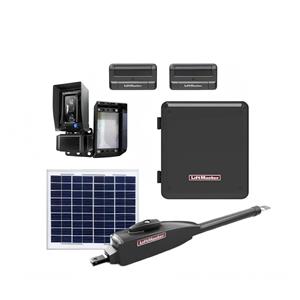

- Gate Operator (with power cable)
- Standard Control Box
- (2) Batteries
- Control Board
- 10 Watt Solar Panel
|
- (2) Free LiftMaster Remotes
- Photo Eye
- Pull-to-Open Bracket
- Gate Bracket
|
- Post Bracket
- Hardware
- Instruction Manual
- (2) Warning Signs
|
 For over a decade, Gate Crafters has been the premier online retailer of gate openers and gate opener accessories. Due to our extensive technical and installation knowledge, we are authorized to sell to the DIY market. If you purchase an LA400 or LA412 gate opener system from Gate Crafters and install it yourself, your warranty eligibility will be recognized by LiftMaster and supported by Gate Crafters. You can access our trained technical staff seven days a week from 9 AM to 9 PM EST. The LA400 and LA412 can be installed with simple household tools and do not require any specialized equipment. The wiring required for installation is simple and straightforward, as it involves only low-voltage wiring. When you install your gate opener system yourself, you will save thousands of dollars over the life of your gate opener. You will also gain a working knowledge of your gate opener installation and how the system operates. This will make it easier for you to troubleshoot any issues and perform routine maintenance, if needed, in the future.
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Words from Senior Application Engineer Anthony Geato | Top of Page |
“The LiftMaster LA412 and LA412 single solar gate openers are rated up to 850 pounds or gates up to 16 feet in length. The LA412 kits come with your choice of control board enclosures, a 10 watt solar panel, and your choice of transmitters. LiftMaster gives the LA412 a 2 year warranty. The LA412 has a lockable release that allows you to unlock the arm, so you can manually open your gate. The motor on the LiftMaster LA412 is about 2 and 1/4 inches in diameter and about 4 inches long. The worm drive gear transmission is made up of stainless steel and brass gears. The gear transmission spins a shaft that both controls the screw drive as well as the limit switch system. This shaft is riding on sealed ball bearings. This gate opener has an additional limit switch that tells the gate opener, that the gate has been unlocked. This is a well made gate opener, with the only exception being that the limit switches are electric and not magnetic. This type of limit switch is prone to contamination and may need to be replaced at some point in time. The LiftMaster LA412 has the option of two different control board enclosures. Each control board enclosure contains the same LiftMaster control board. The control board on the LA412 and LA412 has all of the necessary plugins for any accessories you wish to add to your gate opener. These can include exit wands, exit loops, edge devices, various safety devices, and locks. One down side of this control board is that it is very complex. The larger control board enclosure, is made to hold a larger battery that you must provide. One downside of this box is that it does not hold a larger group size 24 deep cycle marine battery in this box. A battery of this size will be beneficial to you if live in an area that does not get a lot of sunlight for some periods of time. The standard control board enclosure comes complete with 2 batteries. When you order from GateCrafters.com, you have the choice to choose the transmitters. Gate Crafters includes 2 transmitters of your choice, you can either receive LiftMaster transmitters or you can choose the Estate Swing transmitters. When you choose the Estate Swing transmitters you will receive an addition receiver. A couple positives of the Estate Swing transmitters is that we have successfully tested them up to ranges of 1400 feet, they are less expensive than the LiftMaster transmitters, and you will be able to use the Estate Swing wireless key pads as well. Gate Crafters was started in 2002 with the goal of providing our customers with high quality gate openers. Our experts know gate opener inside and out and will be able to answer any questions you may have. We have technical support available 7 days a week from 9 am to 9 pm, eastern time. So please give us a call, send us an email, or use our live chat on our website, we are more welcome to answer any question you may have.” |
| "I bought my LiftMaster/Chamberlain LA412 in April 2013. I have waited a year to write about it because I wanted to be sure it was a good buy. I couldn't be happier! Installation took me just a couple hours because my gate and posts were already in place. I highly recommend reading the manual from front to back in a comfortable chair before starting. It helped to highlight instructions and pages that were specific to my gate. The gate works perfectly and quietly, every time. The solar charge has lasted me more than 40 openings and closings in a single day, and I'm sure it would go many more if I ever had the need. If you have sun, solar is the way to go!" -Scott A. from Riverside, CA
"I was very impressed by the quality of the the gate construction and hinges. Equally, installation of the LiftMaster opener was clean and straightforward. After the posts were set, the entire installation took about a half day with the help of a friend. My wife loves it… no more getting in an out of the car! Thanks."
-Greg P. from Alpine, CA
"We bought this gate opener system (LiftMaster / Chamberlain LA-412 Single Swing Solar Gate Opener with solar panel - with Standard Box) in September. It took me so long to install the system because I hurt my back at work. I had my friend help me install the system. I had to install the solar panel about 250 ft away from the gate. I used 12 gauge stranded copper wire. I installed push buttons (door bell buttons) for visitors and emergency personal. The installation was easier than I thought it was going to be." -Raina D. from Washington
Please send them to Testimonials@GateCrafters.com. |
|
Manual: LiftMaster LA412UL Installation Manual
