The Viking R6 Solar Swing Gate Operator is capable of handling gates up to 700 lbs. and 14 ft. long. With its efficient drivetrain, built in solar regulator, VFlex control board and Viking Solar Power Management Systems; the R6S Gate Operator is the ideal choice for any solar residential applications.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, and others.
- Weight and length: Up to 14 ft. in length or 700 lbs. per leaf
- Max degree of opening: 120 degrees
- Gate Post or Column size (pull to open): Gate Post must have a maximum of 3.00" OD pipe.
- Push to Open: No - "Last Open" Option, opens the gate automatically when battery backup voltage is critically low.
- Solar Compatible: Yes (solar panel purchased separately)
- Solar Power Supply: 12VDC
- Battery Voltage: 12V
- Battery Capacity: 35Ah (purchased separately)
- Power Wire Specification: 12 gauge wire (purchased separately).
- Operating Temperature: -4°F up to +160°F
- Warranty: 5 year manufacturer warranty
*Solar Panels and Batteries not included*
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.

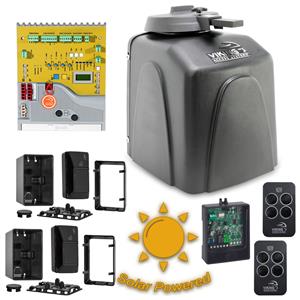

Viking R6 Residential Solar Single Swing Gate Opener
The R6 Solar Swing Gate Operator is perfect for applications where A/C power is not available or economical. The controller has its very own 12 volt power management system to use its solar regulators to its fullest potential. The V-Flex Solar will allow for soft stop and soft start for smooth and accurate operation. The chassis comes with spacious room, enough to fit a 35 amp hour battery without the need to purchase a separate enclosure.
The R6 Solar Swing Gate Operator requires a high-performance 40W Solar Panel. Compatible with Solar Panels ranging from 40W to 90W only.
(Each operator requires its own power source/solar panels)
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Lightning strike protection
- Built-in voltmeter
- Lightning strike protection
- Multiple power options
- On-board display
|
- UL325 compliant
- Two monitoring inputs with up to 4 devices per input
- Adjustable speed control
- Anti-tailgating feature
|
- Fail secure mode
- Fail safe mode
- Manual release - mechanical
- Built-in 3A solar charger
|
- Maximum Gate Capacity: 14 ft. at 700 lbs.
- UL 325 Classification: Class I
- Operating Voltage: 24VDC
- Main Power Source: SOLAR 12VDC
- Accessory Power: 24VDC - 750mA
- Battery Voltage: 12V
- Battery Capacity: 35Ah
- Power Consumption - Sleep: 19mA
- Motor Current (Typical): 4.0A
- Operating Temperature: -4°F (-20°C) to 160°F (71°C)
- Opening Angle: 120°
- Gate Speed: 13-16 sec./90°

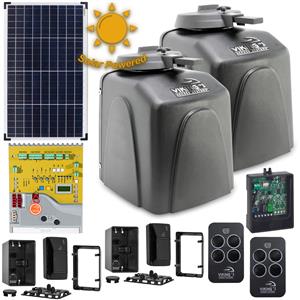

Estate Swing Kit
- (2) Viking R6 Solar Operator
- (1) Estate Swing 433ESREC Receiver
- (2) Estate Swing T18-ES Transmitters
- (1) Viking FA-XP30-10K Photocell
- (2) Viking FA-XP30AC Photocell Conduit Adapters
|
Viking FAAC Kit
- (2) Viking R6 Solar Operator
- (1) Viking FA-XT4RC Receiver
- (2) Viking FA-XT4RC Transmitters
- (1) Viking FA-XP30-10K Photocell
- (2) Viking FA-XP30AC Photocell Conduit Adapters
|
LiftMaster Kit
- (2) Viking R6 Solar Operator
- (1) LiftMaster 850LM Receiver
- (2) LiftMaster 811LMX Transmitter
- (1) Viking FA-XP30-10K Photocell
- (2) Viking FA-XP30AC Photocell Conduit Adapters
|
*Solar Panels and Batteries not included*
Disclaimer: The "Operator Only" option does not include accessories. Please be advised that if you select "Operator Only," you will receive only the operator.
 For over a decade, Gate Crafters has been the leading online retailer of gate openers and accessories. With our extensive technical and installation expertise, we proudly serve the DIY market. We believe that every customer deserves the chance to take pride in their projects, whether they are installing or troubleshooting their gate openers. Everyone should have access to high-quality products without the need of a professional. At Gate Crafters, we empower you to install with confidence by offering access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to tackle your gate opener system yourself, you can save thousands of dollars over its lifespan while gaining valuable knowledge about your installation and how the system operates. This understanding will not only make troubleshooting easier, but also enable you to perform routine maintenance with confidence in the future. |
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Manual: R6 Solar Installation Instructions
Manual: R6 Solar Spec Sheet
Manual: Viking Limited Warranty
QB ID: VA-R6NXSLR-DUAL
