The X390 Swing Gate Operator has a compact design that is perfect for limited spaces. It features an adjustable timer, built-in battery backup for 800 cycles, and an LCD display for diagnostics, while supporting up to 600 lbs. for 14-foot gates.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, and others.
- Weight and length: 14 ft. at 600 lbs. per leaf
- Max degree of opening: 120 degrees
- Gate Post or Column size (pull to open): 3", 4" or 6" square post
- Push to Open: Yes
- Solar Compatible: Yes (purchased separately)
- Power: 120/240 VAC Single Phase
- Power Wire Specification: 10 gauge wire (purchased separately). Maximum distance of 1,000 ft.
- Operating Temperature: -20°F up to +131°F
- Warranty: 3 year manufacturer warranty
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Viking X390 Dual Swing Gate Opener
The Viking X390 Swing Gate Operator features adjustable timer for automatic closure, high efficiency power supply, a built-in three push button station, built-in battery backup capable of 800 cycles in case of power failure, and on-board lightning protection. The X390 is powered by the V-Flex control board, including speed control and diagnostic LCD display. This aesthetic operator is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. This operator can be mounted directly to a column, making it a very popular option for homeowners that do not have the space for a pad mounted gate opener. The X390 has UL 325 and 991 safety listings.
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Adaptive motor control
- Built-in thermostat controlled heater
- Built-in voltmeter
- Lightning strike protection
- Multiple power options
- True battery back-up
|
- UL325 compliant
- Two monitoring inputs with up to 4 devices per input
- Adjustable speed control
- Anti-tailgating feature
- Fail secure mode
- Large box option
|
- Manual release - Mechanical
- Multiple power outage options
- Two 4Ah batteries included
- Positive Stope Included
- Pre-wired 10’ motor cable
|
- Maximum Gate Capacity: 14 ft. at 600 lbs. per leaf
- UL 325 Classification: Class I, II, III, IV
- Duty Cycle: 100%
- Operating Voltage: 24VDC
- Voltage Current Specs: 120VAC - 1.5A or 240VAC - 1.0 (each motor)
- Main Power Frequency: 50Hz / 60Hz
- Main Power Fuse: 4A Timed
- Alternative Power Source: 24VAC / VDC (60VA) or Solar
- Accessory Power: 24VDC - 750mA
- Power Consumption - Sleep: 34mA
- Motor Current (Typical): 2.0A
- Operating Temperature: -20°F (-28°C) to 131°F (55°C)
- Opening Angle: 120°
- Gate Speed: 10-13 sec./90°
- Battery Backup: 400 Continuous Cycles
Estate Swing Kit
- (2) Viking X390 Operator
- (1) Viking ECU Dual
- (1) Estate Swing 433ESREC Receiver
- (2) Estate Swing T18-ES Transmitters
- (1) Viking FA-XP30-10K Photocell
- (2) Viking FA-XP30AC Photocell Conduit Adapters
- (1) Viking DJBK Junction Box
- (1) Viking VA-CB16 6 Conductor Cable
|
Viking FAAC Kit
- (2) Viking X390 Operator
- (1) Viking ECU Dual
- (1) Viking FA-XT4RC Receiver
- (2) Viking FA-XT4RC Transmitters
- (1) Viking FA-XP30-10K Photocell
- (2) Viking FA-XP30AC Photocell Conduit Adapters
- (1) Viking DJBK Junction Box
- (1) Viking VA-CB16 6 Conductor Cable
|

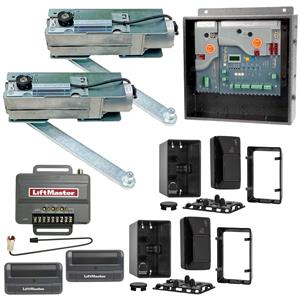

LiftMaster Kit
- (1) Viking X390 Operator
- (1) Viking ECU Dual
- (1) LiftMaster 850LM Receiver
- (2) LiftMaster 811LMX Transmitter
- (1) Viking FA-XP30-10K Photocell
- (2) Viking FA-XP30AC Photocell Conduit Adapters
- (1) Viking DJBK Junction Box
- (1) Viking VA-CB16 6 Conductor Cable
|
Disclaimer: The "Operator Only" option does not include accessories. Please be advised that if you select "Operator Only," you will receive only the operator.
 For over a decade, Gate Crafters has been the leading online retailer of gate openers and accessories. With our extensive technical and installation expertise, we proudly serve the DIY market. We believe that every customer deserves the chance to take pride in their projects, whether they are installing or troubleshooting their gate openers. Everyone should have access to high-quality products without the need of a professional. At Gate Crafters, we empower you to install with confidence by offering access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to tackle your gate opener system yourself, you can save thousands of dollars over its lifespan while gaining valuable knowledge about your installation and how the system operates. This understanding will not only make troubleshooting easier, but also enable you to perform routine maintenance with confidence in the future. |
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Manual: X390 Installation Instructions
Manual: X390 Spec Sheet
Manual: Viking Limited Warranty
