Viking X390 Single Swing Gate Operator - Viking Operator and Accessories Kit + 2 Free Remotes

The X390 Swing Gate Operator has a compact design that is perfect for limited spaces. It features an adjustable timer, built-in battery backup for 800 cycles, and an LCD display for diagnostics, while supporting up to 600 lbs. for 14-foot gates.

• Gate Materials: Wood, Steel, Aluminum, Vinyl, and others.
• Weight and length: 14 ft. at 600 lbs.
• Max degree of opening: 120 degrees
• Gate Post or Column size (pull to open): 3", 4" or 6" square post
• Push to Open: Yes
• Solar Compatible: Yes (purchased separately)
• Power: 120/240 VAC Single Phase
• Power Wire Specification: 10 gauge wire (purchased separately). Maximum distance of 1,000 ft.
• Operating Temperature: -20°F up to +131°F
• Warranty: 3 year manufacturer warranty

 Viking X390 Single Swing Gate Opener

The Viking X390 Swing Gate Operator features adjustable timer for automatic closure, high efficiency power supply, a built-in three push button station, built-in battery backup capable of 800 cycles in case of power failure, and on-board lightning protection. The X390 is powered by the V-Flex control board, including speed control and diagnostic LCD display. This aesthetic operator is solar efficient and ready to be powered with  low voltage wiring, allowing versatility of installations. This operator can be mounted directly to a column, making it a very popular option for homeowners that do not have the space for a pad mounted gate opener. The X390 has UL 325 and 991 safety listings.

• Maximum Gate Capacity: 14 ft. at 600 lbs.
• UL 325 Classification: Class I, II, III, IV
• Duty Cycle: 100%
• Operating Voltage: 24VDC
• Voltage Current Specs: 120VAC - 1.5A or 240VAC - 1.0 (each motor)
• Main Power Frequency: 50Hz / 60Hz
• Main Power Fuse: 4A Timed
• Alternative Power Source: 24VAC / VDC (60VA) or Solar
• Accessory Power: 24VDC - 750mA
• Power Consumption - Sleep: 34mA
• Motor Current (Typical): 2.0A
• Operating Temperature: -20°F (-28°C) to 131°F (55°C)
• Opening Angle: 120°
• Gate Speed: 10-13 sec./90°
• Battery Backup: 400 Continuous Cycles

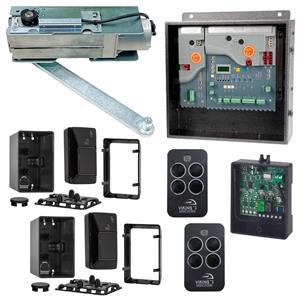

Operator and Parts

• (1) Viking X390 Swing Gate Operator
• (1) Viking ECU Single

Accessories (brand is based on kit option selection)

• (1) 433 Mhz Receiver (LiftMaster is 315Mhz)
• (2) 433 Mhz RC Transmitter (LiftMaster is 315Mhz)
• (1) Photocell 10K Resistor
• (2) Photocell Adapter

Depending on your chosen option - Viking FAAC, LiftMaster, or Estate Swing - you will receive accessories from the corresponding brand. For example, if you select the option Estate Swing 433 MHz + 2 Free Remotes, you will receive an Estate Swing receiver, transmitter, photocell and adapter.

Disclaimer: The "Operator Only" option does not include accessories. Please be advised that if you select "Operator Only," you will receive only the operator.
