Viking H10 Single Slide Gate Operator - Viking Operator and Accessories Kit + 2 Free Remotes

The Viking H10 Slide Gate Operator supports gates up to 2200 lbs. and 75 feet long, featuring the V-Flex control board with an LCD display and a removable power supply box. With its powerful 1 HP motor and a built-in heater, this operator is ideal for both residential and high-traffic properties.

• Gate Materials: Wood, Steel, Aluminum, Vinyl, and others.
• Weight and length: 75 ft. at 2200 lbs.
• Gate Post or Column size (pull to open): Gate Post must have a maximum of 3.00" OD pipe.
• Solar Compatible: Yes (purchased separately)
• Power: 120/240 VAC Single Phase
• Power Wire Specification: 10 gauge wire (purchased separately) Maximum distance of 400 ft.
• Operating Temperature: -20°F up to +160°F
• Warranty: 5 year manufacturer warranty

 Viking H10 Single Slide Gate Opener

The H10 Slide Gate Operator features the V-Flex control board with an on-board diagnostics LCD display and a removable power supply box allowing for a low voltage wiring option. The new chassis design provides easy viewing of the controls and integrated post-mount provisions. Featuring a true1 HP motor that increases the gate capacity of up to 2200 lbs. The H10 includes simple push-button digital limits setup, convenient access to the switch for manual release, Viking’s true battery backup system and a built-in heater, making this operator an excellent choice for both your residential and high traffic properties.

• Maximum Gate Capacity: 75 ft. at 2200 lbs.
• UL 325 Classification: Class I, II, III, IV
• Duty Cycle: 100%
• Operating Voltage: 24VDC
• Voltage Current Specs: 120VAC - 3.0A or 240VAC - 1.5A
• Main Power Frequency: 50Hz / 60Hz
• Main Power Fuse: 4A Timed
• Alternative Power Source: 24VAC / VDC (60VA) or Solar
• Accessory Power: 24VDC - 750mA
• Power Consumption - Idle: 75mA
• Motor Current (Typical): 7.0A
• Operating Temperature: -20°F (-28°C) to 160°F (71°C)
• Gate Speed: 12 in. Per Second
• Battery Backup: 100 Continuous Cycles

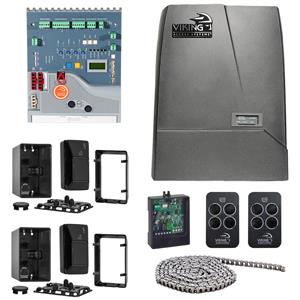

Operator and Parts

• (1) Viking H10 Slide Gate Operator
• (1) 25 in. #40 Nickel Plated Chain with Chain Bolts

Accessories (brand is based on kit option selection)

• (1) 433 Mhz Receiver (LiftMaster is 315Mhz)
• (2) 433 Mhz RC Transmitter (LiftMaster is 315Mhz)
• (2) Photocell 10K Resistor
• (4) Photocell Adapter

Depending on your chosen option - Viking FAAC, LiftMaster, or Estate Swing - you will receive accessories from the corresponding brand. For example, if you select the option Estate Swing 433 MHz + 2 Free Remotes, you will receive an Estate Swing receiver, transmitter, photocell and adapter.

Disclaimer: The "Operator Only" option does not include accessories. Please be advised that if you select "Operator Only," you will receive only the operator.

For over a decade, Gate Crafters has been the leading online retailer of gate openers and accessories. With our extensive technical and installation expertise, we proudly serve the DIY market. We believe that every customer deserves the chance to take pride in their projects, whether they are installing or troubleshooting their gate openers. Everyone should have access to high-quality products without the need of a professional. At Gate Crafters, we empower you to install with confidence by offering access to our trained technical staff seven days a week from 9 AM to 9 PM EST. By choosing to tackle your gate opener system yourself, you can save thousands of dollars over its lifespan while gaining valuable knowledge about your installation and how the system operates. This understanding will not only make troubleshooting easier, but also enable you to perform routine maintenance with confidence in the future.

Gate Crafters is the DIY factor. Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.     DIY Additions Top of Page Order specific customized accessory wiring instructions 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit. Free 24/7/365 Installation Support Free 7 day/week Technical Support Largest Number of Certified Techs in America Free assistance to find the right gate opener for your gate Free systems design assistance to match the right accessories to fit your needs. Extremely competitive pricing Free shipping on all accessories purchased with a gate opener We stock replacement parts Many brands of many types of accessories, enough to handle just about any operational situation you can imagine Gate Crafters has actual experience. We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.     Tools & Supplies for Installation Top of Page The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.     Product Media Top of Page
