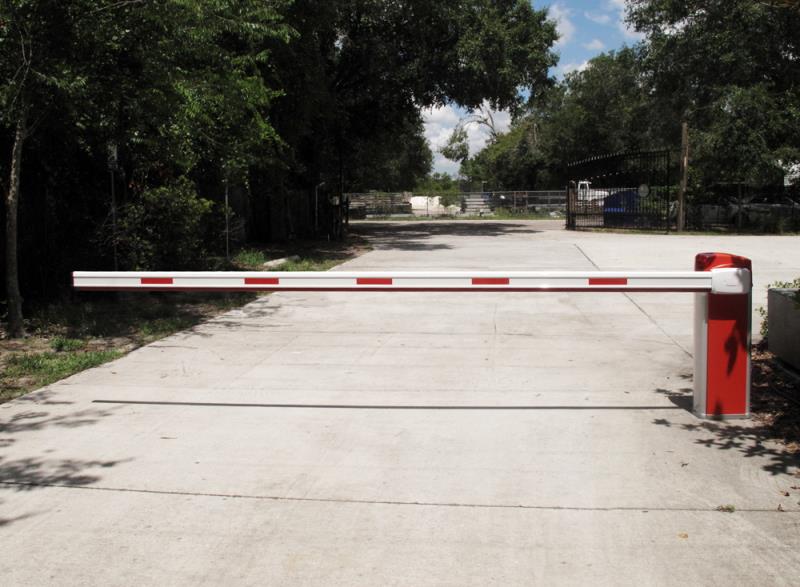

Universal Traffic Controls® Barrier Gate Operator and Boom - Left

The Universal Barrier Operator is the pinnacle of user friendly design.

The aluminum alloy housing is rust proof and weather resistant but also painted in classic red and silver. The colors are safety standards in terms of traffic control, a reminder for the motorists to stop and pay attention. The frame is strong enough to withstand the small dings and scrapes inevitable to appliances in a driving environment. The steel support that the beam arm attaches to is more than sturdy enough to withstand the pressures exerted on it on a daily basis. The steel support is also covered by a matte white plastic casing when fully assembled to maintain its superior aesthetics.

The Universal Barrier’s chassis is equipped with multiple safety lights, a feature not found in traditional barriers. The light strips along the front and back of the casing provide a constant source of illumination for your entranceway while the primary light on top blinks in coordination with the lowering or raising of the beam. This not only brings attention to anyone entering or exiting your facility but ensures that other motorists will be aware of the vehicle when passing it. This will greatly reduce the risk of collision on your premises.

Despite providing the ease and cost of a simpler model this barrier gate offers many of the same features as the high priced competitors. Secure inside the chassis are input terminals for photocell, Airwave switch, loop detector, back-up battery, toll gate system and output terminals for the primary lamp. All of these allow you, the owner, to tailor your barrier operator to your specific needs. In order to provide the customer with the greatest compatibility and reliability, we recommend products on the left of this page in the related items section to complete your entry control application.

• Low Voltage Motor: 110VAC 60HZ reduced to 24VDC for motor. 24VDC motors are more efficient than high voltage motors and do not require components that frequently need replacing such as large starting capacitors.
• Smooth Operation: Smooth mechanical soft start and stop operation.
• Warranty: 2 year manufacturer warranty
• Safe & Secure: Cover is key lock secured and it is equipped with a warning light and rubber bumper on the boom.

• 16 foot arm is able to be trimmed to size and raises in 2-4 Seconds
• Safety light strips and primary lamp provides warning for motorists and boom rubber bumper provides protection against vehicle damage.
• Functions on normally closed safety circuits to give added protection against safety device failure.
• Rust proof aluminum alloy housing with attractive powder coated finish
• Available back up battery for reliable operation

• Barrier Operator Body
• 16' Boom arm

• Installation Manual
• Manufacturer's 2 Year Warranty

The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.

• Please refer to manual for Tools Needed.

The thing that sets the Universal barrier apart is how user friendly and safety oriented it is. It runs on a low voltage system so there’s no risk of electrical danger when installing the operator or adding accessories. When adding accessories pretty much everything is compatible and they allow you to customize the operator to any need. For instance exit loops and cell phone receivers are great for quick access and they have a vast array of security accessories. Speaking of the security add ons, the Universal barrier operator has a unique advantage in that it functions on a normally closed circuit. This means that if you have a safety accessory, such as a shadow loop or photocell, if the accessory stops working the barrier operator won’t close. Most barrier operators use the normally open circuit. If those safety accessories fail in the open circuit the operator will keep operating and letting people in, and you’ll lose the control over access that the safety accessories provided.

The Universal operator also has three lighting systems, a safety measure far from common among barrier operators. Two light strips run down the side of the frame and the primary light is on the top. While the side light strips provide a bit of illumination, the primary lamp on top is the key safety feature. The light blinks on and off while the operator’s arm is in use and stays steady when not in use. The blinking light while in use is a safety feature required of barrier operators in most European countries with more stringent traffic and safety laws. The safety light draws attention to anyone coming or leaving which greatly reduces the risk of collisions on your property. The Universal operator even takes looks into account using the red and silver traffic color scheme as well as a sleek yet sturdy design.

GateCrafters.com is proud to sell the Universal Barrier Operator and offers a wide selection of accessories to tailor fit the product to your specific needs."
