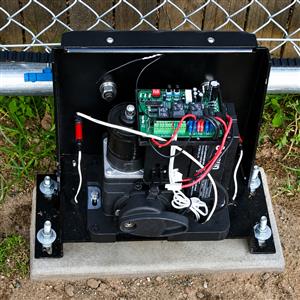

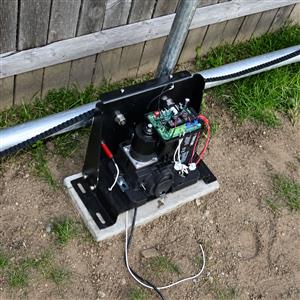

The Estate Swing E-SL 450BD Single Slide Gate Operator is a belt drive single slide gate opener meant for residential use only. It should be used on driveway gates in single home residential settings constructed of aluminum, steel, wood, or chain link. It uses 24V DC power, making it safe for end user installation and maintenance. Featuring a large motor and small housing the Estate Slide E-SL 450 Classic Sliding Gate Operator is perfect for discrete residential installation without giving up any power.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others
- Weight and length: Up to 14' in length and 450 lbs.
- Operating Temperature: -4℉ to +124℉
- Solar Compatible: No
- Power: 24V AC / 24V DC
- Warranty: 1 year electrical, 5 year component limited warranty
- Exclusive Design: Belt drive operation offers easy installation of a chain drive opener and quiet maintenance free operation of a rack and pinion. Only belt drive on the market.
GateCrafters.com offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Estate Swing E-SL 450BD Single Slide Gate Operator The Estate Swing E-SL 450BD is a transformer powered DIY slide gate opener with built in battery. What does this mean to you? These gate openers run directly off the provided 24V batteries with a trickle charge from the provided AC transformer that plugs into a standard household outlet giving you maximum power and reliability without the need for an electrician The advantage of this is three-fold: one, the AC transformer allowed for trickle charging from up to 1000ft away as AC power travels farther and more reliable than DC power; two, When the gate is in operation maximum power is delivered to the motor and voltage drops from long run of wire is eliminated. Three, during times of power outages the unit will keep running off the charged back-up battery. The opener features magnetic limit switching. The gate has a magnet attached to it to trigger the opened and closed stopping point of the gate. Mechanical limits can break or wear out over time, the magnet system has no contact so there is nothing to wear down, just reliable stopping every time. It also offers one touch EZ programming so your gate opener can be programmed by pressing one button. The control board is built to be inherently intelligent and learns the opening and closing times automatically. There are no manual adjustments on the opener need to be made! The Estate Slide E-SL 450BD is compatible with Estate Swing Extended Range Remotes. These remotes are 433 MHz and work consistently at a 300 foot range. The Estate Swing Extended Range Remotes are compatible with the Estate Swing Slide 450 model through its matching built-in receiver. The Estate Swing Extended Range Remote has 4 buttons, so if you have two Estate Slide E-SL 450 gates on your property - you'll be able to control both gates with one transmitter. This combination of units is perfect because you'll have optimal access and the safety features you seek.
GateCrafters.com has the resources you need.
How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Limit Magnets
- Built in Receiver
- Locked Manual Release
- One Touch Programming
- Legendary Reliability
- Built in Control Board
- 24VAC Transformer included
|
- Gear and Idler safety cover included
- Automatic Entrapment/Obstruction Sensor
- Terminals for entry/exiting accessories and safety devices
- Auto-closing can be turned on or off, time delay is adjustable
- Additional 44Mhz Deliberate Attempt Transmitter (with 300 ft. range)
- Belt drive operation (installs like a chain drive, performs like a rack and pinion)
|
|
.jpg)
- 16 ft. of Internally Steel Belted, UV Protected, Drive Belt
- 10 Year Prorated Belt Warranty
- Brackets for Mounting Belt to Gate
- Additional 44Mhz Deliberate Attempt Transmitter
|
- Manual Release Key
- Limit Trigger Magnets and Belt Brackets
- 24V AC Transformer
- Fully Assembled Operator, Motor and Chassis with Control Board and Built in Receiver
|
- Gear and Idler Roller Guide Safety Cover
- Instruction Manual
- Warning Signs
- 1 Year Electrical Warranty, 5 Year Mechanical Warranty
|
Estate Swing Gate Openers are specifically designed for DIY customers. Featuring easy bolt-on brackets and straightforward setback templates, Estate Swing allows any homeowner to effortlessly install and automate their gate. With just basic household tools required, no special expertise or building code approval is necessary*. |
For over a decade, Gate Crafters has been the premier source for Estate Swing openers and accessories, offering technical and installation support seven days a week from 9 AM to 9 PM EST. Our extensive experience ensures you receive the best guidance possible. By choosing to install your gate opener system yourself, you can save thousands of dollars over its lifespan. You'll also gain valuable knowledge about your installation and its operation, making troubleshooting and routine maintenance much simpler in the future. *Disclaimer: At this time, we do not have information regarding any necessary building code inspections for the installation of Estate Swing gate openers. Therefore, we cannot ensure that all counties will not require prior approval.
| GateCrafters.com is the DIY factor.
GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
GateCrafters.com has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- Power Drill
- Crescent Wrench
- Metal Drill Bits
- Mini Screwdriver Set
- Standard Screwdriver Set
- Tape Measure
- Level
- Wire Strippers
- C-Clamps
- 16 Gauge Low Voltage Wire (enough for distance from gate opener to outlet)
- Appropriate nuts, bolts, washers, concrete anchors, etc. for mounting (bolts, washers, and nuts are needed for belt bracket to gate) (anchors for gate opener to mounting pad)
Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Words from Senior Application Engineer Anthony Geato | Top of Page |
"What makes the E-SL 450BD gate opener different from all others is the use of a belt drive system; it is a true leap forward in gate opener quality. In the past there were two choices: chain drive or rack and pinion. Chain drive was great for an easy flexible installation, but as we all know with bicycle chains, they are greasy, noisy and frequently come off of their gears. Rack and pinion makes for clean, quiet, maintenance free operation. However, the installation procedure requires a gate ready to mount a level, stable rack along the entire bottom. Belt is the best of both worlds! The belt attaches to the provided brackets on each end of the gate. It runs over an idler, under the mechanized gear and over another idler. That's it. A simple installation just like chain. However, unlike chain, the belt makes no noise, requires no grease, and does not become dislodged from its gears.
The belt itself is built to last. It comes covered standard with a 10 year prorated warranty. Estate Swing can offer this long warranty on the belt due to it being steel belted internally. Much like steel belted radial tires, which have been the standard in tire construction since the early 70's, this belt has a mesh layer of woven steel in between the two rubberized outer layers. The durability of steel belted design is achieved mainly from the way the steel mesh works to increase the rigidity of the belt. This helps to spread the load and friction over a greater surface. Also the outer layers have UV protection infused in the material to prevent cracking and degrading even from the strongest sun zones.
I stand behind the values of GateCrafters.com and would like to invite you to give us a try. You will find the service, knowledge and enthusiasm can not be beat; and the price will amaze you as well." |
|
