The LiftMaster Elite CSW200UL Single Swing Gate Operator is designed for heavy traffic and is suitable for applications such as large gated communities, residential developments, commercial complexes, and private estates.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others
- Weight and length:
• Model CSW200501UL 1/2 HP: Up to 20' in length or 600 lbs.
• Model CSW200101UL 1 HP: Up to 22' in length or 1000 lbs.
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Max degree of opening: 115 degrees
- Mounting Options: Mounted on a concrete pad/post mounting plate (not included)
- Push to Open: No
- Solar Compatible: No
- Power:
• Model CSW200501UL 1/2 HP: 120 Vac, 6 Amps (12 Amps including accessory outlets)
• Model CSW200101UL 1 HP: 120 Vac, 12 Amps (18 Amps including accessory outlets)
- Power Wire Specification: 10, 12, 14 Gauge Wire (sold separately).
- Warranty: LiftMaster 7 Year residential, 5 Year Commercial Limited Warranty
LiftMaster recommends professional installation and provides direct support to its recognized dealer network. When customers purchase LiftMaster products through Gate Crafters, they receive seven-day installation, technical, and warranty support from us. We also assist with advanced support and warranty replacement directly with LiftMaster.
Gate Crafters offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
LiftMaster Elite CSW200UL Single Swing Commercial Gate Operator Kit The CSW200UL opener is designed for professional installation only. Due to the nature of the 120VAC power, it is essential to have a trained professional, such as a certified electrician, install the gate opener. Gate Crafters does not consider the Elite series to be a DIY product.
The LiftMaster Elite CSW200UL Single Swing Gate Operator is engineered for heavy-duty performance, making it ideal for high-traffic areas such as gated communities, commercial complexes, and private estates. Featuring a continuous-duty high-temperature motor, this operator is designed to withstand rigorous usage, while the Legacy Elite Heavy-Duty Commercial Gear-Driven Transmission ensures exceptional reliability. With surge suppression technology, it provides protection against industrial surges and lightning strikes from up to 50 feet away. Backed by a 5-year commercial warranty and a 7-year residential warranty, it guarantees long-lasting performance and peace of mind. Equipped with myQ® Technology, the CSW200UL allows users to securely control and monitor their gate operator from anywhere. Its Wireless Dual-Gate Communication feature synchronizes the opening and closing of gates, eliminating the need for expensive driveway trenching. Additionally, the Synchronized Close function ensures that both gates close simultaneously, enhancing convenience and efficiency for users. Safety is a top priority with the CSW200UL, which includes Security+ 2.0® technology that protects property access through an encrypted signal, extending the range of remote controls. The system is equipped with an Emergency Disconnect for manual operation, an Inherent Reversing Sensor to detect obstructions, and Quick Close and Anti-Tailgate features to prevent unauthorized access. With a robust commercial-grade design and advanced safety mechanisms, the CSW200UL is built to provide secure and reliable access control for any property.
Gate Crafters has the resources you need.
How do you use your gate opener system once you get it? Gate Crafters is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
Reliable
- Legacy Elite Heavy-Duty Commercial Gear-Driven Transmission provides unsurpassed reliability.
- Surge Suppression provides industrial surge and lightning protection against strikes up to 50 feet away.
- Warranty: 5 years commercial, 7 years residential.
Smart
- myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
- Wireless Dual-Gate Communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs.
- Synchronized Close simultaneously closes gates.
Safe and Secure
- Security+ 2.0® safeguards access to property with an encrypted signal to offer extended range with Security+2.0.
- Emergency Disconnect: simple-to-use release handle allows gate to be operated manually and maintain limit position once reengaged.
- Inherent Reversing Sensor detects obstructions and reverses gate when closing or stops/reverses the gate when opening.
- Quick Close And Anti-Tailgate quickly secure property, preventing unauthorized access.
- UL® Listed gate operators with monitored safety entrapment protection devices.
Included Accessories:
- LMRRUL Monitored Retro Reflective Photo Eye enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.
Mechanics
- Continuous-Duty Motor rated for high-cycle, high-temperature applications (available in 1/2 and 1 HP)
- Wormgear Reduction: 2 commercial oil-bath gearboxes providing 900:1 wormgear reduction
Power
- 115V Single-Phase
- Accessory Power: 24VDC 500mA output
- Optional Kit (3PHCONV) to convert an input voltage of 208/240/460/575VAC to an output voltage of 115VAC
Commercial Grade Design
- Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
- Cover: high-density, 2-piece UV-resistant polyethylene cover
- UL® Usage Classification: I, II, III and IV operator weight: 175 lbs.
Dimensions for CSW200501UL
- Height: 28.04”
- Width: 16.37”
- Depth: 19.59”
Dimensions for CSW200101UL
- Height: 27.99”
- Width: 15.20”
- Depth: 24.75”
Temperature Specifications
- Without Heater: -4°F (-20°C ) to 140°F (60°C)
- With Optional Heater: (HTRNB) -40°F (-40°C ) to 140°F (60°C)
Gate Travel Speed
- Opens 90° in 13-15 seconds
Standard Features
- Pre-Motion Warning Alarm activates on-board alarm 3 seconds prior to gate motion
- Bi-Part Delay monitors and adjusts speed and position of each wing to ensure primary gate closes last
- Mechanical Limit System maintains accurate gate position throughout gate travel, even after using manual disconnect
- Monitored Safety Inputs 3 main board, 3 expansion board
- Security+ 2.0® Up to 50 remote controls (unlimited with 811lm/813lm).
- Led Diagnostic Display simplifies installation and troubleshooting
- Programmable Auxiliary Relays make adding additional features easy
HomeLink® Compatible
- Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.
- HomeLink® is a registered trademark of Gentex Corporation.
.jpg)

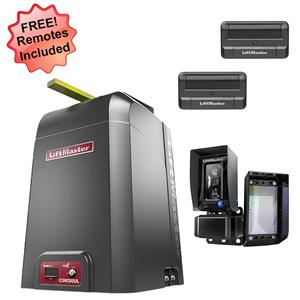

- Pad Mount Gate Operator
- Control Board
- Arm Assembly
- Photo Eye
|
- (2) Free LiftMaster Remotes
- (2) Keys
- Hardware Bag
|
- Instruction Manual
- (2) Warning Signs
- Warranty Card
|
Gate Crafters is the DIY factor.
Gate Crafters further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- 1/2" wrench for cover screw 5/16"
- 3/4" wrench for 1/2" concrete anchors
- Screwdrivers (Philips head and flat head)
- Cable cutters and strippers
Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Gate Crafters has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
LiftMaster Elite Opener (older model)
Send us your installation images! Please email them to customerphotos@gatecrafters.com
Manual: LiftMaster CSW200UL Installation Manual
Manual: Elite CSW200UL / SL3000UL / SL3000UL Dual Gate Crafters Timer
