 | Gate Crafters Estate Swing Exclusive DIY Kit Package Includes: Receiver, (2) Remotes, Transformer, and Adjustable Bolt On Brackets $165.88 Value!
|
|
The Estate Swing Heavy Duty Solar gate opener (E-S 1000H) is easy to use and easy to install. Openers in this solar series have lowest standby draw of any DIY solar gate opener control board on the market today (under 10mA). Considered to be a heavy duty single gate opener, it has a 500mm stroke length and was designed to accommodate heavy or long gates. Yet, it is still gentle enough for lightweight gates.
- Gate Materials: Wood, Steel, Aluminum, Vinyl, Chain Link, and others
- Weight and length: Up to 16' in length or 600 lbs.
- Operating Temperature: 0℉ to 110℉
- Max degree of opening: 110°
- Gate Post or Column size (pull to open): Max 6" x 6" post or gate mounted 3" from the rear face of a column.
- Push to Open: Yes (no additional bracket needed) - setback above does not apply to push to open.
- Solar Compatible: Yes
- Power:
- A/C Charging Option: Low Voltage Transformer (battery and 18 gauge low voltage not included, up to 1000' run for low voltage wire from transformer to battery)
- Solar Option: Group 24 Battery (not included) charged by 5/10 Watt Solar panel (included based on options)
- Power Wire Specification: 16 gauge wire (purchased separately). Length is determined by distance between transformer power supply and the control box.
- Warranty: 1 year electrical, 5 year component limited warranty
|
 |
GateCrafters.com offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Estate Swing E-S 1000 Heavy Duty Solar Swing Gate Opener | With the Estate Swing Solar series, your residential gate can be automated by tapping into the power of the sun. Estate Swing gate openers are designed to be easy to install for the average handyman. This unit comes standard with the kit items needed to automate your gate, including mounting brackets (hardware to affix brackets to the gate and column are not included). The Estate Swing 1000H includes a generous sized control box you can house a larger Group size 24 battery than most gate operating systems. A larger Group size 24 battery means more cycles during a time of power outages or low sunlight (if solar is being used). A fully charged Group size 24 deep cycle battery will provide up to 300 cycles or an average of 30 days usage on a basic system before requiring a recharge. Group size 24 battery is not included. The Estate Swing Solar series is designed with some of the same great features as the Estate Swing classic line but made with 12 volt power to enable the solar option. GateCrafters.com even provides solar panels (5 watt or 10 watt) within the DIY kit to make your purchasing choice hassle-free. The Estate Swing Solar series can be used with higher wattage panels with minimal modifications. Capable of adapting to extreme solar applications, you can match any size 12 volt battery (box fits max group size 24) and any wattage solar panel* to the system. * Solar panels must be matched up to compatible solar charger. Estate Swing gate opener features for DIY installers include: no learning procedure, magnetic limit switches, and fully adjustable brackets. Estate Swing Solar series has no learning procedure; because of its smart usage it runs from one limit to the other without having to learn the procedure to the processor. Meanwhile the magnetic limit switches are adjustable on the bottom of the arm; simply slide them to where you need them. The included fully adjustable brackets can be made to fit any situations. Installers have alternate parts for gate openers on hand; homeowners do not; that is why these brackets are designed to fit all needs (including push to open). This solar gate opener kit comes along with Estate Swing's unique user directed instruction manual. As the first user driven updateable manual for continuous improvement of installation ease, maintenance and troubleshooting updates, Estate Swing manuals are designed for the DIY installer. Gatecrafters.com knows that during your install, you might seek assistance. This is why we offer free seven days a week technical support! All Estate Swings are built to the highest standards worldwide. Each unit is put through rigorous quality control testing on each component. The Estate Swing E-S 1000H meets and exceeds UL325 standards for anti-crushing safety. The Estate Swing Solar Series - How Does it Work?

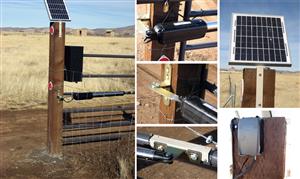

The solar panel absorbs solar energy and charges the 12 volt battery (not included). The gate opener then runs off this charged battery. Your solar panel can be installed up to 250 feet away from the control box (and charge controller). If you are using the A/C charging option, instead of solar, your transformer can be up to 1000' away from the gate opener control box. For both of the above options the battery is maintained directly by either the solar panel or the transformer. One major benefit of this Estate Swing Solar series is that it only has one power supply connecting to the control board. Fewer wires means it's simpler to install and simpler to use. Fewer wires also means better protection against power surges. Reduced wire and the lowest standby draw on the DIY market makes the Estate Swing Solar series truly stand apart. |
GateCrafters.com has the resources you need.
How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- No Learning Procedure: This is one of the most desirable features of this intelligent control board. Once everything is wired in you can just run your gate opener. All other openers have to go through a learning procedure to know how long to run for and other details. No hassles here.
- Time Tested Design: The Classic series of the Estate Swing is the identical design of the first electro-mechanical gate opener. This design has been used for over 30 years and is still in use on thousands of homes and businesses around the globe. This is the design that started it all and made people confident that electro-mechanical could be more reliable, efficient and cost effective than hydraulic gate openers.
- Easy Access Adjustable Magnetic Limit Switches: There are many pluses to the limit switches on this unit. They are easy to adjust and access. They are on the bottom of the exterior of the arm, simply slide them to the location needed and tighten down a screw. Secondly, both the open and closed point is adjustable; this gives you more flexibility of stopping points after the brackets are bolted into place. Lastly they are magnetic so there are no components to wear out or break from contact.
- Adjustable Run Time/Soft Stop: One of the parameters you can designate for this opener is a run time. The advantage of this is, again, it is not a learned procedure, but something you input manually as an adjustment for your soft stop. The purpose is to give an option for where you want soft stop to begin. If you make the run time the same as the actual run time from limit to limit it will slow down half way; as you extend the run time past that time the soft stop will become shorter and give you a faster opening time. The board makes it easy to set, it has a counter on it telling you how many seconds it takes to go from open to close - then you simply put that number or a number of your choosing to delay the slow down.
- Easy to Read Digital Display Notifications: The display will indicate when it is sending poser to the electric lock, when it is open, when it is in auto-reclose pause countdown, when it is closing and visually counting the run time. All this info makes it easy for the Do-It-Yourselfer to understand their gate opener clearer and look like a professional installer.
- Closed Position Lock Release: The Estate Swing classic is the ONLY gate opener on the market to release your solenoid gate lock for a second time after the closed limit is reached. Why is this a plus? It shows true appreciation for customer feedback. For years the number one complaint from customers is the solenoid gate locks take too much force to lock back into place. And with the advent of soft stop this has become even more of an issue. The Estate Swing classic send a 1 second burst of power to the lock to allow the lock to re-latch electronically rather than through force.
- Obstruction Sensing Alarm: Safety has always been the top priority for Estate Swing. The classic now comes with an alarm to let you know when a problem has occurred. If the gate makes contact with an obstacle it will stop and back up for 3 second to clear the obstacle. If the gate is jammed on the obstacle making an obstruction happen 3 times in a row the system will shut down and an alarm will sound until the system is reset notifying anyone around the gate that there is a problem needing immediate attention.
- Low Draw Solar Board: The E-S 1000 series has the lowest standby draw of any DIY solar gate opener on the market today (under 10mA).
- Easily Adjustable Brackets: The brackets are set up to be user customized to fit any need configuration; push to open, pull to open, mounting on back of post, mounting on side of post, etc.
- Large Opening Arch Capabilities: The E-S 1000 has the ability to open gates up to 110 degrees, well beyond most other openers.
- All Weather Compatible: This arm can handle the cold, heat and everything in between.
- Highest Level of Safety: The Estate Swing E-S 1000 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-S 1000 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-S 1000 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-S 1000 will not operate, keeping your loved ones and assets safe. Gate openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
- Quick Manual Release: Every unit comes with a quick release pin for the gate side bracket. If there is a rare instance where the battery has gone dead and the gate opener will not actuate you can simply remove the pin and swing the arm and gate to the open position.
- Adjustable Performance Features: Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force, etc.
- 12 Volt Output Terminals: Convenient for accessories requiring power. i.e. locks, sensors, etc.
|
%20Banner.jpg)
|
Control Box
Control Board
Operator Arm (with power cable)
Manual Release Key |
Low Voltage Transformer (AC option only)
Receiver (included in control board)
433 MHz Transmitter
Adjustable Mounting Brackets (bolt on) |
Mounting Hardware
Instruction Manual
Public Warning Sign
Quick Color Check Wiring Diagram
Setback Cutout |
Estate Swing Gate Openers are specifically designed for DIY customers. Featuring easy bolt-on brackets and straightforward setback templates, Estate Swing allows any homeowner to effortlessly install and automate their gate. With just basic household tools required, no special expertise or building code approval is necessary*. |
For over a decade, Gate Crafters has been the premier source for Estate Swing openers and accessories, offering technical and installation support seven days a week from 9 AM to 9 PM EST. Our extensive experience ensures you receive the best guidance possible. By choosing to install your gate opener system yourself, you can save thousands of dollars over its lifespan. You'll also gain valuable knowledge about your installation and its operation, making troubleshooting and routine maintenance much simpler in the future. *Disclaimer: At this time, we do not have information regarding any necessary building code inspections for the installation of Estate Swing gate openers. Therefore, we cannot ensure that all counties will not require prior approval.
GateCrafters.com is the DIY factor.
GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
GateCrafters.com has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- Power Drill
- Crescent Wrench
- Flat Head Screwdriver
- Hacksaw
- C-Ring Pliers
- Phillips Head Screwdriver
- Tape Measure
- Level
- Wire Strippers
- C-Clamps
- 3/8", 1/4" and 5/16" Drill Bits
- Low Voltage Wire (depending on placement solar panel or transformer)
Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Words from Senior Application Engineer Anthony Geato | Top of Page |
"The Estate Swing Solar series gate opener is a great combination of the simplistic board of the Estate Swing Classic which has been so popular and the solar maintenance methods of the top solar gate openers. There have been many attempts at dual purpose gate openers, meaning low voltage trickle charge and solar combined into one gate opener unit. However we have found the gate openers that work best are the ones that are built for solar and the battery is transformer charged separate from the system if desired. I will explain:
The way the best solar gate openers work, including the Estate Swing Solar series, is that the gate opener board and motor run off of a battery only. All the charging is done directly to the battery. This is good because you can increase the size of your battery, you can increase the size of your solar panel, you can increase the size of the charge controller for faster charging or higher wattage solar panels; all leading to a more reliable gate opener system tailor made to your circumstances. Other gate opener systems have the solar panel feed the power it produces into the gate opener control board and the control board has a charge control built into it. The problem having the charge control built into the gate opener control board is it is a performance limiting factor. In order to increase battery size or solar panel size / wattage you have to match the right charge controller. If the charge controller that is built into the gate opener control board cannot handle the desired charging the system will not be capable of keeping up with your needs. For lesser used gate opener systems or systems in optimal sunlight this is ok, but if you have other plans like many access control devices, less than optimal solar conditions, etc. having the flexibility of external charging is a huge plus.
The other advantage of not running charging power through the gate opener control board is lightening protection. Having the low voltage lines from a transformer or solar panel leading directly to a battery instead of the gate opener control board creates a buffer that helps to protect against minor surges. We still recommend using lightning protection but if you choose not to, which we have seen many times over the years, your chances of having a surge mishap is decreased through this type of gate operator charging system.
Having a system that is this DIY ready as well as solar ready has been something we have been after for a while. The DIY aspect of this gate opener is the other component that I truly value. It has adjustable brackets making the mounting easy (we have a video showing how to do this by the way). There is no programming, just a few parameters to set. Other gate openers have sequences to follow to get the gate opener to "learn" how to operate for your particular gate. The main problem with having programming is no matter how easy you make the procedure there is still a procedure and you are not familiar with it. This is a carryover from the times when all gate openers were installed by professionals. Professionals learn the procedure after a few times and it is no big deal; but why would a DIYer want to learn something they are never going to use again. The Estate Swing Solar gate opener is designed to simply run from limit to limit and stop on them, wire it up, set a few parameters and off you go with a running gate (we also have a video for parameter setting).
Estate Swing and GateCrafters.com make a perfect match because of the commitment to customer service. Estate Swing's manufacturer works with members of our technical support staff offering direct training on the product line. This knowledge and know-how is available 7 days a week for support from 9 A.M to 9 P.M. Eastern Time and upon request 24 hours a day, 365 days a year even during holidays. This after-hours support allows for installation questions absolutely free. As the Senior Application Engineer for GateCrafters.com I know each customer will obtain the support they need at GateCrafters.com. I stand behind the values of GateCrafters.com and would like to invite you to give us a try. Our service, knowledge and enthusiasm have made us the number one seller of gate openers in the world." |
|
Manual: E-S 1000H Single Swing Manual
QB ID: E-S 1000H/PI B
|
|
