The Estate Swing E-S 1600 is a DIY constant duty low voltage gate opener designed with versatile mounting options. Use the E-S 1600 in a residential situation of up to 4 homes. This opener is compatible with the following gate materials Wood, Steel, Aluminum, Vinyl, Chain Link, and others.
- Weight and length: Up to 14' in length or 800 lbs.
- Operating Temperature: -4℉ to 131℉
- Max degree of opening: 110°
- Gate Post or Column size (pull to open): Max 6" x 6" post or gate mounted 3" from the rear face of a column.
- Push to Open: Yes (bracket supplied can be used either way) - setback above does not apply to push to open.
- Solar Compatible: No (must be within 72 feet of outlet)
- Power: Low Voltage Charging Transformer (included) and 24V Battery(Optional, Not included)
- Power Wire Specification: 16, 14, or 12 gauge wire (purchased separately). Length is determined by distance between transformer power supply and the control box.
- Warranty: 1 year electrical, 5 year component limited warranty
|
 |
GateCrafters.com offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Estate Swing E-S 1600 Single Swing Gate Opener | Estate Swing gate openers are designed to be easy to install for the average handyman. Every unit comes standard with everything needed to automate your gate, including mounting brackets (hardware to affix brackets to column are not included). Included is Estate Swing's unique user directed instruction manual. Estate Swing, being closely involved with its customers, has created the first user driven updateable manual for continuous improvement of installation ease, maintenance and trouble shooting updates. Gate Crafters also brings DIY projects to a new level of simplicity with our 7-day/week technical support and 24/7/365 scheduled installation support. All Estate Swings are built to the highest standards world wide. Each unit is put through rigorous quality control testing on each component, which are all made and assembled in one factory. The manufacturer is the largest (number one in sales and reputation) in the WORLD and meets or exceeds ISO 9000 regulations, which requires testing on 100% of the products being produced. The Estate Swing E-S 1600 is certified for and exceeds UL325 standards for anti-crushing safety. The Estate Swing E-S 1600 Single Opener is a low voltage system, eliminating the need to run 110 AC to your gate. Simply run low voltage wire to a household outlet within 200' of the operator The E-S 1600 and E-SC 1600 are commercial grade constant duty DIY gate openers, unique in grade for the DIY market. It is versatile, being used for either push or pull to open, and the safest on the market. The Estate Swing E-S 1600 is designed to be one of the safest gate openers available, perfect for families or individuals concerned with the welfare of others. The Estate Swing E-S 1600 Single Opener has features never before seen or new to economically priced openers. About the HomePro Series
The HomePro Series offers "Gate openers built to professional standards." The openers are capable of automating heavier gates with a constant duty, low voltage design and versatile mounting options. |
GateCrafters.com has the resources you need.
How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener.
|
- Opening/Closing Soft Stop: Opening/Closing Soft Stop is a feature in which the control board, during the easy set up process, learns where your opening and closing points are for the swing of the gate. Then during normal operation the gate operator automatically slows the motion of the gate to smoothly meet with the gate's destination point.
- Large 24V Motor: The motor of the E-S 1600 is one of the largest found on any residential gate opener. It is well equipped to handle gates up to 800 lbs., more weight than found in many heavily ornamented gates.
- Extended Setback: Most gate operators have a required setback for the rear pivot point on the post. This pivot point set back many times makes it difficult to mount on columns. The E-S 1600 has an extended setback, allowing it to be mounted to most columns or posts. PLUS custom mounting brackets are available for purchase, taking the custom work out of your project and putting the works in our hands.
- Large Opening Arch Capabilities: The E-S 1600 has the ability to open gates up to 100 degrees, well beyond most other openers.
- Advanced Gear System: The gear system is one of the most important parts of a gate opener; it influences power, control, reliability, and the life span of the motor. The E-S 1600 uses an advanced worm gear system cutting down on bearing wear and motor deterioration.
- All Weather Compatible: This arm can handle the cold, heat and everything in between.
- One Touch EZ Programming: The Estate Swing E-S 1600 can be programmed by simply pressing one button. The control board is built to be inherently intelligent and learns the open and closing limits automatically. There are no manual adjustments to be made!
- Highest Level of Safety: The Estate Swing E-S 1600 automatically reverses directions when it comes in contact with an obstruction. The Estate Swing E-S 1600 also has the safest method of controlling safety devices. All safety devices are set up on a Normally Closed circuit. Some gate openers are set up on a normally open circuit. What this means is that the Estate Swing E-S 1600 is virtually fail-safe. If a safety device does not activate for any reason the Estate Swing E-S 1600 will not operate, keeping your loved ones and assets safe. Gate openers with safety devices set up on a Normally Open connection will operate with the disabled safety device and the consumer will not know the safety device is inactive until it is too late!
- Quick, Safe and Secure Manual Release: Every unit comes with a key chain ready manual release key. In the rare case power has failed and the back up battery is not charged, the manual release key can be used to safely open your gate without damaging your opener arm or disconnecting anything from your gate.
- Adjustable Performance Features: Adjust the performance of your gate opener to fit your tastes, lifestyle and needs. You can adjust Pause Times, Opening/Closing Delays, Static Force, etc.
- 24 Volt Output Terminals: Convenient for accessories requiring power. i.e. locks, sensors, etc.
- Easy to Read Diagnostics: Save time and trouble with the included LED light diagnostic on the control board. This lets you know if connections are or are not made to quickly diagnose problems and efficiently fix them to resume normal gate operation.
|
%20Banner.jpg)
|
Control Box
Control Board
Operator Arm (with power cable)
Manual Release Key |
Low Voltage Transformer
Receiver (included in control board)
433 MHz Transmitter
Adjustable Mounting Brackets (bolt on) |
Mounting Hardware
Instruction Manual
Public Warning Sign
Quick Color Check Wiring Diagram
Setback Cutout |
Estate Swing Gate Openers are specifically designed for DIY customers. Featuring easy bolt-on brackets and straightforward setback templates, Estate Swing allows any homeowner to effortlessly install and automate their gate. With just basic household tools required, no special expertise or building code approval is necessary*. |
For over a decade, Gate Crafters has been the premier source for Estate Swing openers and accessories, offering technical and installation support seven days a week from 9 AM to 9 PM EST. Our extensive experience ensures you receive the best guidance possible. By choosing to install your gate opener system yourself, you can save thousands of dollars over its lifespan. You'll also gain valuable knowledge about your installation and its operation, making troubleshooting and routine maintenance much simpler in the future. *Disclaimer: At this time, we do not have information regarding any necessary building code inspections for the installation of Estate Swing gate openers. Therefore, we cannot ensure that all counties will not require prior approval.
GateCrafters.com is the DIY factor.
GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US.
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
GateCrafters.com has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental.
- Power Drill
- Crescent Wrench
- Flat Head Screwdriver
- Hacksaw
- C-Ring Pliers
- Phillips Head Screwdriver
- Tape Measure
- Level
- Wire Strippers
- C-Clamps
- 3/8", 1/4" and 5/16" Drill Bits
Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details. |
|
Words from Senior Application Engineer Anthony Geato | Top of Page |
"The Estate Swing is made by the largest gate opener manufacturer in the world that is known for their unrelenting commitment to quality. They have now teamed up with us, the largest gate opener retailer, to release the latest of in their accomplished line of gate openers; the Estate Swing line of openers. The Estate Swing E-S 1600 is a high-powered opener that is the only commercial grade constant duty DIY opener on the market. It has amazing features that can't be found on any other opener on the market. The Estate Swing E-S 1600 single gate opener is designed for gates from 14 feet in length or 800 lbs. The operator is a linear arm. It has a large setback and long stroke length, making it possible for setbacks that are not available to other linear operators. The E-S 1600 uses a worm gear system that takes pressure off of bearings, greatly extending the life of the motor and parts over gate openers with standard gear systems. The Estate Swing E-S 1600 utilizes a smart control board to run the commands mechanical parts of other systems run.
Opening/Closing Soft Stop is a new feature in gate openers. This means that the gate opener remembers the limits of the opening and closing cycles, and slows the momentum of the gate to gently reach its stopping point.
The Estate Swing E-S 1600 also features one touch easy programming, cutting your installation set up time in half. Once the gate opener is mounted and your variables are set, to learn how far your gate opens and closes, all you have to do is press one button and that’s it. The E-S 1600 can also be used without positive stops. It is recommended to use positive stops for exact open and close points, but opt not to use them and use the internal limit switches.
Safety is always a top concern with Estate Swing. They have designed their system to be the safest in the world. We at GateCrafters.com always recommend having external safety devices such as photo sensors installed on your opener to prevent damage or injury. The Estate Swing E-S 1600, first, has an auto-reverse feature built in. Even if you do not decide to install any external safety devices, the Estate Swing E-S 1600 will automatically reverse directions if it comes in contact with an obstruction. The top safety feature is how safety devices are wired on the Estate Swing E-S 1600. Other gate openers have a flawed system; they are hooked up on a normally open circuit, which means if your safety device is not functioning properly it will not stop the movement of your gate. This can lead to disastrous results. The Estate Swing E-S 1600 works on normally closed connections for safety devices. In most cases, if the safety device is not functioning properly, the normally closed connection will be open, the same as when there is a breach of the safety device, and the gate will not move.
As if all the previously mentioned features aren't impressive enough, the Estate Swing E-S 1600 also has a state of the art diagnostic system. After set up you can check out your diagnostics lights to be sure accessories are connected correctly. The lights quickly tell you if a connection is made or not made in the accessory terminals. This will save all users time from having to guess what is preventing proper operation and prevent users from testing and reconnecting terminals that were connected properly to begin with.
Gate Crafters was selected as a Estate Swing partner because our profound commitment to customer service. Every member of our technical support staff has had direct training from the manufacturer. We are available 7 days a week for support, even during holidays, from 9 A.M to 9 P.M. Eastern time. Also we will make ourselves available to you after hours upon request for installation questions absolutely free. I believe every customer will find the support they need at Gate Crafters and that is what has lead us to be the number one seller of gate openers in the world.
I stand behind the values of GateCrafters.com and would like to invite you to give us a try. You will find the service, knowledge and enthusiasm can't be beat; and the price will amaze you as well." |
|
Loyal Customer:

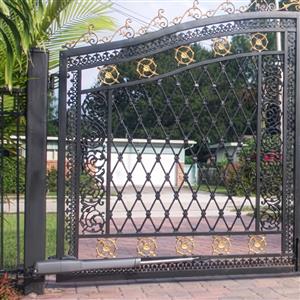

Highly ornamental, this gate looks amazing but must way quite a bit. But with the E-S 1602 it can be automated with tremendous reliability; especially when the units are installed so well. GMC is a professional installation company in Florida and by the looks of the job they do they will be in business a long time.
Send us your installation images! Please email them to customerphotos@gatecrafters.com. |
Manual: E-S 1600 / E-S 1602 Gate Opener Instruction Manual
