The E-loop Mini Wireless Vehicle System is ideal for residential use, offering a streamlined alternative to traditional wired inductive loops. Its wireless capability ensures a swift and straightforward installation process. Utilizing advanced 3-axis magnetometer sensors, this system accurately detects vehicle presence and movement, relaying signals to a nearby transceiver to activate your gate. Its compact and discreet design allows for surface installation on entry or exit passages, ensuring it blends seamlessly with your home’s aesthetics without the need for permanent fixtures.
There are 2 versions of this model: AES-EL00M-K which is for single gate activation with a short activation period and AES-EL00M-RAD-K which is identical looking but includes presence mode for keeping the gate open for a longer period of time. The second option is suggested for use of longer vehicles in motion over the detection area. Choose between the two options above to select your preference.
AES E-Loop Mini - EXIT MODE (EL00M-K)
Domestic Wireless Vehicle Detection System uses magnetometer sensors to detect the presence and movement of vehicles. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed on the surface of entry or exit passages using concrete fixing bolts, contain two replaceable AA batteries, and can withstand almost any vehicle.
Note: Gate or door controller must have a dedicated open input and auto close function enable
AES E-Loop Mini Radar - PRESENCE MODE (EL00M-RAD-K)
The Domestic/Light industrial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence and movement of vehicles. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed on the surface of entry or exit passages using concrete fasteners, contain two replaceable Lithium batteries, and can withstand passenger and light commercial vehicles. The gate or door controller must have a dedicated open input and auto close function enabled.
The sensors can detect vehicles that are stopped above the e-loop. The added radar utilizes two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an oncoming vehicle, the transceiver relay will be latched and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop. If the confirmation is missed, multiple attempts will be made to ensure safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, confirmation mode.
DISCLAIMER: UNITS WITH THE PRESENCE FEATURE ARE NOT TO BE USED AS A SOLE SAFETY DEVICE & SHOULD BE USED IN CONJUNCTION WITH STANDARD GATE SAFETY PRACTICES
GateCrafters.com offers more expert assistance than anyone.
If you need help deciding if this gate opener has the abilities that are right for your gate we have live application specialists available 9am - 9 pm EST 7 days a week or try our exclusive gate opener recommendation tool 24 hours/day.
Compatible with various gate openers.
Contact the manufacturer to verify compatibility with your gate opener system.
Lower power consumption
- Ultra-low power consumption
3-axis magnetometer for vehicle detection
- 8 Hz sampling rate
- Auto-calibration
- Exit/Entry detection mode
Fast and simple installation
- Quick non-permanent installation
Up to 4 year battery life
- Compact design
- Compatible with various gates
Reliable radio communications with transceiver
- Reliable radio communication
- High security 128-Bit AES Encryption
|
GateCrafters.com has the resources you need.
How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this question. We have develop videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each accessory to be installed with each gate opener. |
- Type of Product: Wireless vehicle detection system for residential use
- Technology Adopted: Magnetometer sensors
- Power Supply: 1.5V AA lithium batteries
- Frequency: 433.39 MHz
- Modulation: FSK
- Bit Rate: 9.6 kbps
- Bandwidth: 250 kHz
- Antenna Type: PCB
- Nominal Output Power: 10 dBm
- Receiver Sensitivity: -126.2 dBm
- Security: 128-Bit AES encryption
- Dimensions: 4.72" x 4.72" x 1.18"
- Weight: 1.1lbs.
- Environment: Designed for above ground mounting
- Operating Temperature: -20° to 80° C (-4°F to 176°F)
- Standby Power: 14μA
- Activation Power: 50 mA
- Transmitting Power: <10mW
- Safety: Tested to CE approval

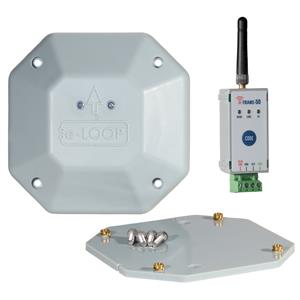

- (1) e-Loop Mini Wireless Detection Module or e-Loop Mini Presence Mode (based on option selection)
- (1) 12–24VDC single channel transceiver.
- (2) Concrete fixing bolts
For over a decade GateCrafters.com has been the premier online retailer of gate openers and gate opener accessories. Because of our extensive technical and installation knowledge, we are authorized to sell to the DIY market. You can access our trained technical staff 7 days a week from 9 am to 9 pm, EST. When you DIY install your gate opener system, you will save $1000s of dollars over the life of your gate opener. You will have working knowledge of your gate opener installation and how the gate opener works. This will make it easier for you to troubleshoot your system and perform routine maintenance, if needed in the future.
GateCrafters.com is the DIY factor.
GateCrafters.com further adds to most of our gate openers for easier DIY installation. We have developed exclusive components (example: easy adjustable mounting brackets), customized instructions, and offer a full spectrum of accessories to truly cover all aspects of the installation of your gate opener. In addition we have the largest staff of factory trained technicians in the US. |
- Order specific customized accessory wiring instructions
- 360 degree accessories - we can take you through exit, entry, safety, power, and all other minute details to create a fully rounded kit.
- Free 24/7/365 Installation Support
- Free 7 day/week Technical Support
- Largest Number of Certified Techs in America
- Free assistance to find the right gate opener for your gate
- Free systems design assistance to match the right accessories to fit your needs.
- Extremely competitive pricing
- Free shipping on all accessories purchased with a gate opener
- We stock replacement parts
- Many brands of many types of accessories, enough to handle just about any operational situation you can imagine
GateCrafters.com has actual experience.
We have a testing area, we have factory and internal training courses, we build gates and have our own gates that are automated, we attended all industry trade shows in multiple countries and are a member of the AFA, and we pay visits to our chosen manufacturers' factories. All these factors are what have lead to us having so many exclusive additions. When you see and actually use as many products as we have you tend to have many ideas for minor changes that have major impacts. We acted on these ideas and have utilized them to help thousands of customers automate their gates.
The following tools and supplies are suggested in the manufacturer manual for optimal installation. They are not provided by Gate Crafters, however, most tools are available at local hardware stores for purchase or rental. Please refer to the Installation Manual for Tools Needed. Depending on the type of gate, power supply and contributing environmental factors additional tools or supplies may be needed. Please review the product manual associated with this gate opener model for further details.
|
Manual: E-Loop Mini Instructions
Manual: E-LOOP Mini Exit Mode EL00M Cutsheet
Manual: E-LOOP Mini Presence Mode EL00M-RAD Cutsheet
QB ID: EL00M-K
