DESCRIPTION
DESCRIPTION:

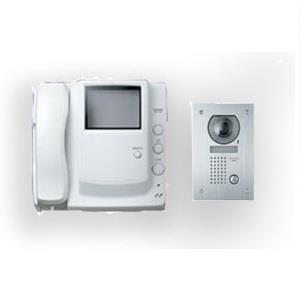

The MKS-1GDVF is a audio video door answering systems complete
with a fixed camera door station (MK-DHVF), an inside monitoring station
(MK-1GD) and a power supply (PS-1820UL). Two additional interior stations may be
added, either audio only (MK-2SD), audio/video (MK-1HDVF) or one of each. The
video door stations feature a wide angle black & white CCD camera with built in
infrared illumination for low light viewing, call-in button, and speaker/mic for
communication. The call button on the door station turns on the 4” CRT at the
inside monitor, initiates audio monitoring from the door and activates a
four-stroke chime. Audio communication at the door station is hands free, and
communication at the inside station is through the handset. The interior
stations also feature a normally open dry contact for door release and an extra
dry contact for light or secondary door release activation. The MK-DVF is flush
mount with a stainless steel faceplate and metal call button. One power supply
(PS-1820UL) supplies power for an entire system.
|
FEATURES & FUNCTIONS:
• Video quality improved over current MK system
• Set contains door station, monitor and power supply
• Extra dry contact (requires additional equipment)
• Door call-in LED
• Video and audio turn on when door calls in
• Door Call Transfer
• Redesigned monitors
• Two additional monitor or handset only stations can be added
• Simple 2-wire hook up -- Can replace existing doorbell
• 4 or 6 wires between inside monitors (based on distance)
• Handset for two-way communication at inside station
• Hands free communication at the door station
• Infrared, CCD camera for low light applications
• Built-in video output (requires additional equipment)
• All call between inside stations
• One power supply for entire system
• Activate door strike from inside station(s)
• Wide angle CCD cameras
|
Camera Features:
• Flush mount
• Backlit directory
• Vandal resistant
• Stainless steel face
• Metal call button
• Built in infrared LED’s
• Lexan protected camera lens
|
Manual: MKS-1GD-SS
Manual: MKS-1GD-SS Fixed Camera Door Sentry Systems
QB ID: MKS-1GDVF
