DESCRIPTION
DESCRIPTION:
The PanTilt camera video door station can capture an entire viewing area and be directed up or down or left or right of the enterance area for a better view.

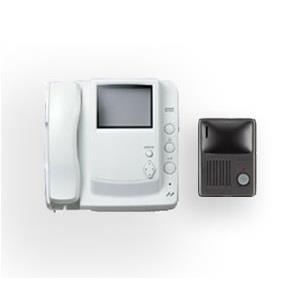

The MKS-2MCD is a video door answering system complete
with a PanTilt door station (MK-DAC), an inside monitoring
station (MK-2MCD) and power supply (PS-1820UL). The system has the capacity for an additional door station,
either audio video or audio only and up to two additional
interior stations, either audio video or audio only.
Video door stations are available in surface, flush and vandal
resistant versions and all feature: CCD chip camera with
infrared LEDs for low light applications, PanTilt mechanism
adjustable by an interior monitor, call-in button, speaker/mic for communication, and a locator LED. The interior
monitor stations are equipped with a 4” flat CRT monitor, a
monitor activation button, a pan and tilt control pad, door
release button, secondary dry contact (optional), an all
call button, call-in indicator LED, and a handset for private
communication. Brightness and chime volume controls
are located under each monitor unit.
The call-in button on the door station turns on the 4”
CRT at the inside monitor, initiates audio monitoring
from the door and activates a two or four-stroke chime.
Audio communication at the door station is hands free,
and communication at the inside station is through the
handset. The entry area can be monitored by pressing
the “monitor” button on any room station. This allows
both audio and video monitoring, staying on for
approximately 45 seconds. The interior stations also
feature a normally open dry contact for door release
and an extra dry contact for light or secondary door
release activation. To selectively release two doors, add
the RY-3DL adaptor
- Monitor Features
• Audio/Video Monitor
• Max 2 Doors and 3 interior stations
• 4” CRT Screen
• Handset for private communication
• All call to other units
• Door release contact
• Extra dry contact (Optional)
• Call-in LED
• Chime tone Volume control
• Transfer of door call-in
• Instant-on when door calls
• Monitor the door station
• PanTilt control pad
- Camera Features
• Surface mount
• PanTilt camera
• Built in infrared LED’s
• Lexan protected camera lens
QB ID: MKS-2MCD
