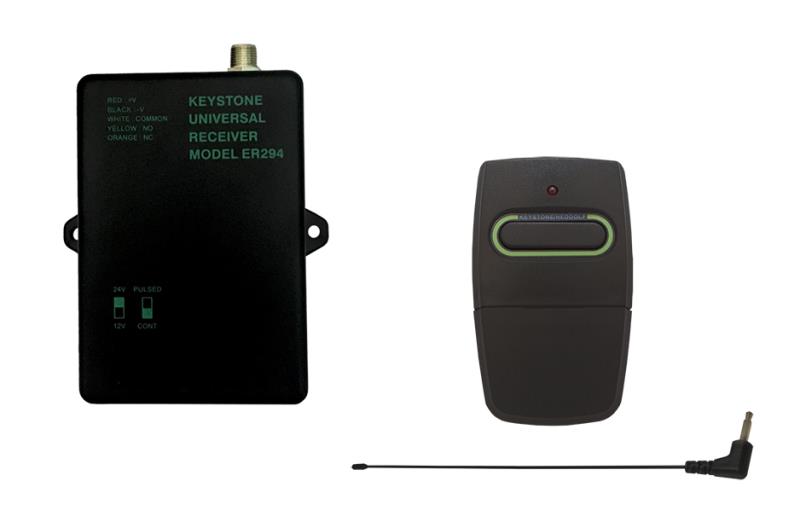

Can I put the universal adapter on my gate opener to accept my garage door opener remote?
▼
No. It must be done the other way around. The universal adapter needs to be attached to the garage door opener.
Can I use a Credit Card?
▼
Sure, GateCrafters.com accepts Visa, American Express, Discover and Master Card over the phone or through the website, 1-800-537-GATE, as long as the address we are shipping to is registered to the card.
Can my gate be picked up at your location?
▼
Yes. We are located in Odessa, FL, about 30 miles north of Tampa.
When I wire the digital keypad to the opener, can I leave out the battery?
▼
No, you need to include the battery when you hard wire the digital keypad. Without the battery the keypad won’t work. Your battery regulates the amount of voltage running through the keypad.
How will I know my gate is completed and ready to ship?
▼
You will be sent an e-mail confirming that your gate has been completed and is currently in the shipping process.
What are the warranties that come with my gate?
▼
To remove one or more products from your shopping cart, you need to change the quantity of that product to zero and click "Update Order" button.
If you remove the quantity and leave it blank, the product will not be removed.
Can I attach more than one accessory to the same plugs on the control board?
▼
Yes. Especially since they all need to connect to green we had to make it so more than one can be in one plug. Just place all the wires desired in and turn the screw to tighten the plug.
On the bottom of the control board there is an area labeled for accessories. All accessories will have one wire attached to green.
For safety devices use green/orange.
For opening devices such as push buttons and digital keypads use green/white.
For a timed device such as a timer or exit wand use green/white.
Where do I attach the wires from my accessories to my control board?
▼
On the bottom of the control board there is an area labeled for accessories. All accessories will have one wire attached to green.
For safety devices use green/orange.
For opening devices such as push buttons and digital keypads use green/white.
For a timed device such as a timer or exit wand use green/white.
What if my address is different from my Credit Card billing address?
▼
That is ok.
We can shipping to an address different from your billing address.
Can I return my semi-custom driveway gate?
▼
Due to the fact the your gate is custom made just for your specifications it is not able to be returned. We go through great lengths to verify before building a gate that we are all in agreement of what the gate will look like and what the measurements will be to avoid this coming up and have a great success rate.
Why is there non-secure content on secure pages?
▼
If your browser warns you that some of the content on a web page is not secure, that means a SSL page has some content that is not transfered in a secure way.
On our site, you should not see this warning at all since all content on our secure pages is transfered in a secure way. But some browsers may give you this warning by mistake. If so, please choose "don't display non-secure content". Therefore, your page will stay secure and you will not lose any content.
Will you see my credit card number?
▼
We only see first and last 4 digit of your credit card number. The 8 digits in the middle are masked.
This is for your safety.
I got an error. Why?
▼
The error usually has a 3 digit code such as 404, 500, 403.
If you see HTTP 404, that means the page you visit has been moved or removed. Please use our navigation links to find it again or somehting similar.
If you see HTTP 403 error, that means you are doing something not allowed by the web site.
If you see a HTTP 500 error, that means the web page could not function. Please let us know by email on phone.
Our email for technical issue is
tech@gatecrafters.com
Our toll free number is 1-800-537-4283.
Thank you.
Will I be charged a restock fee?
▼
Most of the time a 15% restock fee will be applied to all returns. There are exceptions to this policy depending on which items are returned and the condition of the items when received.
I hear a beeping noise with my GTO, inc. / Mighty Mule automatic driveway gate opener, what is it?
▼
Your battery in your GTO, inc / Mighty Mule automatic driveway gate opener is running low. There can be a couple of causes. One is a possibility is dead cell in your battery in your GTO, inc / Mighty Mule automatic driveway gate opener. Another could be your battery is not getting electricity to charge it. Check your power source. It may be the GTO, inc / Mighty Mule automatic driveway gate opener transformer is unplugged, blown or the solar panel hasn’t been getting much light. If all your power sources check out test your battery. Batteries in a GTO, inc / Mighty Mule automatic driveway gate opener generally last 3 – 5 years and is probably dying and needs to be changed. When you buy through GateCrafters.com, you get a five-year pro-rated warranty on your battery. If it is under warranty and the GTO, inc / Mighty Mule automatic driveway gate opener battery runs out we’ll replace it no questions asked.
Do the gate operators work with HomeLink® systems in cars? Will I be able to use that transmitter to open the gate, is there any way to tell?
▼
The surest gate opener to work with Homelink is the Liftmaster. Homelink worked directly with Liftmaster in developing their system. If you are wanting to purchase a gate opener other than Liftmaster, give the remotes that come with that gate opener a try. It really depends on the year and make of the car, some vehicles accpet different ranges of frequencies. Just know that if the remote does not work you are not stuck. All you would have to purchase is a liftmaster receiver: http://www.gatecrafters.com/product_detail_2614.aspx
and a single liftmaster remote (the remote is just used for the programming of the car): http://www.gatecrafters.com/product_detail_31695_11153.aspx
How does wind affect my openers performance?
▼
There is no sure way to say exactly how much your wind will affect your automatic driveway gate. There are many factors, including the size of your driveway gate, the total surface area of your driveway gate, how often the wind is strong.
If you live in a costal area or a plains state with frequent high winds, we suggest upgrading to the next highest automatic driveway gate opener. If you are unsure of your gate opener needs GateCrafters.com has certified automatic gate opener technicians on staff everyday to help you choose. It would also be recommended to use an automatic driveway gate lock to lock your driveway gate shut in the closed position. This takes pressure off of the automatic driveway gate opener’s arm when the wind pushes against the driveway gate.
The main concern with automatic driveway gate openers and wind is the added strain to the motor of the automatic driveway gate opener and the wind generally trips safety sensors that are a part of all automatic driveway gate opener systems. Either you can use an automatic slide driveway gate opener or you would have to manually operate a swing driveway gate in windy conditions.
The easiest automatic driveway gate opener to manually operate would be the Estate Swing E-S 1600/1602 automatic driveway gate opener. The Estate Swing E-S 1600/1602 automatic driveway gate opener has a key release on the top that releases the gears and allows the driveway gate to be moved manually without having to remove the automatic driveway gate opener.
My battery is running low on my automatic gate opener system, why?
▼
There can be a couple of causes and these causes are generally the same for all automatic driveway gate opener systems.
One is a possibility is dead cell in your battery running your automatic driveway gate opener system.
Another could be your battery is not getting electricity through the automatic driveway gate opener system charge it. Check the automatic driveway gate opener system power source. It may be unplugged, blown or the solar panel hasn’t been getting much light.
If all your automatic driveway gate opener system power sources check out test your battery is probably dying and needs to be changed. Automatic driveway gate opener batteries generally have a life span of 3 – 5 years. When you buy an automatic driveway gate opener system through GateCrafters.com, you get a five-year pro-rated warranty on your battery. If it is under warranty and it runs out we’ll replace it no questions asked.
The last possibility to look at is automatic driveway gate opener control board damage. Lightening strikes and power surges are the most common cause of ALL electronics failing. Consult one of our highly trained Gate Crafters technical support associates to test for board problems with your automatic driveway gate opener system.
What is the maximum width of my post when using a PRO 2000 gate opener?
▼
The maximum width is 24”. The GTO/PRO 2000 gives you the maximum amount of versatility in mounting your gate opener and is recommended for any installation on a pillar or larger post.
Can I plug in my transformer outdoors?
▼
No. It is not rated for outdoor use. Please either plug your transformer into an outlet in your garage or use an enclosure over the outlet.
What frequency is my transmitter for my automatic driveway gate opener?
▼
What happens after an obstruction?
▼
An obstruction causes your gate to reverse directions and then stop after 2 seconds. A gate opener safety device makes your gate return to the full open position.
What do I do if after adjusting my gate opener, the arm retracted too far and became stuck?
▼
Your gate opener will meet a level of resistance it won’t accept if your arm has retracted too far when it tries to go back out. You will have to bypass the control board to avoid censoring the power going to your arm. Take the wires that go to your arm and touch them directly to the battery. This will activate your arm in the reverse direction and power through the stuck positioning.
What if there is an emergency and an ambulance or firetruck must enter my property?
▼
There is a saftey device available called the SOS Siren Safety Sensor (SOS-YTD). This siren-operated sensor is designed to respond swiftly to the "YELP" mode of all standard sirens.
Where can I get a new fuse for my automatic driveway gate opener?
▼
What happens to the opposite leaf when one leaf of the dual gate hits an obstruction?
▼
It will react in the exact same manner as the obstructed leaf. It will reverse direction and after 2 seconds pause.
What is the difference between inertia and obstruction sensing in autoamtic driveway gate openers?
▼
Some automatic driveway gate openers have both inertia and obstruction sensing. The difference between the two is the obstruction sensing on your automatic driveway gate opener changes how sensitive your gate will be to an obstruction. You can set it to detect an obstruction at a low level of interference or high. Inertia comes into play after the automatic driveway gate opener has detected an obstruction. It is the level of pressure the automatic driveway gate opener will exert to push through the obstruction. It can be set to no force or enough force to push through minor debris. Just remember inertia is void until an obstruction has been detected.
Can a security lock be mounted on my gate for added safety?
▼
Yes, We offer high quality locking systems to add to your gate. Just look under our Opener Accessories section.
How do I load test my battery for my automatic driveway gate opener?
▼
When batteries on your automatic driveway gate opener have read cells or are getting old they may read fine (13.5-13.8 VDC) at rest, but not be able to perform under a load. To test your battery under a load, keep the battery fully installed into the automatic gate opener system; attached both to the incoming power source and the automatic gate opener arm. Take the positive and negative leads from your voltmeter and place them on the positive and negative battery spades. Then run you automatic driveway gate opener through a cycle and see what the voltage of the battery drops to. A fully charged, healthy battery shouldn’t drop more than a volt.
Why was my credit card charged twice?
▼
This usually happens when you submited your order more than once.
For example, some customers closed the browser window after they submited the form and before the transaction is finished.
If so, the credit card may have been charged.
If customer submits another order, it is treated like a seperate order.
Therefore, you will see two charges on your credit card.
Let us know if you find your are double charged. We will refund or void the duplicated charge.
My gate will not close when supposed to or will randomly open and close, why?
▼
Many times this problem has to do with an exit wand. If for some reason your exit wand malfunctions your gate will randomly cyle. If there has been any addition of metyal objects in the area of your wand problems may also occur. Disconnect your want from the system and if the problem diminishes then you have a malfunctioning wand.
Can I speak to sombody at my gate while I am inside?
▼
Yes. We offer a variety of intercom and vidiocom systems that allow the person at the gate to ring into the house and be heard. With the use of a videocom system the person can also be viewed. The gate can be opened with the push of a button from the inside master station.
Why is the web address gatecrafters.webdirectbrands.com?
▼
GateCrafters.com is owned and operated by Web Direct Brands Inc.
When you type in www.gatecrafters.com, you will be redirected to gatecrafters.webdirectbrands.com.
It is just how we organize our web content. It makes no difference to our customers.
Why did my keypad stop working temporarily?
▼
For safety purposes, if the keypad has 16 numbers pushed repeatedly it cuts off for 40 seconds. This discourages unwanted visitors from guessing code after code.
I could not find answers I am looking for. What should I do?
▼
If you can not find the answer in our Frequently Asked Question secion, please call us or email us. We will happy to help.
Our email for technical issue is tech@gatecrafters.com
Our toll free number is 1-800-537-4283.<br>
Thank you.
What wattage solar panel should I use?
▼
Please visit our solar panel information page for complete details. The link can be found on our GateCrafters homepage under "Solar Information".
I did not get email confirmation. Why?
▼
If your completed the check out process and saw the web page saying your credit card will be charged, you will get an email in few minutes.
If you don't see a confirmation email in an hour, please email us at
sales@gatecrafters.com or call our toll free number 1-800-5374283 to inform us. Please have your order number available when you call or email us.
We strongly suggest you print out the confirmation page for your record.
If you did not see the web page saying your credit card will be charged, please don't submit your order repeatedly. Instead, call us or email us. We will be happy to help you with your order and make sure you are not charged more than once.
Why did I get a warning about your secure certificate?
▼
SSL certificates are issued by many organizations.
Your browser will give you a warning when it could not find the issuer from browser's own list of issuers.
This doesn't mean the SSL certificate is bad or invalid. It only means your browser could not recoganize this particular certificate issuer.
If you are using Internet Explorer, you may run "Windows Update" and update your "root certificate". After the update, you will not see the warning when you get to our SSL secure pages.
What wires are included with my gate operater?
▼
The only wire that is included is the wire to connect the master arm to the slave arm. All other wires must be purchased seperatly. We offer 1000' rolls of 16 gauge, 2 conductor wire commonly used to connect a power source. It is also available by the foot. Just Ask!
How can I remove products from shopping cart?
▼
To remove one or more products from your shopping cart, you need to change the quantity of that product to zero and click "Update Order" button.
If you remove the quantity and leave it blank, the product will not be removed.
Can I use any size solor panel for my gate operator?
▼
Many people would like to use solar panels as the sole source of energy for their openers but they feel the recommending size is not large enough to supply enough energy. If you do want to use a larger panel the one recommended we suggest using a larger battery. A larger battery will accept the larger amount of energy that the larger panel may absorb. The smaller battery may be over loaded during periods of strong sunlight. Solar Panel Guide
Would you like to know my comments?
▼
Yes. Please let us know if you have any comment or suggestion. With your help, we can better serve all customers.
Please email your comments to
comments@gatecrafters.com
Thank you.
I am having Problems with my gate operator accessories, why?
▼
If you go to our home web page there is a link to "product manuals." This page will give you full detailed instructions on how to wire and program all of your accessories.
The P1 and P2 buttons on my Estate Swing 1100, 1102 are not working, why?
▼
Most of the time thier is a simple solution to this problem. Many times during shipping or installation the actual control board may become dislodged from the housing. If there is no clicking sound when the buttons are pressed then you must unscrew the top of the housing from the control board. There are snaps that hold the board in place. If the board became dislodged from these snaps then the buttons will not make contact. Just make sure the board is fully snapped in and your problem should be solved.
The power light on my E-S1100 or 1102 is flashing rapidly, why?
▼
As stated in the manual, a rapid flashing light indicates a discharged battery. The battery must be charged for a full 12 hors prior to initial use.
The power light on my E-S1100 or 1102 is flashing slowly, why?
▼
As stated in the manual, a slowly flashing power light insidates that the main power from the transformer is not on. It is running soley off battery power.
How do I program my FAAC transmitter?
▼
Its simple, just make sure the twelve dip switches inside your transmitter match the twelve dip switches on your FAAC reciever.
What are the warranties that come with my gate?
▼
We offer you a lifetime structural warranty as well as a 1 year paint warranty.
How can I find out if sales dept received a request for quote?
▼
If you submit a quote for a driveway gate or for a gate opener through the shopping cart you will receive an email. If you see the email in your inbox it is in our sales department inbox as well. Our copy is a carbon copy of your email.
which gate opener is best for a gate on a slope
▼
This all depends on how you have the gate swinging. (If it slides up a slope no automation will work).
If it is swinging on a slope you have one of two choices on making it automation ready. The best choice is gate should swing perfectly level out away from the slope (typically the slope is going up into the property so you set the gate to swing out toward the road so the slope does not affect the level swing of the gate), If you do this method then any gate opener will do if it is the right one for your power requirements (solar, long distance low voltage or 120VAC near by) and right for the weight and length of the gate. Be aware some gate opener require a purchase of additional brackets for push to open operation.
The other option if you gate must swing in is to use Liftmaster SWG606 Uphill Swing Hinges. these hinges allow the gate to tilt up to 15 degrees as it swings level to accommodate a slope. If using these hinges you also must use the LiftMaster CSW200UL8 Elite Series Professional Single Swing Gate Opener - 1/2 HP (Standard) gate opener with the additional purchase of the Swivel Arm Q103. The reason for this gate opener option is it is the only one that has available the swivel arm which is needed to pair with a gate that is going to tilt as it swings. This is an expensive and labor intensive setup but a very reliable one.
Lastly here is the reason you cannot just leave your gate swinging up hill on normal hinges or sliding on a slope and just "power" through it. All gate openers have safety obstruction sensing built into them so if it feels resistance it will stop before crushing something. This sensitivity does not diminish as the motor gets larger. We think about it this way, no matter how powerful the motor is no manufacturer is going to design a system that will crush a small child when it comes in contact with one; and there is no way to detect the difference between a small child and gravity or wind or other things that cause resistance on the swing of a gate.
is silicon spray ok to spray on sliding gate chain?
▼
Sliding gate chains are very similar to bicycle chains and get submitted to very similar conditions. It is best to go to a sporting goods store and get bike chain lubricant and use that. Stay clear of heavy viscosity lubricants as they stay on the chain and wind up attracting more dirt and dust to stick to it.
Will gate open if fire alarm goes off?
▼
This would depend on the fire alarm system. If the system can close a contact then you could wire that to the gate opener to open the gate. But then you also have to consider the auto re-close function of the gate. If that is turned on you would need the contact from the fire alarm to toggle and stay toggled until you manually turn it off so it doesn't re-close on someone trying to leave. This will wire into each gate opener differently; once you confirm your alarm sy`stem has a dry contact to trigger an external device contact us and we will help you wire it in.
My gate has opened randomly for no reason.
▼
Some of the key things to look for when a gate opener is opening by itself is the accessories / receiver.
The number one cause is an exit sensor. They are very sensitive devices and will cause the gate to go open as if a car is triggering it when there is no car. Try disconnecting the device and see if the problem persists.
If you don't have an exit sensor it could be the receiver. Receivers could be picking up another radio signal in the area. Newer receiver coding and frequencies are making this less likely however it should still be checked in the same way by disconnecting and seeing if the problem persists.
Lastly any other accessories (keypads, push buttons, etc) should be disconnected to see if the problem follows those devices. Many times if the devices start to build up corrosion internally they can malfunction and open the gate.
Why is there only one ball bearing?
▼
When installing a driveway gate the top pin with the ball bearing will bear the weight of the gate the bottom pin with the pin facing up will keep the gate plumb so the pressure on this pin will be on the side of the pin. This configuration is important for both safety and security, this prevents the gate from being “lifted” off its hinges.
can I use a single swing metal gate with a wood fence?
▼
Absolutely, a lot of people use the picket gates along side wood fence lines. Here is a picture one of our customers had sent in : http://www.gatecrafters.com/customer_photos/Gerard-NY3.jpg or http://www.gatecrafters.com/customer_photos/Thompson%202010%20006.jpg or http://www.gatecrafters.com/customer_photos/m_Don.JPG
Another option is to use one of our frames. Our frames are made of aluminum and give you a sturdy, automatable building block to make your own gate to match your fence: http://www.gatecrafters.com/wood_or_vinyl_gate_frames.aspx
what is the best way to hang a driveway gate
▼
For residential applications swing gates are cheaper and safer, additionally swing gate operators are cheaper to own and require less maintenance. If you need a slide gate because of space limitations, be sure to get one that has an internal trolley to improve the safety.
What do the ratings mean?
▼
Gate openers are rated based on the length or the weight of a gate. Some times it is a fixed scale, meaning the gate opener is rated for a length and a weight. For example if a gate opener says 12 feet AND 400 lbs, the manufacturer is saying that the gate can be both. Some times it is a sliding scale, meaning the gate opener is rated for a length or a weight. For example if a gate opener say 12 feet OR 400 lbs then at 400 lbs the gate should be shorter and a 12 feet the gate should be lighter. All the gate openers with this type of rating on GateCrafters.com have the sliding scale is the listing of the gate opener.
In either case you never want to exceed the ratings. Even if your gate is very light the gate opener will not have sufficient leverage on the gate because of the length. So the weight of the gate, although light, has a magnified impact on the gears and motor of the opener causing additional wear and most likely will cause unexpected obstructions.
How can I submit a full custom gate design
▼
Full custom gate designs would need to be submitted directly to our gate designers via email at gatesales@gatecrafters.com . Be sure to include contact information so one of our design specialist can contact you.
I want to hard wire my WKP-P keypad to my Liftmaster LA412 control board. How?
▼
Use batteries rather than the 12V power from the control board. The batteries usually last over 5 years because they are hardly ever used. Liftmaser has a different type of ground configuration so the 12V power from the board with a 3 terminal shared ground design for an accessory will not work.
Here would be the wiring:
o/p on keypad to Single Button on control inputs
gnd on keypad to ctrl power on control inputs
12v on keypad not used
When I push the remote, the gate opens about 1 foot and then closes about 6 inches like it hit something.
▼
Depending on the gate opener and how long it has been installed this could be a few things.
If you gate opener is a battery operated system, ie Mighty Mule, Lift Master, Apollo, Patriot, GTO/PRO - the battery could be worn down and needs to replace. When the battery gets low it will mistake the low voltage for the voltage draw caused by an obstruction.
If it is a direct voltage gate opener - most other brands, then if could need lubrication on the pivot points of the gate opener and the hinges of the gate. (check this if battery is not issue from above)
If it is a new install check the geometry of the rear pivot mounting of the gate opener. If the setback is off the leverage will not be correct and it may be too much force on the motor and making it obstruct.
Why do I have to purchase an additional phone number for my GSM to work?
▼
The GSM systems by Estate Swing, EST-1000 intercom and the EST-64 receiver, require a GSM compatible SIM card. You can either add a line to your existing plan or go with a pay as you go phone. The key is to get a SIM card that is compatible with GSM technology. The two biggest carriers to offer such a card are AT&T and T-Mobile. The SIM card must be able to send and receive text messages, have minutes available, be unlocked, and have a working phone number. The GSM intercom and receiver unit are basically working cell phones that receive calls and text messages. The GSM interom also makes calls to up to three phone numbers to allow access to the gate remotley. For instance, a guest pulls up to the gate and he/she hits the call button. The GSM then rings the administrator phone number and up to two other manager numbers if the admin. does not answer the phone. The admin. or the manager can then grant access to the gate no matter where he/she is, as long as they have cell phone coverage.
Does the opener include an installation manual?
▼
Yes — complete manuals with step-by-step instructions, wiring diagrams, and templates ensure confident, smooth installation and minimize mistakes.
What doesn’t come with the gate opener kits that I need to install it?
▼
Gate opener kits from GateCrafters.com are all designed for the DIY customer.
Here is what all of them have: The motor, the control board, control box, a power source, brackets for mounting the motor, receiver, remote, and manual.
Some have additional products like multiple remotes, antennas to boost the receiver, or hardware to mount the brackets to the post and gate.
What you will need to purchase in addition with all gate openers we carry: Low voltage wire
What else you may need depending on the model: More or different hardware depending on your post or gate style (nuts and bolts), a battery (if it is a battery operated system that doesn't include one).
Each of our gate opener descriptions details what will be needed with that particular opener; please review those for additional details. However one key note is with all GateCrafters.com gate opener kits your additional purchase will be minimal and easily purchased locally.
Can a keypad open two different gates?
▼
There are a few we carry that can do this. The Linear AK11 and Estate Swing Stainless Steel flush mount keypad will work as they have two relay outputs. These can be wired to two different devices and active either one with different codes. The MDKP when paired with the AP5 receiver can activate two separate gates with a wireless connection between the keypad and the receiver. The receiver would need to be wired to both of the openers.
Which gate opener do I need?
▼
gate design question
▼
p>Gate designs can be done conveniently through our website. Simply go to:
http://www.gatecrafters.com/design_your_gates.aspx
Here you can choose to design a single or a dual gate. It will produce a full quote and a preliminary image of your new gate. Then simply submit the design, one of our friendly gate design associates will assist you shortly there after.
How can I submit a full custom gate design
▼
What is the difference between the E-S 300 and E-S 500?
▼
The length of the arm is the difference. The E-S 300 is shorter than the E-S 500 giving the E-S 500 more leverage over your gate. This is why the E-S 500 is rated for larger and heavier gates. Other than that everything is identical.
I have a P294-1k receiver on my e-sl 450 gate opener. I would like to know what mode to put it in?
▼
For the P294-1K Universal Receiver the preferred setting is Continuous. A Continuous setting insures that the receiver will not receive a double signal, which would stop the gate immediately. The further you are away from the receiver the longer you will need to hold down the transmitter button. If the receiver was set to a pulsed transmission it would send multiple signals to the gate opener, especially if the transmitter button is held down for a longer period of time.
Mighty Mule FM502 Gate Opener has one beep every five seconds, what does this mean?
▼
One beep every 5 seconds on the Mighty Mule FM502 does not have a defined diagnostic purpose. However if you are possibly estimating the seconds wrong there are two diagnostics that do match up with that gate opener.
1 beep every 2 seconds: Master Arm limit switch.
Here is how you will test for this issue. Remove the master arm from the master arm wire terminals. Take the slave arm motor wires and insert them into the master arm terminals. Then take the master arm terminals and insert them into the slave terminals. Power down the board and power it back up. Theoretically now you should be getting 2 beeps every 2 seconds, which indicates the slave arm has a limit switch issue. This would be because you made the master the slave.
1 beep every 10 seconds: Low battery
Even new batteries can have low power before they are charged. To correctly evaluate your battery voltage put a multi-meter on the battery while the battery is under load. The battery should be above 13VDC and not drop more than 0.1 volts under load.
What is the difference between the Estate Swing E-S 500 and E-S 1600 gate openers?
▼
Both of those gate openers are 24VDC systems that have adjustable limit switches in the open and closed position. They are very similar in stroke length as well (stroke length is the length of the screw drive that the shaft of the gate opener runs on. The longer the stroke length generally means the more leverage the gate opener will have on a gate).
Differences:
The E-S 500 uses magnetic limit switches that are adjustable by sliding them with your fingers. The E-S 1600 uses mechanical limit switches that are adjustable by turning a screw. The E-S 500 has the advantage in the longevity of the limit switches over the mechanical ones of the E-S 1600. Since magnetic limit switches do not have parts that touch or move there is less likelihood of the switch breaking. The E-S 1600 has the advantage over the adjusting of the limit switches. While the hand sliding of the limit switches on the E-S 500 is very convenient it is tricky to make slight adjustments. The E-S 1600 can make a slight adjustment very easily by turning a screw.
The E-S 1600 has some advantages for installers. It is UL rated (both meet UL standards but the E-S 1600 has paid for the certification testing) and it is more repair friendly. The UL certification helps protect installers from liability on commercial applications. The E-S 1600 housing is able to be opened completely by removing bolts and every part inside of the opener can be accessed and replaced. If an installer is offering a maintenance plan this would be an easier route for repairing the opener. The E-S 500 has some parts that are replaceable but they are not as easily accessed.
What are the differences between the Apollo 835/836 boards and the 1050 board by Apollo / NICE?
▼
The A href="http://www.gatecrafters.com/product_detail_32064.aspx">1050 board is the latest board and is a joint project of Apollo and NICE. NICE purchased Apollo a few years ago because of Apollo's leadership in the solar gate opener market. NICE has been a very successful high tech Italian gate opener company and this board is a marriage between the sophistication of NICE gate opener technology and Apollo solar efficiency. Some of the best features of this board:
- Built in diagnostics such as a voltage reading for battery, incoming power, motor usage, etc.
- Three relay utility terminals for activating a multitude of options like lights and locks.
- A clean, covered and well labeled control board with digital controls.
- Built in battery regulator
The 835/836 board is Apollo's classic board For what it lacks in technology is has in simplicity. Programming is easy: Press and hold the LED enable button for 5 seconds. Then run the gate opener back and forth from open and closed until the lights stop blinking. The board allows for addition of dealer choice of regulator, receiver and all other accessories so the gate opener system can be easily upgraded.
What are the difference between the exit wands beside the price?
▼
Within each model the first thing that is seen is the length of the wire. It is not recommended to extend the length of the wire so one with a long enough wire should be purchased. The further back the wand can be placed the faster a vehicle can move toward the exit and the less the vehicle will have to slow in order for the driveway gate to open.
For the difference in models:
The Estate Swing exit wand comes in Standard or Deluxe. Both have ways of getting rid of interference which is a big issue with exit sensors. The standard has shorter wire which means it will be closer to the end of the gate. So it comes with a range adjustment board to help prevent it from picking up the movement of the gate as moving metal. The longer deluxe model comes with a grounding strap on the end of the wand that can be attached to a grounding rod at the location of the exit wand to help rid electrical noise from having a longer wire.
The Gate Crafters Exit wand and the GTO / Mighty Mule exit wand are basically the same as each other as basic wands, just different brands. The GTO / Mighty Mule has a shielded wire that helps to eliminate some electrical noise but not the same as having the grounding strap. The GateCrafters exit wand has both a normally open and normally closed side to the built in relay that opens it to alternate applications.
Can I get my Estate Swing driveway gate in any color I want?
▼
One of the first things you may have noticed about the
Estate Swing series of driveway gates is the amazing price. One of the main reasons we can offer such a high quality gate at such a low price is by eliminating variation to create these in batches. Because of this Black is the only color you can get. However you can design a
GateCrafters.com semi-custom driveway gate and get any color you may want; and make other customization along the way as well.
What accessories can I add later?
▼
Enhance convenience and safety by adding photo eye sensors, exit wands, keypads, and loop detectors — all fully compatible with the E-SL 1800 system.
Does the opener lock the gate when not operating?
▼
Yes — the motor’s design resists manual push-through while a mechanical lock can be added for extra property security, giving you peace of mind.
Do I need professional installation?
▼
The E-SL 1800 is DIY-friendly, allowing homeowners to enjoy professional-grade automation without hiring a technician, although complex setups can benefit from a professional touch.
What power supply is required?
▼
A 120VAC supply is converted to 24V DC via the included transformer, giving direct, constant-duty power for reliable, professional-grade operation.
Does the system require lubrication?
▼
Rack-and-pinion gears are pre-lubricated. Periodic cleaning of gate rollers and tracks ensures smooth, quiet operation.
Why choose one brand over another?
▼
Choosing your brand this is much like your purchasing decision in many other scenarios. Some brands are known for being priced low. Some brands are known for quality. Others are backed by large companies with a history in the industry supporting their customers. All of the brands we carry have a purpose and a great reputation; the more important step in finding a gate opener on our site is to find the right model for your situation which our helpful representatives can assist you with 7 days a week. Then learn about the brands difference out of your remaining options.
Can I turn off one remote if I no longer want that person to have entry?
▼
It can be done but the convenience of it depends on the remotes that you have. The remotes that come with all of our gate openers are designed for residential usage where you have a small number of remotes given out. In this case there are dip switches inside all the remotes and on the receiver that must match. If you change a single remote for the receiver that remote will stop working. If you cannot get that remotes back you should change the dip switches on all the other remotes and on the receiver.
We also carry Linear Mega-Code remotes. These remotes are used in communities and in businesses. Each remote has a remote id. The remote id is then programmed into the receiver. The receiver can then cancel a single remote id upon command without having the remote present.
How can I submit a full custom gate design
▼
Full custom designs would need to be submitted directly to our gate designers via email at gatesales@gatecrafters.com . Be sure to include contact information so one of our design specialist can contact you.
My gatecrafters universal gate timer doesn't work, what should i look for?
▼
Here is the wiring for the timer for making the gate open at a time and close at a time:
Power terminals 1 & 2 of timer to:
12 or 24 volts dc
Terminal 4 to the common of the accessory terminals on the gate opener
Terminal 5 to where an automatic exit device would go.
Terminal 3 not used.
The other thing to check is the display should show AUTO on the timer. If this is not you will need to toggle the Manual button until it is.
When the gate is open the ON light should be illuminated. When the gate should be closed the light should be off. If it is not off then check the above to make sure it is on Auto and not ON; then check your programming to make sure it is scheduled to turn off properly.
Lastly - Auto-reclose must be on in this configuration. That is what actually closes the gate - the timer simply delays the gate opener until the desired time.
If you are trying to use it with auto-reclose off or for another purpose like turning off an accessory at a certain time or disabling the gate at a certain time let us know and we will explain a different way of hooking it up.
Does the RE-1 have a contact / relay to light up a lantern on a column?
▼
Yes, the Linear RE-1 telephone access intercom has 2 relays on it. The relays are dry contacts that are 3 AMPS AT 30 VOLTS AC OR DC MAX. Because you cannot run 120VAC through these relays you would either have to use a second relay or the GateCrafters.com low voltage solar light kit. If using 120VAC lights, you would use a low voltage power supply that runs through the RE1 relay. When the RE1 relay closes the circuit it would allow the low voltage to trigger the high voltage relay to allow voltage to the light system.
Or you could purchase this kit: http://www.gatecrafters.com/product_detail_32821.aspx and control the lights directly through the RE-1.
Some ways the RE-1 could control the light is:
When you type a code in the keypad it toggles the light on and when you type the code again it toggles the light off.
The internal clock can automatically turn the lights on at a preset hour and turn them off at a second preset hour.
Turn the light on and off by phone call.
Gate opens past where it should - what should i do?
▼
This really depends on the type of gate opener and if it is a new install or an existing one that is starting to have an issue.
Mighty Mules, GTOs, and the E-S Allegiant have fixed open limit. If it is a new install then the unit was not installed in the open position as it should have been. If it is an existing then possibly the brackets have shifted or the limit switch is broken.
Liftmaster LA400 and LA412 have programmed stop points. For new or existing try programming the open position again. If it does not work then there could be a rev counter or board issue.
Estate Swings have adjustable open limit switches for the ES1000, 300, 500 and 1600 series. For a new install adjust your limit switch so the piston retracts less. For an existing, check to be sure brackets have not moved and then check to see if the piston is moving past the limit.
What is the maximum solar panel size in watts allowed for the 1050 board regulator?
▼
For the Apollo 1050 board there is a built in solar regulator. The highest wattage solar panel you can use in this gate openers built in regulator is
30 watts.
Why is there only one ball bearing in my hinge package?
▼
The is only one ball bearing in the
hinge packages because of how the hinges are designed to be hung. The top hinge barrel will have the hole in the barrel facing up. This one will receive the ball bearing. The other barrel is mounted upside down. This is to prevent he gate from being lifted off its hinges. Gravity will prevent the hinge from riding on the ball bearing and thus eliminates the purpose of it in the bottom hinge.
Photocell vs loop, when should one or the other be used with a gate oepner?
▼
Loops are the most dependable method used for safety in gate openers. However many do not go this route because of the difficulty of installation and the cost. Loops (
need loop detectors as well) are installed in the driveway. Most commercial properties have 3 for safety. One on the outside of the property, one on the inside past the swing of the gate, and one directly under the gate. The one directly under the gate is called a shadow loop. The way this set up would work is if a car is coming or going while the gate is opening or closing part of the car should be over one of the two safety loops that are right past the gate in the open and closed position. When the gate is open or closed and not moving the shadow loop comes into play. The shadow loop is only active when the gate is not active. Because it is directly under the gate path it becomes inactive when the gate begins to move so it will not detect the gate itself. If a car is in the path of the gate before the gate has started to move the shadow loop will stop the gate from beginning. All safety, show and exit loops are the exact same product; what makes it a specific type of loop is the terminal the loop detector is connected to.
Photo eyes are the residential version. These are the same devices most are familiar with that are at the bottom of most garage door openings. If the beam that is crossing the driveway is broken the gate will stop. The reason this is popular for residential is the ease of installation. The reason it is not popular for commercial is because they are above ground and someone in a commercial setting like an apartment complex could tamper with them. For slide gate openers most use one set of photo eyes parallel with the gate. For swing gate opener installations two sets are used. One parallel with the gate in the closed position and perpendicular of the gate in the open position right past the end of the gate. For photo eyes (also know as photocells - same thing) GateCrafters.com sell mounting posts as well, they should be mounted at a height where a car or truck will break the beam.
Can you make a custom designed logo on a gate?
▼
Absolutely we can. We have a company that can water jet cut any design out of aluminum. We also have a company that can print a logo onto a round piece of plexy that can be inserted into the gate design. To do this please start by sending us the logo to sales@gatecrafters.com.
Can the autoclose function on the E-S1000H gate opener be adjusted?
▼
Yes, it is the parameter setting P6. This number is the number of seconds the board will count down before auto-closing.
Does the e-s1000H has autoreclose?
▼
Answer: Yes, it is the parameter setting P6. This number is the number of seconds the board will count down before auto-closing.
What is the maximum gate weight this opener can handle?
▼
It supports gates up to approximately 600 lbs, depending on gate length and balance, making it one of the most robust DIY-friendly solar openers on the market.
Is the E-SL 1800 solar compatible?
▼
No — it uses mains transformer power, ensuring constant-duty operation with direct AC-to-DC power delivery for maximum reliability, while optional backup batteries provide peace of mind during outages.
How are travel limits set?
▼
Roller/spring limit switches provide precise, reliable open and closed gate positions, offering a hassle-free method for consistent gate operation every time.
How long should the opener last?
▼
With proper installation and maintenance, the E-SL 1800 can last many years, providing professional-grade reliability for residential gates.
How do I contact technical support?
▼
Gate Crafters offers live technical and installation support 7 days a week from 9 AM to 9 PM EST. Simply give us a call at (800) 537-4283 for expert guidance whenever you need help.
can you make any gate design?
▼
you can submit your designs at gatecrafters.com
Can I have a wheel on my swing gate?
▼
No, it will possible be detected as an obstruction. You need to have your gate swinging freely with ball bearing hinges.
What is rack and pinion vs. chain driven slide gate opener?
▼
A chain driven operator has a chain that attaches to both ends of the gate using a bracket. The chain runs the length of the gate and is feed through 2 idlers and a power driven gear. The advantage of chain is that it is very easy to install - especially on round tube gates like chain link. The disadvantage of chain is the fact it is noisy and usually leaves a line of grease under it across the driveway.
Rack and pinion gate openers have a large following in Europe. There are sections of rack that get bolted to the bottom part of the gate forming a straight, level bar sticking about an inch off the side of your gate spanning the length of the gate. On the bottom of this bar there are teeth that face downward - these teeth interact with a mechanized gear on the opener that moves the gate back and forth. The advantage of rack and pinion is that once it is installed it is quiet, highly reliable, and requires little to no maintenance. The disadvantage is that installing it at the right height on the gate and level takes more time and consideration than chain. It also may require a modification to your gate.
Can the gate opener close behind a car or is an accessory needed?
▼
You will not need an accessory to do this. All gate openers have an auto-reclose feature built in to them. This feature allows the gate to be opened via entry remote or accessory. Once the gate opens to the full open position an adjustable countdown timer built into the control board counts down and then the gate closes. This feature can always be turned and the gate will stay open until it is signaled to close again from an accessory - much like a garage door opener.
What is auto-reclose?
▼
You will not need an accessory to do this. All gate openers have an auto-reclose feature built in to them. This feature allows the gate to be opened via entry remote or accessory. Once the gate opens to the full open position an adjustable countdown timer built into the control board counts down and then the gate closes. This feature can always be turned and the gate will stay open until it is signaled to close again from an accessory - much like a garage door opener.
Can I turn off auto-reclose?
▼
You will not need an accessory to do this. All gate openers have an auto-reclose feature built in to them. This feature allows the gate to be opened via entry remote or accessory. Once the gate opens to the full open position an adjustable countdown timer built into the control board counts down and then the gate closes. This feature can always be turned and the gate will stay open until it is signaled to close again from an accessory - much like a garage door opener.
Are replacement parts available?
▼
Yes, we carry one of the largest selections of replacement parts for all of our current gate openers and even some that are no longer in production. We have a replacement parts category - look on the left side navigate down towards the bottom, you should see a link entitled Replacement Parts.
How can I submit a full custom gate design
▼
Full custom designs would need to be submitted directly to our gate designers via email at gatesalesatgatecrafters.com . Be sure to include contact information so one of our design specialist can contact you.
Do I need anything inline to use the 10 Watt panel to not overcharge a battery?
▼
It all depends on what gate opener you are using. All of the systems we sell, except the Apollo models, control the charging through the control board. The Apollo systems only require a charge controller for the battery if you are using over 10 watts.
Can I close my gate from the interior station of the F3100MBC GTO/Mighty Mule keypad intercom when my guest leaves?
▼
The F3100MBC Keypad Intercom made by GTO / Mighty Mule (http://www.gatecrafters.com/product_detail_1019.aspx) is not able to open or close the gate from the interior station. There is a button on the interior station to assist in operating the gate but it will not directly activate the gate opener.
When the button on the interior station is pressed it will momentarily change the state of the keypad so any button on the keypad can be pressed to activate the gate opener. However someone has to press a button on the keypad to activate the gate opener.
If a guest was leaving the keypad would be on the opposite side of the driveway as the driver side of the car and it would not be easy for the guest to assist in this. So we have to answer this question as no, you cannot close the gate using the interior station on the F3100MBC to close the gate.
A great way to remotely activate the gate would be the GateCrafters long range pack:
http://www.gatecrafters.com/product_detail_938.aspx
you could utilize this and the keypad/intercom so communication and gate activation is possible.
How do I program the Estate Swing E-S 1600, E-S 1602, E-SC 1600, E-SC 1602 gate opener?
▼
This is a very important procedure, without doing this the gate opener will not operate because it does not have a run time programmed in. Also if you lose power for a long period you may have to do this again if the gate opener is flashing OP and then CL on the display without moving.
To program the gate opener run time:
1. Move the gate half way between open and closed and lock the gears engaged.
2. Press and hold P2 until A4 shows on the display.
3. Press the button on the remote, the display will change to PR.
4. The gate will begin to close (if dual both will close but with a 2 second delay between gates)
5. Once closed the gate will automatically open.
6. Once open count for the number of seconds you would want the gate to normally pause for before automatically re-closing and then press your remote again. (If not using automatic re-close press your remote any time after the gate reaches the open position)
7. The gate will close. Once fully closed the programming sequence is over and it is normal operation.
What comes with the wood / vinyl driveway gate frames made by gatecrafters.com?
▼
The
wood vinyl driveway gate frames from gatecrafters.com come with hinges and the frame. The hinges are ball bearing hinges. You will need 3/8 inch bolts to attach the hinge plate to a post. You will also need fasteners and planks of wood or vinyl to attach to the frame to complete the look of the gate.
Why does the 3 rail gate frame come with primer?
▼
The 3 Rail gate frames are made of aluminum. The aluminum will not rust however it can become discolored if left uncoated. We provide a can of self-etching primer made specifically for aluminum as a base coat for painting the aluminum. We do this because paint may be easy to find, but self-etching primer is not and we want to make this project of installing your 3 rail gate kit as easy as possible.
What is a charge control board used for and where can I find one?
▼
Charge control boards have many different uses however in our gate opener business they are used to regulate the incoming power to a battery to keep it from over charging.
We have the following units:
The morning star sunguard - this is only for use with solar.
The Estate Swing charge controller - this is for use with solar or transformer.
Do i have to go under my driveway to install a dual gate operator?
▼
If you want to install a true
dual gate opener where the two units work in coordination with each other than yes.
If you have an expansion joint in the driveway then, depending on the model gate opener and the thickness of the wires crossing the driveway, you may be able to utilize that instead of going under the driveway.
We have instructions for easier tunneling under the driveway: Click Here
Another option some choose is installing two single gate openers on each side of the driveway. However this option is more expensive and does not behave like a traditional dual gate opener that is coordinated on opening and closing. This only works when you use a gate opener remote with two buttons and you press one button to open one side and the other button to open the other. The driveway gate leafs cannot over lap nor can you use a gate lock. Some try to use a single button remote but the issue with this is if you press the single button and one side opens and the other misses the signal then when you press the remote again it will start the second side and stop the first side. The two driveway gate leafs will be out of unison and become very frustrating to get coordinated again.
If the hinges are steel, will the rust?
▼
The
hinge barrels are primed in a non-rusting primer and then painted. As long as they do not get damaged and proper year to year maintenance on the coating is performed they will last decades. The hinges themselves are made of galvanized steel preventing it from rusting.
Does the e-s1000H has autoreclose?
▼
Yes, every gate opener on our website does have auto re-close built into the control board. This is a gate opener standard, we do not know of a brand of gate opener that does not.
USE OF GATECRAFTER LOCK WITH SENTRY DUAL. ALSO CAN I USE A GARAGE DOOR OPENER FOR A TRANSMITTER
▼
The sentry dual gate opener does not have a delay between leafs (meaning one gate openers first and then the second opens). The gate crafters gate lock does require this because the lock does not have much play in it. You must use the sentry gate lock with a dual sentry gate opener. A garage door opener remote can be used if you purchase a compatible receiver to that remote and wire it to the gate opener.
How many volts should the transformer show
▼
It all depends on the transformer.
On the label of the transformer you will see specifications and it will say Primary / Secondary or Input / Output. Primary should always be 120VAC 60 hz.
The Secondary will be the voltage that you should be seeing (within a few volts, it is not uncommon for an 18v transformer to read 20v) on your multimeter. Pay close attention to AC or DC because most multi-meters need to be set to AC or DC and if you check on the wrong setting you will read 0 volts. Even if you have a DC gate opener many times they use an AC output transformer. The board rectifies it to DC, they do this because AC travels a longer distance.
What is the warranty on Estate Swing gate openers.
▼
The vary but most of them are 5 years mechanical and 1 year electronic.
Can I pick up?
▼
Yes, We are located at: 13100 State Road 54, Odessa, FL 33556
Is this slide gate opener suitable for commercial use?
▼
While it’s optimized for residential driveways, the E-SL 1800 provides professional-level reliability and constant-duty operation, giving homeowners the confidence of commercial-grade technology in a home setting.
How does a slide gate opener differ from a swing gate opener?
▼
Slide gate openers move gates sideways along a track, ideal for properties where swing clearance is limited, giving you more flexibility and a cleaner, more space-efficient installation.
Does this opener include a free extra remote?
▼
Yes — a bonus free remote comes with the unit, so multiple family members can operate the gate immediately without extra cost, increasing convenience and security.
Why choose a 24 V DC system?
▼
24V DC motors are highly efficient, lower maintenance, and provide smooth starts and stops, delivering quiet, consistent operation while reducing wear on mechanical components for long-term reliability.
What does “constant duty” mean?
▼
The E-SL 1800 can run repeatedly without overheating because the transformer supplies full power directly to the motor, offering unmatched reliability compared to battery-only DIY openers that can stall under repeated cycles.
How does this model compare to belt-drive slide openers?
▼
Rack-and-pinion systems like the E-SL 1800 are engineered for durability, precision, and power for heavier gates, giving homeowners professional-grade performance in a compact, discreet housing.
How far does the remote typically work?
▼
Remotes generally operate up to 300 feet in open areas, allowing users to activate the gate conveniently from vehicles or property entrances with confidence.
Is this opener weather resistant?
▼
Yes — outdoor-rated electronics and housing protect the unit in standard residential environments, ensuring reliable performance in sun, rain, or snow.
Can it handle uneven terrain?
▼
The opener works best on level tracks for smooth, efficient operation, but with proper installation, it still maintains reliable gate automation on most residential sites.
Are remote controls easily replaceable?
▼
Yes — additional or replacement remotes can be programmed easily, giving flexibility for expanded household or guest access.
Does it support auto-close functionality?
▼
Yes — auto-closing can be enabled via control board settings, providing added convenience and security for your property.
How does this model differ from lighter Estate Swing slide models?
▼
The E-SL 1800 features a larger motor and built-in transformer, making it ideal for heavier gates, offering professional-grade power and constant-duty operation that lighter models cannot match.
What warranty does the E-SL 1800 come with?
▼
Comes with a 5-year mechanical and 1-year electrical limited warranty, ensuring long-term reliability, durability, and confidence in your investment.
How far can I locate the transformer from the gate?
▼
The transformer can be placed up to ~144 feet from the control board using proper gauge wire, offering flexible installation options to fit your property layout.
What gauge wire should I use?
▼
Heavier low-voltage wire (16 AWG for short runs, larger for long runs) ensures reliable operation and safe, efficient power delivery to the gate opener.
Do I need to bury wiring underground?
▼
Yes — bury low-voltage wiring to protect it from damage, weather, and pedestrian or vehicle traffic, giving your installation a clean, professional look.
Is manual release provided?
▼
Yes — a key-operated manual release lets you operate the gate by hand during power outages, ensuring reliable access in any situation.
Should the gate be level before installation?
▼
Yes — properly aligned and level tracks and gates ensure smooth operation, reduce wear on components, and deliver professional-level performance.
What is required to mount on concrete or steel posts?
▼
Use the appropriate anchors or brackets for your post material, providing a secure, long-lasting installation.
How do I mount safety sensors?
▼
Photo eye brackets are installed on opposite sides of the gate and wired to the control board, protecting people, pets, and vehicles.
Can I install a wireless keypad or entry system?
▼
Yes — most compatible keypads integrate easily with the control board, allowing secure, keyless entry and added convenience.
Should the control box be sheltered?
▼
The control electronics are outdoor-rated, but additional coverage helps protect them from direct rain and extends the life of your investment.
How do I test limit switch settings after installation?
▼
Use the manual control buttons to run open/close cycles and verify stopping points, giving confidence in safe, professional operation.
The gate won’t open — what should I check?
▼
Check remote battery, transformer output, and wiring connections to quickly restore smooth, reliable operation and maintain security.
The gate stops mid travel — why?
▼
Limit switches or safety devices may be triggered. These built-in safeguards protect people, pets, and property while maintaining dependable gate operation.
The remote range seems short — what causes this?
▼
Obstacles, antenna orientation, or interference can affect performance. Proper placement ensures full convenience and functionality.
Can weather affect performance?
▼
Extreme temperatures may temporarily slow DC motor operation, but the constant-duty design ensures reliable, professional-grade function in most residential climates.
The gate reverses unexpectedly — why?
▼
Obstruction sensors detect potential blockages and reverse the gate to prevent damage, ensuring the safety of family members and property.
Safety sensors aren’t triggering — what do I check?
▼
Ensure sensor lenses are clean and aligned properly across the gate, protecting everyone while maintaining smooth operation.
Does the gate opener need periodic maintenance?
▼
Yes — check bolts, tracks, rollers, and sensor alignment regularly to ensure long-lasting, worry-free performance.
The gate moves slowly — what’s the cause?
▼
Clean tracks, check wheel rollers, and ensure adequate voltage supply to maintain smooth, reliable operation every time.
Why is the opener noisy sometimes?
▼
Noise is usually caused by debris, misalignment, or worn rollers. These are easy to correct to restore quiet, professional-level operation.
Does the warranty cover parts only or labor?
▼
Warranty covers parts only, ensuring that the mechanical and electrical components are protected for long-term peace of mind.
Can accessories fail separately from the opener?
▼
Yes — remotes, sensors, and keypads can fail independently, but all are supported with replacement options for convenience.
Does surge protection help?
▼
Yes — surge protection safeguards the opener from lightning or electrical spikes, ensuring your E-SL 1800 keeps running reliably and giving you peace of mind that your investment is protected.
Why won’t the manual release work?
▼
Make sure the key is fully engaged and power is off. This provides a safe, reliable backup to open your gate manually whenever needed.
Can pets trigger the gate?
▼
Properly installed sensors minimize false triggers from small animals while keeping your family safe, combining convenience with professional-grade safety.
The gate doesn’t fully close — what should I adjust?
▼
Reset the limit switches to ensure the gate fully closes, giving secure operation and consistent, smooth performance every time.
Can I re-program remotes if lost?
▼
Yes — old codes can be cleared and new remotes re-programmed easily, letting you control access with flexibility and confidence.
The opener indicator lights aren’t on — what now?
▼
Check transformer output and fuses to restore system visibility, ensuring reliable operation and clear monitoring of your gate’s status.
Can the opener work during a power outage?
▼
Optional battery backups (sold separately) allow continued operation, keeping your gate functional and your property secure even during power loss.
Is it safe around children?
▼
Yes — the E-SL 1800 meets residential safety standards, providing both protection for children and confidence for homeowners.
Why does the gate hesitate to start/stop?
▼
Adjust the force and pause settings on the control board for smooth, dependable operation and professional-grade performance every cycle.
Where can I find installation manuals?
▼
Manuals are available online at Gate Crafters manual page for easy 24/7 access to clear DIY instructions.
What do I do if the motor overheats?
▼
Allow it to cool. The constant-duty design prevents overheating, ensuring reliable, long-lasting performance for your driveway gate.
what if I have reached my limmit for the day and was not away durring purchase.
▼
we can manually charge your credit card accordingly with your authorization to avoid this.
What is included in the gate opener kits?
▼
Gate opener kits from GateCrafters.com are all designed for the DIY customer.
Here is what all of them have: The motor, the control board, control box, a power source, brackets for mounting the motor, receiver, remote, and manual.
Some have additional products like multiple remotes, antennas to boost the receiver, or hardware to mount the brackets to the post and gate.
What you will need to purchase in addition with all gate openers we carry: Low voltage wire
What else you may need depending on the model: More or different hardware depending on your post or gate style (nuts and bolts), a battery (if it is a battery operated system that doesn't include one).
Each of our gate opener descriptions details what will be needed with that particular opener; please review those for additional details. However one key note is with all GateCrafters.com gate opener kits your additional purchase will be minimal and easily purchased locally.
Will the gate opener hold my gate closed?
▼
The gate opener is designed to be a device of convenience - not security. So yes, the gate opener will close your gate and stop in the closed position however external forces such as pushing or wind will have a very large effect on the gate opener arm as the gate gives those forces much leverage. We suggest in almost all scenarios to purchase a gate lock to secure your gate in the closed position and prevent damage to the gears and arm of the opener.
How do I keep my gate secure?
▼
The gate opener is designed to be a device of convenience - not security. So yes, the gate opener will close your gate and stop in the closed position however external forces such as pushing or wind will have a very large effect on the gate opener arm as the gate gives those forces much leverage. We suggest in almost all scenarios to purchase a gate lock to secure your gate in the closed position and prevent damage to the gears and arm of the opener.
My gate is very light. Can I exceed the rated length?
▼
Gate openers are rated based on the length or the weight of a gate. Some times it is a fixed scale, meaning the gate opener is rated for a length and a weight. For example if a gate opener says 12 feet AND 400 lbs, the manufacturer is saying that the gate can be both. Some times it is a sliding scale, meaning the gate opener is rated for a length or a weight. For example if a gate opener say 12 feet OR 400 lbs then at 400 lbs the gate should be shorter and a 12 feet the gate should be lighter. All the gate openers with this type of rating on GateCrafters.com have the sliding scale is the listing of the gate opener.
In either case you never want to exceed the ratings. Even if your gate is very light the gate opener will not have sufficient leverage on the gate because of the length. So the weight of the gate, although light, has a magnified impact on the gears and motor of the opener causing additional wear and most likely will cause unexpected obstructions.
How can I submit a full custom gate design
▼
Full custom designs would need to be submitted directly to our gate designers via email at gatesales@gatecrafters.com . Be sure to include contact information so one of our design specialist can contact you.
How can I submit a full custom gate design
▼
Full custom designs would need to be submitted directly to our gate designers via email at gatesales@gatecrafters.com . Be sure to include contact information so one of our design specialist can contact you.
My gate opens slow, how can I fix this?
▼
If the system runs on a battery, it could need replacing. The battery should be around 13.8 volts fully charged and drop no less than a volt under load. Batteries with a lower voltage will cause the gate to run slower if not fully charged. If it is a 110V system, make sure all hinges are well greased. Remember due to safety specifications, gate are not typically able to travel faster than one foot per second.
I am running low voltage to my gate, how can I also utilize this for gate lights?
▼
Low voltage for your gate opener will have to be separate wires from your low voltage lighting. The reason they have to be separate wires is the transformer for the gate opener is specifically designed to be the right output for the control board of the gate opener. Low enough to not burn the board yet high enough to effectively charge the battery or run the gate opener. If you tire dot borrow power for the lights it would make the batteries charge too slow or the gate opener unintentionally obstruct. If you tired to increase the output of the transformer to effectively feed both the lights and gate opener, if the lights were ever no absorbing the extra amperage this would be too much for the gate opener to handle and would burn your control board.
So to do this most efficiently use a shovel or hoe and make a narrow V shape trench in the ground from the outlet to the gate and the end location for the lights. Purchase direct burial low voltage wire for both the gate opener and lights. Please see the specified gauge for each from the instructions for the lights and the gate opener. Lay both runs of wires in the bottom of the V shape trench and step on the top of the hole to close the V shape trench back in on top of the wires. the best outlet to use is one in your garage because the outlet will need to be covered. It is also smart to use a surge suppressor at the outlet and an in line surge suppressor at the end by the gate opener control board as long runs of wire under ground can attract surges. Use a piece of conduit where the wires protrude from the ground at both ends. This will help protect the wires from being damaged when doing lawn maintenance (ie a weed whacker or lawn mower cutting the wires). Then make your connections to your gate opener and your lights and also to the transformers on the other end at the outlet according to the instructions of both devices.
Do you need to lubricate the chain for your automatic gate opener?
▼
Your chain should be sprayed with a light lubrication, like WD-40 or a spray on lithium grease. Don't use any think grease as the grease can cause stuff to collect on it and be less helpful than intended to be.
Will the long range reciever will work with my Eagle Gate Opener?
▼
The long range receiver will work on any system with a 2 wire terminal dry contact input and a 12 - 24 VDC power output. This device is a universal device and works with most systems, not just gate openers but garage door systems as well.
I live in Quebec Canada and in winter it can get -40 Celsius or -40 Fahrenheit, what gate opener can I use?
▼
We have plenty of gate openers that are rated to handle -20 degree Fahrenheit. The gate opener I would recommend would be the E-S 500/502 depending on if you have a single or dual gate.
Can I replace my standard receiver with a long range receiver?
▼
Yes you may and in most cases you can leave the standard receiver installed as well.
Are Liftmaster garage door openers compatible with the gate openers?
▼
For LiftMaster garage door openers to work with your gate opener, you will need to have a LiftMaster compatible receiver installed. There are a few different models. In most cases all we need is the model number of your remote and we can tell you the type of LiftMaster receiver you need to install on your gate opener to work.
Does the aligment to the sun will change the voltage?
▼
The solar panel needs to face south in the northern hemisphere (any where north of the equator) and opposite of that south of the equator. It will make a big difference, as to how much you panel will charge your battery. Also in indirect sun the amount of power it produces will be less and also less on cloudy days. The amount of sun and at the angle at which the sun hits it, will make a difference too.
Are the hinges welded or bolted on to the posts you sell?
▼
Since GateCrafters is a full service fabrication department we weld all of our hinge barrels onto our gate posts. This is one of the services that makes GateCrafters.com stand apart from other online retailers that simply resell products.
Are the posts strong enough to support the gate?
▼
Yes, our posts are made of 11 gauge steel (wall 1/8" thick). We have used these posts for years including on our own front gate which has very ornamental 16 foot gates hanging on them.
How much weight will a 3 rail gate frame support?
▼
The driveway gate 3 rail frame is designed to hold 3) 4x6 planks. The material should be able to support about double this weight.
margaux@webdirectbrands.com
▼
From the inside face of the post to the inside face of the frame of the gate would be 3 1/2 inches. However this is adjustable because the J bolt is threaded and can be adjusted horizontally. Also this assuming our gate is being used, which has a 2" frame. If the frame is bigger the gap will be smaller.
Do I have to use the Bell icon button on the Estate Swing 433 keypad?
▼
Yes, the door bell button is what sends the signal to the gate opener receiver. When typing in a code into the keypad you should press "door bell" your code and then "door bell" again. The first door bell wakes the keypad for the sleep mode. It enters sleep mode to conserve battery. Because of this feature the 9 volt battery typically last 3-4 years. The second pressing of the door bell button sends the signal to the gate.
I have dual swing gates that are push to open whats a good gate opener for them?
▼
If you are push to open you are actually in luck in terms of your selection of gate openers. One of the main factors when your gate is pull to open is the size of the post or column. If your post or column is too large then at time you will need to use a gate opener that is larger (and more expensive) than what you would otherwise need for your size gate to accommodate the large setback. So for this situation you would want to answer the questions in our gate opener specification tool to determine the best opener for your gate size, power availability, and usage: http://www.gatecrafters.com/gate_openers.aspx
How much "play" is there in the trolley adjustment on a slide gate since the brackets are pre-welded?
▼
The trolley has a threaded rod attached to it that goes through the bracket that is welded on the gate. This threaded rod has 2 inches of vertical adjustment that can be used for leveling the gate.
What type of hinges do I need for my Estate Swing 14 foot Single Swing Gate?
▼
All of our swinging driveway gates get used with ball bearing hinges. If you purchase our 3x3 posts with hinges they come with hinge barrels pre-welded to the posts. Or you can purchase the hinge barrels welded to plates and bolt the plates onto existing posts or columns. Both styles the barrel is on the post or column and the J bolt goes through the frame of the gate.
Can the Aiphone C-123LA be used as a two way intercom system
▼
No, on the Aiphone C-123LA (Dual indoor stations is the C-123LW) the master stations can talk with the door station one at a time. However they cannot talk to each other. The master stations have a component that prevents internal communication. This system is meant to be a gate or door communication system. Both master stations can open the gate.
Do you have recommended installers?
▼
We do not specifically recommend any installers for the automatic gate openers that we sell. This is because as a company we specialize in assisting the DIY market (do-It-Yourself) and encourage our customers to install the gate openers themselves.
If you do decide to hire someone to install your gate opener a handyman service is a good place to look. Also fencing installers typically have experience in gates. One thing to be aware of when dealing with installers is their time is what you are primarily paying for. So plan to not waste, overspend on it, or have it over sold to you it by understanding your system, the components and how they interact. Our knowledgeable staff can help explain in writing (email: sales@gatecrafters.com) what components are needed for your system, what extras like wires, bolts, etc will be needed to be purchased by the installer. We can also describe the procedures they will be going through and the time it may take. This will help you gauge the hours they quote and supplies they need vs reality. Also, it is very important to not schedule the installer until everything arrives and is accounted for as present and in good condition. Another great reason to still be informed about the system even if you are hiring someone. Do not schedule the installer based on a tracking number, there could be damage or lost components and then you will most likely have to pay the installer for their time showing up and not being able to do the job. Use our knowledgeable staff to help you determine that you are ready to have the installer come to the property.
What is the coaxial connection for on the side of my ER-294 Long Range Receiver?
▼
This can be used in conjunction with an antenna that can be mounted up high to get better line of site. The receiver itself has a grey wire that is an antenna. However the receiver is not water tight and needs to be kept in a housing. So the grey antenna can be dangled out of the housing but it would be difficult to place it so it achieves better line of site. This is when the coaxial connector comes into play.
We have an antenna pre-sized for 318 mhz on the site. It s the LR318 Extended range antenna. The can be purchased and modified for 433 mhz. The length of the antenna at the end of the coaxial cable is what has to be a specific length for each frequency. The 433 antenna should be approximately 6.7 inches long.
What is the difference between the GCLOCK and the Estate Swing Low Impact Gate Lock?
▼
The GCLOCK is made for GateCrafters.com as a store brand version of the Estate Swing lock. The only real difference between the two is the GCLOCK is not powder coated black. It is zinc plated steel.
If there is not enough clearance to mount the opener on the inside and have it pull to open, can I mount it on the outside of the gate and set it up push to open?
▼
Yes with any linear actuators installing the gate opener in a push to open configuration and then having it push the gate open to the inside of the property is a viable option.
Typically there are two ways to install a gate opener. Pull to open: The opener is mounted on the inside of the property with the piston fully extended in the closed position. And then as eh piston retracts it pulls the gate open in towards the property. Or it is installed Push to Open: The opener is also mounted on the inside of the property with the piston fully retracted in the closed position. As the piston extends out it pushes the gate open away from the property.
The main thing to remember about the above two statement is the direction the gate is moving (in toward property or out away from property is all relative to the side of the gate the the opener is mounted to. In both scenarios it was stated the opener is on the inside of the property. If the opener is on the outside of the property, the extending and retracting would have the same reaction on the gate for opening however the gate would be moving opposite as described because the opener is mounted opposite as described.
For a Diablo loop detector what does it mean fail safe or fail secure?
▼
A fail safe detector will output “detect” when the loop circuit is failed. On the free exit loop this will keep the gate open until the situation is fixed. This is useful in applications where it is important to allow traffic flow to continue. A fail secure detector will never output “detect” when the loop circuit is failed. This will keep the gate closed. This is useful in high-security areas or installations where containment is needed. The DML-9LP is a fail secure detector. Note: Never use a fail secure detector on a safety loop.
What is the difference between the E-S 300 and E-S 500?
▼
The Estate Swing E-S 300 and E-S 500 use the same control board, have the same motor, and are similar in all other kit inclusion aspects. The only difference is the length of the motor piston. The E-S 300 has a 300mm stroke length and the E-S 500 has a 500mm stroke length. The stroke length is the distance the piston travels in and out. The longer the stroke length is the larger the gate the operator can handle.
Will the EST-1000 GSM intercom operate off a solar panel and deep cycle batteries?
▼
The EST-1000 GSM intercom can be used off solar power and a deep cycle marine battery however it does require a significant amount of energy. The intercom, because it is constantly connecting to a cellular network, requires about 150 milliamps at all times 24 hours a day. It would take about 20 Watts of solar and a 100 amp hour deep cycle marine battery to be maintained solar.
How heavy is the 14 foot single Estate Swing gate?
▼
The Estate swing 14 foot driveway gate weighs approximately 140 lbs. Despite its light weight it is one fo the strongest driveway gates in the industry because it is made of 6061-T6 airplane grade aluminum.
Where do your cedar gates ship from?
▼
The cedar gates ship from Massachusetts.
How much is the E-S allegiant single gate opener?
▼
Please refer to the product page of the Allegiant gate opener for pricing information:
http://www.gatecrafters.com/product_detail_32448.aspx
Can I use my GTO transmitter on a replacement gate opener of a different brand?
▼
Not with the standard gate opener kits. However you can purchase a GTO receiver and wire that into any gate opener: http://www.gatecrafters.com/product_detail_7302.aspx
If you do add on the GTO receiver this will not limit your usage of the remotes from the new brand of gate opener. As long as the original receiver of the gate opener is still installed as well both remotes will work.
How much are remote transmitters for the garage or gate?
▼
It depends on the brand of transmitter that you are looking for. On GateCrafters.com we have a larger selection that covers most gate openers and some garage door openers:
http://www.gatecrafters.com/gate-opener-transmitter-accessories
Does the GTO/PRO FM144 gate lock work with the Estate Swing gate openers?
▼
Yes it does. However the Estate Swing gate lock would be a better fit. The GTO/PRO FM144 gate lock draws about 3 amps when releasing. The Estate Swing gate lock only draws about 1 amp. The Estate Swing gate openers have a power output to the locks from the board for easy wiring so it would be best to have the lowest load possible from this output. GTO/PRO locks are designed to pull from a battery where load does not matter as much.
Are the driveway gates painted or powder coated?
▼
The gatecrafters driveway gates can be either painted or powder coated. We use rustomlum paint for painted gates with a self-etching primer. If powder coating is chosen we send the gates to local powder coating facility and the gate finish comes with an industrial 5 year warranty.
In either case because we build out of aluminum so rust will never be an issue with a gatecrafters driveway gate.
What is the setback of a gate?
▼
The setback of the gate is the distance from the center of the hinge to the mounting position of where the gate system pivots off the post brackets. This measurement is different for each system and is CRITICAL to the proper degree of opening.
What is the difference between the ES lock and the GC lock?
▼
The ESLock is painted in a black powder coat finish, the other GCLock is a standard galvanized silver color.
What is the difference between the E-S 1000H and the Allegiance?
▼
The E-S 1000H is a little more simplistic. It uses a fairly unsophisticated circuit board and magnetic limit switches in the open and closed position. It basically turns on and runs from one limit to the other.
The Allegiant is a more technologically advanced. It uses a fixed limit in the open position and a learned closed position through programming. It has planetary gears which make the operator incredibly efficient. Also the control board has an add-on professional board that has inputs for loops and other devices.
which lubricant do I use to lubricate my sliding gate chain?
▼
To lubricate your sliding gate opener chain use a standard bicycle chain lubricant. You can find this at sporting goods stores. The lubricant typically comes in a small squirt bottle. You will put a small amount on each link of the chain. Then run your gate opener a few times open and closed to help distribute the lubrication.
How do I adjust sensitivity on exit wand sensor?
▼
Burying the exit wand deeper is the typical answer to this question. However we see in your details that you already have the wand buried 3 feet deep and the sensor is still being triggered fairly easily. Our next suggestion if that is not working is to add resistance to the ground lead of the exit sensor. This can be done with a potentiometer. You had also asked in your details if putting the sensor in conduit would help make it less sensitive. This will help a little but typically putting it in conduit is to fix the wand from picking up interference from ground water.
Does the T5 needs special brackets for the push to open application?
▼
Yes and no. They do not sell any special brackets for this and in some applications where the brackets can be mounted behind the gate on the same post or column surface as the driveway gate you will not need anything else. However if you are mounting on the rear of the post or column the brackets may not be long enough and angle iron may be needed.
How many transmitters do you receive with the GateCrafters long range pack?
▼
The long range pack has one transmitter and one receiver. The reason we combine a receiver and transmitter is without both the receiver AND transmitter the items individually are not compatible with other products. Both are needed.
Can I retrofit a 1050 board into a 1550 apollo from 1997?
▼
Yes you can. All Apollo products from the beginning of the company's existence are compatible with the new 1050 board. For mounting the board in the box you can either affix with your own screws or purchase conversion brackets that allow the board to fit on the existing uprights from the old board.
Can a loop be activated and deactivated like a timer?
▼
Yes a loop can be controlled for time of day usage via a timer. The loop activates the gate to open by momentarily closing a circuit to the gate opener. This means the loop detector will have two wires coming off of it going to two terminals on the gate opener. If you take one of those wires and run it through the relay of the timer then the timer will be part of the loops ability to momentarily close the circuit to the gate opener. So if you program the relay of the timer to be off at night, then the circuit will be open inside the timer. Since one of the wires from the loop detector is connected to the control board through the timer the loop will no longer be able to momentarily close the circuit to the gate opener. Thus the gate opener will not be able to be opened during off hours via the loop.
Can the Sentry or Patriot gate opener be used as a plug-in opener?
▼
The gate opener will always run off of a battery. How you charge the battery is up to you. It can be done through a plug in trickle charge. However this is as close to a "plug-in" gate opener as you can get using a Sentry or Patriot.
Is the low impact lock compatible with the Mighty Mule 600?
▼
Yes it is, the Mighty Mule 600 is the same gate opener as the Mighty Mule FM 500, only it is sold through tractor supply and they put a different accessory or two in with it. Here are the wiring instructions: http://www.wdbmedia.com/GATECRAFTERS/Gate%20Opener%20Manuals/876/31810.pdf
How or what do I measure my gate opening size and setbacks for a single swing gate?
▼
For a driveway gate from GateCrafters you would want one of two measurements:
If you are planning on using our posts you would want the width from outside post placement to outside post placement. Then we can build a gate to fit within that space accounting for the posts, hinges and gate. So for example, if you have a fence that comes near the driveway on both sides and the gate posts are going to be next to the end post of the fencing then your measurement would be from fence end post to fence end post.
If you have columns or posts that you want to mount our gates to then you would measure from inside face of post to inside face of post. We would design a gate and hinges to fit in that space.
For the setback for the opener, this would only really come into play if using your own posts or columns or if you have a fence or wall perpendicular to the gate right where the posts are. Every opener is different. You would look at the setback of the chosen gate opener and make sure that you mount the gate with enough space to fit those measurements.
I have two fm350, can i make them a dual unit?
▼
Yes you can, you would have to add part:
R4117. This is a dual wire connector to link the two units together.
Does a loop need a loop detector to work?
▼
Yes it does. A loop itself is nothing more than two wires that are twisted together and sealed into a casing to hold the correct number of twists per foot to create induction. The loop detector is what energizes the loop and detects cars. You will need one loop detector for each loop.
I have a Zareba opener is not opening all the way or sometimes opens too far sometime. Or just doesn't want to do anything.
▼
The Zareba brand gate opener was a battery operated system. the first place to look in all battery operated gate opener systems when there are issues is the battery. The battery should be reading at about 13.2VDC and not drop more than about .2 volts under load. You can read it under load by placing your multi-meter on the battery leads and leaving them there as you cycle the gate.
How to you measure for ordering a driveway gate?
▼
If you already have posts the most important measurement when designing a gate is the inside face of one post to the inside face of the other post.
If you do not have posts and you are using our posts the most important measurement is the total area you want to have the posts and the gate; essentially outside face of post it outside face of post. This is typically in between two end fence posts or landscaping on opposite sides of the driveway.
RPM Reversal diagnostic code on an LA400
▼
If having an issue with a Liftmaster LA400, LA500 or LA412 automatic driveway gate opener in that you are getting a 5 blink diagnostic RPM reversal code, please do the steps on the following page:
http://liftmaster.custhelp.com/app/answers/detail/a_id/4323
Battery specs for Apollo 1550 ETL gate opener
▼
The replacement battery for all Apollo gate openers should be a 12VDC Group 24 battery, this size is ideal for fitting into their control box.
The electromagnet is not releasing the gate when I push the remote the first time. It releases after pressing the button several times.
▼
The way an electromagnetic lock works (mag lock) is it stays locked when power is being supplied to it. If you remove power it is then unlocked or released. So if there is a case in which the lock is not releasing it is not the lock that is the issue, because there is not a way for the lock to remain locked if the power is indeed being removed from it which would be the function of the gate opener and a relay.
So knowing this it should be looked at how the power is being disconnected from the lock at the beginning of the cycle. Some gate openers do not have a lock release so a relay is used. If a relay is being used the relay should be getting triggered by the motor leads. This is the more reliable way to release the lock. It would mean that if the motor is moving we would know for a fact power is being supplied to the coil side of the relay, it would be impossible for it not to be if the motor is moving. If this is the case with your opener the relay is probably bad. Or you are triggered the relay from someplace else on the board and you should move it.
If you are using the board itself to interrupt power to the mag lock then you would need to see what conditions must be in place for the relay to activate and account for that. For example, on an Apollo 1050 board there is a mag lock release built in. The release will happen if the board is on an opening cycle from the closed limit switch. However if you have an issue where sometimes the closed limit switch is being reached in the closed position and sometimes the arm is stopping just shy of the limit switch (usually due to a physical limitation like a positive stop and the limit is set up to have the gate push against the stop to reach the switch), on the occasions where the limit switch is not reached the gate will appear closed because the lock is holding it there; but when triggered to open the lock will not release because it is not an opening cycle from the closed limit switch. After the motor tries to open and is prevented by the lock it will reverse directions and push harder on the closed stop, after a few of these obstructions it may then finally reach the limit switch in the closed position and then it will seem to open as normal.
What is the life warranty on the 12v replacement battery of the Mighty Mule gate opener?
▼
If you are purchasing the battery made by GTO/Mighty Mule they only have a one year warranty and the life expectancy is 3 years.
GateCrafters.com has the same voltage/amp hour rated battery that comes with a 5 year prorated warranty. The expected life span is 5 years and if it dies before then you only pay for the length of the 5 years you have used and receive a new battery as a replacement. For example if the the battery dies 36 months into the 60 month (5 year) pro-rated warranty we would take the price of a new battery, divide it by 60 and multiple that times 36 [Example: ($34.94/60)*40=$19.81, your pro-rated battery price]. This would be your pro-rated price on a new battery.
http://www.gatecrafters.com/product_detail_2641.aspx
When I open gate it automatically closes a little bit on a Mighty Mule FM500
▼
The Mighty Mule series of gate openers has a fixed limit switch for the open position. If the limit switch breaks then the piston will continue to retract until it bottoms out inside the motor housing. This will cause the control board of the gate opener to react as if it has hit an obstacle and obstructed. It will then reverse directions to back up off the obstacle. If this is happening the Rev Counter board will need to be replaced. This contains the limit switch on it. This is a fairly easy part to replace and it is inside the operator arm. No special tools are need, just a screw driver.
http://www.gatecrafters.com/product_detail.aspx?productid=7382
Is there a way to install a locking device on a sliding gate (12v)
▼
Yes, we have a sliding gate lock kit. The receiving bracket has an extra side mount plate and the receiving bracket goes on the gate rather than the post. This way there is not concern of the lock wire having to extend and retract. The gate lock would stay on a post near the gate opener and the tail end is what locks the gate in place instead of the lead end of the gate.
http://www.gatecrafters.com/product_detail_33013.aspx
what is the proper setback for the gooseneck and pin pad
▼
There is no standard, this would depend on property and preference. The goose neck is designed so a car can pull close and have the keypad near the window and post further from the side of the car. Some with a larger driveway would prefer having the keypad stick further into the driveway so the driver can get very close. Others may need the full width of the driveway for trucks and need to ensure no part of the stand enters the driveway area. In this scenario the face of the stand would not enter into the driveway area and would be made within reach of a car window.
what is the best automatic gate lock for a solar mighty mule 350?
▼
The best gate lock is the Estate Swing Low Impact gate lock. The draw is only 1 amp, and this draw only occurs for the few seconds the gate opener is starting to open. Otherwise it is inert not draining your solar power. Also since it takes very little force to latch, the slow down cycle of the Mighty Mule wont pose an issue with consistently latching.
do you sell a hinge kit that provides the 2.75 inch offset required for the E-SU 2202 gate opener?
▼
We sell a weld on hinge barrel. Use steel flat bar to extend it out to be in the correct position for your mounting so it is centered over the foundation box pivot point.
The barrel gets welded to the flat bar and to the post. THe J bolts go through the frame of the gate.
Which solenoid gate lock can I use with me solar powered LA412 gate opener.
▼
You can use either the
GC Lock or the
Estate Swing lock with the LA412.
The lock will draw its power directly from the battery of the gate opener and is great for solar because it only uses power for 2-4 seconds at the beginning of a cycle and otherwise is not used.
When I close the gate it automatically reopens in 10 seconds. How do I fix it?
▼
If this is a new installation of a gate opener then it sounds like the board is set up for Pull to Open and the operation of the Motors for Push to Open. You can test to see if this is the issue by turning off Auto-Reclose on the control board. If you turn off auto reclose and it stops reopening then the above is your issue and you should see how to change push vs pull to open for your particular gate opener.
one gate is going past the other gate when it closes i tried adjusting the gate but it stills goes past
▼
This would depend on the model / brand of gate opener that you have. Some determine the stop position through a learning sequence. For those openers when doing trouble shooting the first thing we would have you do is go through the gate opener's stop position learning sequence and see if it makes it through without error.
Other gate openers have a physical limit switch. Many that have physical limit switches have a way to tell if the limit switch is being triggered through a light on the board or using a multimeter to check for continuity.
if I get one beep when I hit the button
▼
It all depends what gate opener you are referring to. for example on the mighty Mule FM350, one beep means, "Limit switch error: The circuit board cannot read the limit switch inside the operator arm. The problem could be the connection of the power cable at the Mater INputs on the circuit board, a damaged power cable from the circuit board to the operator arm, or a malfunctioning limit switch in the gate opener operator arm."
mighty mule 500 continuos beeping gate not working help
▼
Mighty mule has an extensive troubleshooting section, the beeping pattern is important to know to use this system. Also batteries at rest should read more than 13volts and should not drop more than 1/10 of o volt when the gate goes in motion. Search Google for "Mighty Mule troubleshooting guide" to find their guide.
How to wire an estate swing 1600
▼
Here is a link to the E-S 1600 Manual: http://www.gatecrafters.com/manuals/ES-1600-Manual-V-PL-PM-899.pdf Older version (legacy) manuals are avaliable at: http://www.gatecrafters.com/diy_center.aspx
How do i hook up the gate crafters lock to the new 1050 board
▼
When wiring any accessory sold by Gatecrafters to an gate opener sold by Gatecrafters use this link to find the proper wiring guide:
Do you have a model with a heater so It can be used in cold weather
▼
Models that work best are ones that use power directly from its source. Battery powered openers have difficulty operating in cold weather. The Estate swing E-S 1600/02 are examples of direct power gate openers. However these gate openers need to be located closer to their power supply that battery powered gate openers. As for the wind question, all modern day gate openers need to recognize when they hit something, a car, a person or a burst of wind, they only know that something is holding them back and they will reverse. Dual gates are 1/2 the surface area and also 1/2 the leverage of single gates, they are best for windy conditions.
I have an LA 400 gate opener. It will open and close fine for a few times, and then it will open only about 1/6 of the total
▼
These symptoms are generally an indication of batteries going bad. there are 2, 12 volt batteries wired in series behind the control board. These batteries should independently read about 13.5 volts when fully charged (27 volts together) and should not drop more than 2/10th of a volt when the gate is in motion. Generally they need to be replaced every 3 to 5 years.
What are the post for your aluminum gates made of?
▼
We build Aluminum gates but the post are zinc coated steel. Steel works best for posts and our 6061-T6 Aluminum is best for gates.
Can I use one intercom on two gates?
▼
Most, but not all intercoms can be used on two gates, please check the specifics for the intercom that you choose.
can you hard wire a key pad entry to Liftmaster la412 dual
▼
On the LA412 you can either hard wire a keypad or there are several wireless keypads that will work with it.
lubricating the es1000 control arm?
▼
Some of the older models don't have the holes drilled. just drill 2 holes about 4 inches in from either end. Use silicone spray, NOT WD-40, or a garage door lube.
how can adjust how much the gate opens?
▼
On Estate swing Products there are 2 things that affect the position of opening and closing. First the limit switches are the primary way to set the opening and closing positions. the Run time is a backup to the limit switched they should be set a few seconds more than the actual time it takes to open or close.
Apollo opener support arm installation
▼
The Measurement is from the center of the pivot point for both the Gate and the Gate Opener. S the center of the gate hinge is correct.
Gate openers looses its open and closed positions
▼
This is a great example of why tech support is handled over the phone. We need much more information and have to go back and forth to even determine what type of opener you have. Please call us when you are at the gate with a voltmeter and other simple tools on hand please call from a Mobil phone with picture capabilities.
Weight of GateCrafters.com semi custom gates
▼
the base weight of an 8 foot tall gate is about 10lbs. per foot. ornamentation is extra.
Estat Swing E-S 500 wont open when unlocked
▼
Hi Joe, The likely problem is lubrication of the screw drive there is a video in you tube that shows how to lubricate the unit, this process should be accomplished every 6 months.
What is the difference between the E-S 1000H and the Allegiance?
▼
The E-S 1000H is a little more simplistic. It uses a fairly unsophisticated circuit board and magnetic limit switches in the open and closed positions. It basically turns on and runs from one limit to the other. The Allegiant is a more technologically advanced. It uses a fixed limit in the open position and a learned closed position through programming. It has planetary gears, which make the operator incredibly efficient. Also, the control board has an add-on professional board that has inputs for loops and other devices.
Does the e-s1000H has autoreclose
▼
Answer: Yes, every gate opener on our website does have auto-re-close built into the control board. This is a gate opener standard; we do not know of a brand of gate opener that does not.
Why might the gate opener stop mid-cycle?
▼
Obstruction sensing, blocked safety devices, or wiring issues may be the cause. The integrated obstruction alarm protects your gate and property while alerting you immediately to problems.
What is the warranty on this product?
▼
Comes with 1-year electrical and 5-year mechanical limited warranty, giving long-term reliability and peace of mind for your residential gate.
What is the Estate Swing E-SL 1800 gate opener?
▼
The Estate Swing E-SL 1800 is a high-powered, 24V rack-and-pinion slide gate opener designed for residential driveway gates, delivering smooth, reliable, and professional-grade automation while including free extra remotes for convenience and immediate access for multiple users.
What gate materials is this model compatible with?
▼
It works seamlessly with aluminum, wood, light steel, vinyl, and chain link gates, allowing homeowners to upgrade virtually any standard residential driveway gate with a durable, low-maintenance opener that enhances property security.
What is the maximum gate weight and length?
▼
Supports gates up to 800 lbs and 15 feet long, providing exceptional power and precision for heavier residential gates without sacrificing performance or reliability, ensuring smooth operation cycle after cycle.
Are all gate opener control boards the same and interchangeable?
▼
No, they are all specific to each gate opener and very rarely interchangeable. The main factors first looked at is the voltage supply to the motor, does it match the motors that you have. The second thing looked at how does the motor stop in the open and closed position. Some motors have a limit/rev counter combo, some have 2 limits, some have rev counting in both directions. And on top of that, if it does have limits does it have normally open or normally closed. These are all things that would have to match on motor and board.
Lastly even if both the motor voltage and stopping the motor in the open and closed is matching there is still the matter of obstruction sensing. Obstruction sensing is typically based on how motors amperage draw reacts to an obstruction. So the board will be looking for a certain amperage in a normal range and a different in obstruction range; if you motor amperage draw doesn't match what the board is looking for the motor could always obstruct or never obstruct which would be dangerous.
What is the average lifespan of a gate opener?
▼
This would all depend on the model choose, the gate it is being used on, the installation, the frequency of usage and the weather where it is installed. We would say however on most of the residential gate openers 10 years is about the expected life span with at least 1 or 2 times in that 10 years that a replacement part would be needed like a control board or limit switch.
How deep do I bury posts for driveway gates?
▼
this can not be answered as a one size fits all type of answer. Your soil type, weight of the gate, will determine the depth of the post and the length of posts needed. In general if the gate is 14 feet or less and made of aluminum the depth will be about 2 feet. But again, this a generalization, specifics would be needed for an exact answer.
How deep do I bury posts for driveway gates?
▼
this can not be answered as a one size fits all type of answer. Your soil type, weight of the gate, will determine the depth of the post and the length of posts needed. In general if the gate is 14 feet or less and made of aluminum the depth will be about 2 feet. But again, this a generalization, specifics would be needed for an exact answer.
Can the autoclose function on the E-S1000H gate opener be adjusted?
▼
Yes, it is the parameter setting P6. This number is the number of seconds the board will count down before auto-closing.
Is the Estate Swing Gate Opener suitable for both residential and commercial use?
▼
Yes, it is built for residential, commercial, and light industrial gates. It provides durable performance for frequent use while remaining quiet and reliable.
What type of gates is the Estate Swing E-S 1000H designed for?
▼
It is designed for single swing driveway gates made of wood, steel, aluminum, vinyl, or chain link, providing a versatile and reliable solution for a wide range of residential gates, backed by Estate Swing’s premium build quality.
What is the maximum gate length supported?
▼
The opener is suitable for single swing gates up to about 16 feet long, combining heavy-duty capability with smooth, quiet operation for long-term reliability.
Is this opener for residential use only?
▼
It is primarily designed for residential and light-duty applications, yet it delivers professional-grade performance that enhances safety and convenience at any home.
Is the opener solar powered or AC powered?
▼
It is solar-ready and can also be configured with an AC charging option if needed, giving homeowners flexible power choices while maintaining the lowest standby draw in its class.
Does the product include a solar panel?
▼
Yes, solar panel options are available depending on the selected package, ensuring your gate runs efficiently and sustainably with minimal effort.
Does it work in areas with limited sunlight?
▼
It can, but shaded locations may require a larger solar panel or additional battery capacity, allowing continuous, reliable operation even in less-than-ideal conditions.
Is this compatible with dual swing gates?
▼
Yes, but make sure you choose the 1000H Dual Gate opener. It offers the same high-quality performance and durable construction as Estate Swing’s single-gate models.
Can it open inward and outward?
▼
Yes, it supports both inward and outward opening configurations, giving flexible installation options while maintaining smooth, consistent gate motion.
Is the opener weather-resistant?
▼
Yes, it is designed to withstand outdoor weather conditions year-round, ensuring your gate operates reliably in rain, snow, or heat while protecting internal components.
Does it support automatic closing?
▼
Yes, adjustable auto-close functionality is included, offering a convenient, secure, and hassle-free experience for homeowners.
How fast does the gate open?
▼
Opening speed depends on gate size and settings but is optimized for smooth, controlled movement, balancing efficiency with quiet, gentle operation.
Is this opener quiet during operation?
▼
Yes, it operates quietly compared to many traditional gate openers, thanks to precision engineering and premium components that enhance comfort and longevity.
Can I use this on a sloped driveway?
▼
Yes, but proper installation and clearance must be ensured, with Estate Swing’s adjustable brackets making installation straightforward even on uneven terrain.
Does the opener include remote controls?
▼
Yes, this package comes with one remote and an additional free remote, providing easy access and convenience right out of the box.
Can additional remotes be added later?
▼
Yes, extra remotes can be programmed easily, allowing multiple users to safely operate the gate without additional hassle.
Does it support keypad or phone access?
▼
Yes, optional accessories such as keypads and wireless entry systems are supported, offering modern smart-home integration for enhanced convenience.
Is a professional installer required?
▼
No, it is designed for DIY installation, though professional help is optional. Estate Swing provides detailed instructions and live support for a stress-free setup.
What safety features are included?
▼
The system includes obstruction sensing and automatic reversal, combined with normally closed circuitry for maximum protection and peace of mind.
Is this compatible with existing gates?
▼
Yes, as long as the gate meets size, weight, and swing requirements, making it an easy upgrade to modernize your current gate with solar automation.
How long does installation usually take?
▼
Most DIY installations take 3–6 hours, depending on experience, with Estate Swing’s comprehensive manual and adjustable brackets simplifying the process.
What tools are required for installation?
▼
Basic tools such as a drill, wrenches, level, tape measure, and screwdrivers are needed, ensuring no specialized equipment is required for a professional-quality setup.
Is welding required for installation?
▼
No, the opener uses bolt-on mounting brackets, making it safe, secure, and fully DIY-friendly without specialized metalwork.
Can the solar panel be mounted away from the gate?
▼
Yes, the solar panel can be placed where it receives maximum sunlight, supporting efficient charging and energy independence even in less accessible locations.
How far can the solar panel be installed from the control box?
▼
Distance depends on wire length, but extensions are available if needed, giving flexible placement options to optimize sunlight exposure.
What happens if the battery runs out of power?
▼
A manual release allows you to open the gate by hand, ensuring uninterrupted access even during rare power shortages.
How often does the battery need charging?
▼
Charging frequency depends on daily usage and sunlight exposure, with Estate Swing’s low-draw solar board providing extended operation between charges.
Can I add a second battery for backup?
▼
Yes, additional batteries can be added for extended runtime, giving even more reliability during periods of low sunlight or high use.
How do I adjust opening and closing limits?
▼
Limits are adjusted directly on the control board following the manual, allowing precise, customized operation for smooth performance.
Can I adjust the auto-close timer?
▼
Yes, the auto-close delay is fully adjustable, giving you control over convenience and security timing for your gate.
Does the gate stop if it hits an obstacle?
▼
Yes, the opener automatically reverses if it detects resistance, protecting your gate, vehicles, and family with state-of-the-art safety technology.
Can this opener be used with a gate lock?
▼
Yes, electric gate locks can be added for extra security, complementing the system’s reliable solar automation.
Is regular maintenance required?
▼
Minimal maintenance is required—mainly checking alignment and battery condition, making this opener a low-effort, long-term solution for busy homeowners
What maintenance is recommended?
▼
Periodically inspect mounting points, hinges, and wiring connections to ensure smooth operation and the lasting quality you expect from Estate Swing.
Can it operate during cloudy or rainy days?
▼
Yes, the battery stores power for use during low-sunlight conditions, keeping your gate operational in virtually any weather.
Does the opener work during winter?
▼
Yes, but extremely cold temperatures may reduce battery efficiency. Estate Swing’s durable design ensures consistent performance even in harsh climates.
Can children safely use this system?
▼
No, this system is not intended for use by children. It is designed for reliable, secure operation by adults, delivering dependable performance you can trust.
Can I integrate safety photo sensors?
▼
Yes, compatible safety sensors can be added, enhancing protection without complicated setup.
Does it remember settings after power loss?
▼
Yes, system settings are retained, so your gate continues operating with the same personalized parameters after outages.
Can I manually stop the gate while it’s moving?
▼
Yes, the system responds to remote or control commands immediately, giving full control and safety for every user.
What warranty comes with this opener?
▼
It includes a manufacturer’s limited warranty, providing confidence that Estate Swing stands behind its products with reliable support.
Are replacement parts available?
▼
Yes, replacement parts are readily available, ensuring your gate opener remains operational for years to come.
Can I replace the battery myself?
▼
Yes, battery replacement is simple and user-friendly, keeping your system running efficiently without professional assistance.
What type of battery does it use?
▼
It uses a standard 12V deep-cycle battery, compatible with solar charging for maximum energy efficiency.
How long does the battery typically last?
▼
With proper care, batteries usually last 2–3 years, providing reliable, low-maintenance power for your gate.
What should I do if the gate won’t open or close?
▼
Check battery charge, wiring connections, and obstruction sensors, with Estate Swing’s user-focused manuals and support making troubleshooting straightforward.
Why does the gate stop halfway?
▼
This may be due to low battery power or incorrect force settings, which can be quickly adjusted for smooth operation.
Can I get technical support after purchase?
▼
Yes, customer support is available for troubleshooting and setup guidance, ensuring every installer feels confident using their system.
Is technical support based in the U.S.?
▼
Yes, support is provided by knowledgeable U.S.-based staff, giving quick, reliable assistance when needed.
Can the opener be upgraded later?
▼
Yes, accessories and control options can be added anytime, making it a future-proof solution for smart gate automation.
Does the system support multiple users?
▼
Yes, multiple remotes and entry devices can be programmed, ideal for families or multi-user households.
Can I reset the control board if needed?
▼
Yes, the control board can be reset following the manual instructions, allowing easy troubleshooting and continued reliable use.
Will animals trigger the gate accidentally?
▼
No, the system requires deliberate activation via remote or access device, keeping pets and wildlife safe from accidental operation.
Is this opener suitable for farm or ranch use?
▼
It can be used for light agricultural applications, combining solar efficiency with robust, long-lasting construction.
Can it be installed on metal gate posts?
▼
Yes, it supports both metal and wood posts, providing versatile installation options for a range of gate types.
Does the opener consume power when idle?
▼
Power consumption is minimal when not operating, maximizing energy efficiency while maintaining readiness at all times.
What makes this opener a popular choice?
▼
Solar capability, reliability, quiet operation, and DIY-friendly design make it a standout solution for modern residential gates.
Is this a good choice for long driveways?
▼
Yes, especially where AC power is unavailable, providing dependable, low-maintenance operation with flexible solar charging.
Can I return or exchange the product if needed?
▼
Returns and exchanges follow the seller’s return policy, with Estate Swing’s customer service available to ensure satisfaction.
Is this opener a good long-term investment?
▼
Yes, it offers durability, energy efficiency, and long-term convenience, making it a smart investment for homeowners seeking reliable solar gate automation.
What is the Estate Swing E-S 1000D Gate Opener?
▼
It’s a dual swing automatic gate opener designed for residential driveways with optional solar charging or AC transformer power, offering professional-grade performance with heavy-duty reliability while remaining simple enough for a DIY installation.
Why choose a solar gate opener instead of AC only?
▼
Solar provides power in remote locations without 110V access and keeps gates operational during outages, while Estate Swing’s low-standby design ensures energy efficiency and consistent operation, making it the ultimate sustainable choice.
Can this opener handle both heavy and lightweight gate leaves?
▼
Yes — it’s engineered for dual gates up to 600 lbs per leaf or 12 ft length, yet it’s gentle enough for lighter gates, giving you versatility and smooth, professional-grade operation no matter the gate size.
Is the E-S 1000D suitable for wood and metal gates?
▼
Yes — compatible with wood, steel, aluminum, vinyl, and chain-link gates, providing unmatched flexibility while delivering dependable, high-performance automation for any driveway style.
How does this compare with single swing gate openers?
▼
Dual openers have two actuators built for synchronized operation on two-leaf gate systems, offering superior safety, smoother movement, and professional-level efficiency that outperforms single swing alternatives.
What accessories are typically recommended?
▼
Photo sensors, coded keypads, safety edges, and remote transmitters enhance both convenience and security, allowing you to customize your gate system while maintaining Estate Swing’s high safety standards.
Does this gate opener include remotes?
▼
Yes — it includes a free extra remote, letting you and your family enjoy instant, professional-quality gate automation from the moment it’s installed.
What solar panel options are available?
▼
You can choose 10 W, 20 W, or 30 W solar panels depending on sunlight conditions, maximizing your gate’s efficiency and ensuring reliable operation even in low-light environments.
Can this opener be used on steep or irregular driveways?
▼
Yes, as long as hinges are solid and balanced. Estate Swing’s fully adjustable brackets make installation safe and professional, even on challenging or uneven terrain. High twists may require professional assistance.
Does it support push-to-open configuration?
▼
Yes — push-to-open is supported without additional brackets, giving you flexibility to tailor your installation while maintaining full strength and smooth operation.
What is the maximum opening angle?
▼
Around 110° depending on installation, allowing for wide driveway access and seamless operation without straining the mechanism.
Is this a DIY-friendly gate opener?
▼
Yes — it’s designed for DIY installation, with live support available to guide you, so you can achieve a professional-level setup without hiring a contractor.
How does it compare to competitors like Mighty Mule or Ghost Controls?
▼
Estate Swing offers superior solar integration, advanced safety features, and reliable performance at a competitive price, with expert support from Gate Crafters to ensure your installation is smooth and worry-free.
Does the system require a backup battery?
▼
Solar systems typically use a Group 24 deep-cycle battery (not included) for backup, capable of hundreds of cycles, providing uninterrupted performance and peace of mind during outages.
Is this opener suitable for high-traffic residential driveways?
▼
Yes — the low-standby solar board allows frequent use without draining power, ensuring smooth, reliable operation for busy households.
Can I upgrade with smart home integration later?
▼
Yes — additional accessories can enable advanced automation features, future-proofing your gate system for evolving technology while enhancing convenience.
Does the opener require specific post sizes?
▼
Frame mounts are designed for posts up to 4? × 4?, offering flexible installation and professional-grade stability on almost any standard residential setup.
Is photoelectric safety sensor installation recommended?
▼
Yes — it greatly increases safety for pedestrians and vehicles, reinforcing Estate Swing’s commitment to industry-leading protection.
What kind of warranty comes with it?
▼
1-year electrical and 5-year limited component warranty ensures peace of mind, reflecting Estate Swing’s confidence in quality and durability.
Does it come with installation hardware?
▼
Basic brackets are included, and the adjustable design accommodates most gates, making installation easier while maintaining professional results.
Do I need electrical wiring for the solar option?
▼
No — solar runs independently, simplifying installation, reducing wiring clutter, and letting you enjoy efficient, professional-grade gate operation without complex setup.
Can I install this by myself without professional help?
▼
Yes — it’s designed for DIY installation, with Gate Crafters’ live support available seven days a week, ensuring a smooth experience even for first-time installers.
What tools are required for installation?
▼
Standard household tools like drill, tape measure, wrench, level, and wire strippers are all that’s needed, making professional-quality installation accessible to any DIYer.
How do I mount the solar panel?
▼
Mount panels in full sun and minimize shading for optimal charging, allowing the system to run efficiently and reliably even in low-light conditions.
Does the control box need to be weatherproofed?
▼
Yes — mount under a cover or weather-resistant enclosure for long life, ensuring the system remains durable and dependable in all weather conditions.
How long should the low-voltage wires be?
▼
Wire length depends on distance from transformer/battery to control box. Estate Swing’s simple wiring options accommodate long runs while maintaining safe, professional performance. Check gauge requirements.
Should I trench wiring under the driveway?
▼
Yes — protecting wires ensures longevity and keeps your installation looking clean and professionally finished.
How do I know if the gate is balanced before installation?
▼
The gate should swing freely without heavy force. Estate Swing’s adjustable brackets allow precise tuning for smooth, reliable motion.
What safety devices should be installed during setup?
▼
Photo eyes, critical edge sensors, and warning lights are recommended, providing industry-leading safety and giving you peace of mind for family and vehicle protection.
Can I mount a keypad or card reader?
▼
Yes — additional accessories can be wired into the control panel, expanding convenience and security without compromising reliability.
Does it include a manual release?
▼
Yes — quick manual release allows immediate gate operation during power loss, offering practical, professional-grade convenience.
How do I program the remote controls?
▼
Program via control board and receiver pairing. Estate Swing’s intuitive design ensures quick setup and reliable operation every time.
Is professional foundation or concrete needed?
▼
Yes — secure gate posts in concrete for stability, giving your gate professional-grade support and long-lasting operation.
Can the opener be mounted on brick or stone columns?
▼
Yes — use appropriate anchors or adapter plates. Estate Swing’s flexible design allows installation on almost any structure while maintaining strength and reliability.
How do I adjust obstruction sensitivity?
▼
PCB settings allow adjusting force limits, giving you control over gate performance while maintaining the safest possible operation.
What do I do if the gate doesn’t open with the remote?
▼
Check the remote battery, receiver programming, and antenna position. Estate Swing’s clear digital display and smart control system make troubleshooting simple for any DIY installer.
Can extreme temperatures affect performance?
▼
Yes — hot or cold weather can affect battery performance, but the E-S 1000D is built for 0?–110? operation, providing professional reliability in all climates.
What if the solar panel isn’t charging the battery?
▼
Check sunlight exposure and panel angle. Estate Swing’s high-efficiency solar design ensures optimal charging and uninterrupted operation even in less-than-ideal conditions.
Can I reset the gate opener control board?
▼
Yes — follow the steps in the manual. Estate Swing’s intuitive system allows easy resets without complicated procedures.
Why does the gate reverse during operation?
▼
Obstruction sensors or misalignment may be the cause. Estate Swing’s fail-safe design automatically reverses the gate to prevent damage, prioritizing safety above all.
Is the solar battery included?
▼
No — a Group 24 battery is recommended. Estate Swing’s generously sized control box accommodates large batteries for longer runtime, keeping your gate functional during outages.
Can the unit withstand rain and snow?
▼
Yes — but weatherproof mounting is recommended. Weatherproof installation ensures reliable operation in all conditions while maintaining peak performance year-round.
What safety warnings should I follow?
▼
Keep people clear of moving gates and use photo eyes provide maximum protection, demonstrating Estate Swing’s commitment to household safety.
What if the gate only opens partially?
▼
Reprogram travel limits in the control panel, the magnetic limit switches make adjustments simple while keeping gate operation smooth and professional.
How often should maintenance be done?
▼
Inspect yearly or before heavy-use seasons. Estate Swing’s robust design minimizes maintenance while ensuring long-lasting, reliable performance.
Can the warranty be voided by DIY installation?
▼
No — as long as installation follows instructions, the 1-year electrical and 5-year component warranty remains fully valid, giving you confidence in your DIY setup.
Does the warranty cover labor for repair?
▼
Warranty typically covers parts, not labor, but Gate Crafters’ expert support guides you through any repairs with the same level of reliability as a professional service call.
What if the controller fails after a storm?
▼
Use surge protectors and proper grounding, Estate Swing’s single-power design simplifies protection and reduces risk of damage while keeping your system functional.
Can I replace just the PCB board?
▼
Yes — compatible replacement parts are available, and Estate Swing’s modular design makes updates or repairs simple and cost-effective. Contact support for compatibility.
Is theft or unauthorized remote use a concern?
▼
Rolling code remotes or keypads reduce unauthorized access, ensuring security while providing professional-level control for your property.
How long does a Group 24 battery last?
▼
A fully charged battery provides about ~300 cycles, offering extended operation and reliability without frequent recharging.
Why is my opener noisy?
▼
Lack of lubrication or loose hardware can cause noise. Estate Swing’s precision arm and quality components provide smooth operation.
Can I add more remotes later?
▼
Yes — the control board supports additional remotes, allowing you to expand convenience as your household needs grow.
What to do if wiring gets chewed by animals?
▼
Replace and protect wires under conduit. Estate Swing’s simple wiring layout makes repairs easy and keeps your gate system reliable.
How do I clean the solar panel?
▼
Wipe with a soft cloth and avoid harsh chemicals to maintain peak charging efficiency, ensuring reliable performance year-round.
Is professional service available if I get stuck?
▼
Yes — Gate Crafters offers expert support 7 days a week from 9 AM to 9 PM EST, giving DIY installers the confidence of professional guidance whenever needed.
Why is the gate not closing fully?
▼
Check limit switches or obstruction sensors. Estate Swing’s intuitive adjustment system makes correcting issues fast and straightforward.
Can accessories fail separately from the opener?
▼
Yes — sensors or keypads may fail independently, but Estate Swing’s modular system allows easy replacement while maintaining the gate’s primary functionality.
Where can I find user manuals and diagrams?
▼
Complete Estate Swing manuals are available online on the product manuals page, providing step-by-step guidance for installation, maintenance, and accessory setup, ensuring a smooth, professional-quality experience.
What is the Estate Swing E-S 1600 Automatic Single Swing Gate Opener?
▼
The E-S 1600 is a heavy-duty automatic gate opener built for single swing residential gates up to 14' or 800 lbs, featuring free extra remotes and DIY-friendly installation, offering a professional-grade solution for effortless gate automation.
What type of gates are compatible with the E-S 1600 opener?
▼
It works with wood, steel, aluminum, vinyl, chain link, and most other single swing gates, providing unmatched versatility for nearly any driveway setup.
What is the maximum gate weight and length this opener supports?
▼
The E-S 1600 handles gates up to 800 lbs or 14 feet in length, combining heavy-duty strength with smooth, reliable operation.
Does this gate opener support solar power?
▼
No, the E-S 1600 is designed for low-voltage AC operation within 72 ft of an outlet, delivering constant-duty performance without compromise.
Is installation difficult for homeowners?
▼
Not at all — it’s designed for DIY installation with easy-to-follow instructions and 7-day technical support from Gate Crafters, making professional help optional.
What installation tools are required?
▼
Basic household tools like a drill, screwdrivers, wrench, level, and wire strippers are all that’s needed, keeping setup simple and straightforward.
What is included in the box?
▼
Each package includes the motor unit, control box, remotes, brackets, mounting hardware, transformer, receiver, and manual, giving you everything needed for fast, professional-quality installation.
Does the opener come with a warranty?
▼
Yes, it includes a 1-year electrical and 5-year component limited warranty, reflecting Estate Swing’s commitment to reliability and customer peace of mind.
Can the opener be manually released during a power outage?
▼
Yes, it includes a manual release keychain that allows safe and secure gate operation even during power interruptions, ensuring convenience at all times.
What safety features are built in?
▼
The E-S 1600 automatically reverses if it encounters an obstruction and uses fail-safe normally closed circuits, keeping your family and property protected.
Is professional installation required?
▼
No, homeowners can install it themselves with basic tools and Gate Crafters support, combining DIY ease with commercial-grade quality.
What power source is needed?
▼
A standard 24V low-voltage transformer is included, allowing simple connection to a nearby household outlet while maintaining energy-efficient operation.
Do I need additional accessories to complete installation?
▼
You may need wiring, posts, or safety sensors that can enhance functionality depending on your gate setup. (often sold separately)
Can the opener work for commercial gates?
▼
It’s designed for residential and light commercial use, offering the durability of a professional-grade opener for smaller commercial properties.
How many remotes are included?
▼
This package includes one remote plus an additional free extra remote, providing instant convenience and easy access for multiple users.
What is the operating temperature range?
▼
The opener performs reliably in temperatures from -4 °F to 131 °F, making it suitable for nearly any climate.
How do I program the remotes?
▼
Remotes are programmed through one-touch EZ programming on the control board, making setup fast, simple, and user-friendly.
Are safety sensors required?
▼
While optional, adding photo-eyes or infrared sensors enhances safety, and the system is compatible with these devices for complete protection.
What happens if my gate stops working?
▼
Gate Crafters and Estate Swing offer responsive support and warranty service to quickly troubleshoot or resolve any issues, ensuring reliable operation.
How long does shipping take?
▼
Shipping times vary, but Gate Crafters offers free ground shipping across the continental U.S. on Estate Swing Gate Openers, delivering convenience from order to installation.
Why is my gate opener not powering on?
▼
Check power connections and transformer installation, and rely on Gate Crafters’ expert support to ensure your opener powers up smoothly.
What if my gate opener is defective?
▼
Defective units can be returned under warranty, and thorough documentation along with Gate Crafters support ensures a hassle-free resolution.
Can I add accessories like keypads and sensors later?
▼
Yes, the system supports wireless keypads, safety edges, exit wands, and other accessories, offering flexibility as your security needs grow.
Does Gate Crafters provide installation manuals?
▼
Absolutely — clear, user-driven manuals are included, and Gate Crafters offers video guides and 7-day support to make DIY installation simple.
How strong is the opener’s motor?
▼
It uses a constant-duty 24V motor with an advanced gear system, engineered for heavy-duty performance and long-lasting reliability.
What if my warranty claim is denied?
▼
Review the warranty terms and provide documentation. Gate Crafters’ U.S.-based support is ready to help resolve any issues professionally.
Is Gate Crafters a reputable seller?
▼
Yes, Gate Crafters has years of experience, offering industry-leading support and reliable products for DIY gate automation projects.
Can I install this gate opener on a metal column?
▼
Yes, the included mounting brackets support posts or columns up to 6? × 6?, providing secure and adaptable installation options.
Does it include mounting hardware for every gate type?
▼
Basic hardware is included, and optional custom brackets are available for unique installations, ensuring a perfect fit for any gate.
Where do I get help if I get stuck?
▼
Gate Crafters provides expert 7-day technical support via phone, email, and live chat, ensuring you complete installation with confidence.
Is the Estate Swing E-S 1600 strong enough for a solid wood gate?
▼
Yes, it’s engineered for solid wood, steel, and composite gates up to 800 lbs, combining heavy-duty strength with smooth, quiet operation.
Will this opener work if my gate opens inward instead of outward?
▼
Yes, the control board can be configured for inward or outward swing, making it compatible with almost any driveway setup.
Can I use this gate opener on a sloped driveway?
▼
Yes, but slope limitations apply. For steep slopes, proper hinge placement and geometry are critical to avoid binding or excessive load. The E-S 1600’s constant-duty motor ensures consistent performance.
Does this automatic gate opener lock the gate when closed?
▼
Yes, the motor provides a mechanical locking effect to hold the gate closed against wind and light force for added security.
How far away can the remote control operate the gate?
▼
Remotes typically work 100–150 feet depending on terrain, giving reliable access from your vehicle with consistent performance.
Is this gate opener compatible with vehicle exit sensors?
▼
Yes, the system supports exit wands, loop detectors, and push-to-exit buttons to streamline driveway traffic.
Can the opening and closing speed be adjusted?
▼
Yes, soft start/soft stop settings on the control board allow precise control for smooth, quiet gate movement.
Will this opener work in high-wind areas?
▼
Yes, but for windy locations, a solid gate surface area calculation is recommended to prevent excessive strain.
What happens if someone tries to force the gate open?
▼
The internal gearing resists forced entry, and the obstruction detection system helps protect the motor from damage, keeping your gate safe.
Can this opener be installed on a decorative gate with scrollwork?
▼
Yes, as long as mounting points align and gate weight is within limits, the E-S 1600 blends strength with aesthetic versatility.
Is the control box weatherproof?
▼
Yes, it’s rated for outdoor use and protects components from rain and debris when mounted correctly above ground.
Does the opener require regular maintenance?
▼
Minimal maintenance is required. Periodic inspection of hinges, bolts, and wiring connections are recommended and keep your system running smoothly for years.
Can I connect this gate opener to a home automation system?
▼
No, this model is not designed for direct integration with home automation systems. However, it delivers reliable, standalone performance with user-friendly controls, making it a dependable and hassle-free solution for secure, everyday gate operation.
Is this gate opener quiet during operation?
▼
Yes, the E-S 1600 runs with low noise, ensuring a peaceful neighborhood environment while operating heavy gates.
How long does it take to fully open the gate?
▼
Opening typically takes 12–18 seconds depending on gate size and settings, providing quick yet smooth movement every time.
Will this opener work with a masonry or brick post?
▼
Yes, proper anchors or mounting plates allow installation on brick, concrete, or stone columns without compromising durability.
Can I add a wireless keypad later?
▼
Yes, wireless keypads and additional access devices can be easily integrated at any time for added convenience.
Does the system automatically close the gate after opening?
▼
Yes, the auto-close timer can be enabled or disabled, offering flexibility for security and convenience.
What type of wiring is required for accessories?
▼
Low-voltage wiring (16–18 AWG) is used for accessories like keypads and sensors, keeping installation simple and safe.
Is this gate opener suitable for rental properties?
▼
Yes, it’s ideal for multi-family or rental properties due to reliable performance, easy access programming, and durability.
Can the opener be used in areas with frequent power outages?
▼
Yes, with an optional backup battery or manual release, the system continues functioning reliably even during outages.
How do I know if my gate is properly balanced?
▼
A balanced gate moves freely by hand without dragging, and the E-S 1600 ensures smooth operation once installed correctly.
Does the opener stop if it hits a vehicle or person?
▼
Yes, obstruction sensing automatically reverses the gate, prioritizing safety for people, pets, and vehicles.
Can I install this opener myself without electrical experience?
▼
Yes, low-voltage wiring and clear instructions make the E-S 1600 accessible for DIY enthusiasts without prior electrical knowledge.
What is the expected lifespan of the E-S 1600 gate opener?
▼
With proper installation and care, it can last many years of daily residential use, delivering reliable performance and peace of mind.
Can this opener handle frequent daily cycles?
▼
Yes, it’s rated for multiple daily open/close cycles, making it perfect for busy households or shared driveways.
Does the gate opener support multiple users?
▼
Yes, multiple remotes, keypads, and access devices can be programmed for convenient access by family members or staff.
What should I do if the gate opens but does not close?
▼
Check safety inputs such as photo eyes or obstruction sensors. The E-S 1600’s intelligent system ensures quick troubleshooting.
Is technical support available after purchase?
▼
Yes, Gate Crafters offers expert 7-day support from 9 AM to 9PM EST to help with installation, programming, and maintenance, ensuring a smooth experience.
Why choose the Estate Swing E-S 1600 over cheaper gate openers?
▼
The E-S 1600 combines heavy-duty performance, quiet operation, safety-first design, and U.S.-based expert support, offering long-term reliability and professional-grade quality for your home.
What is the Estate Swing E-S 1600L Gate Opener?
▼
The E-S 1600L is a heavy-duty automatic single swing gate opener designed for residential driveways. With versatile mounting and 7-day Tech Support, installation is a breeze.
What makes the “L” version different from the standard 1600 model?
▼
The E-S 1600L supports larger and heavier gates (up to 20 ft. or 1000 lbs.) compared to the standard 1600 version, offering performance comparable to high-end brands such as LiftMaster. This upgraded capacity makes it an excellent choice for homeowners who want professional-grade power at a more affordable price.
What materials can this gate opener work with?
▼
The E-S 1600L can be installed on gates made of wood, steel, aluminum, vinyl, chain link, and other common gate materials. Its versatile design makes it compatible with most residential gate styles.
How heavy a gate can this opener handle?
▼
The E-S 1600 can handle up to 1000 lbs. per gate leaf. Comparable to other heavy-duty gate openers, at a more affordable price.
What gate length is supported?
▼
The E-S 1600L can handle gates up to 20 ft. in length, delivering reliable performance for larger residential and light commercial applications.
Is this model solar-ready?
▼
No, the E-S 1600L requires standard power within about 150 ft of the operator. Solar panels are not supported, ensuring consistent, dependable performance without relying on variable solar conditions.
Can this opener be used on both inward and outward-swinging gates?
▼
Yes, the E-S 1600L supports both configurations with proper bracket mounting, providing flexible installation options to fit any driveway layout.
How far does the remote control work?
▼
Remote range is typically up to 300 ft, depending on the environment, allowing convenient gate control from your vehicle for smooth, hassle-free access.
Does it include free extra remote controls?
▼
Yes, Gate Crafters includes an extra bonus remote with this model, adding extra value and convenience for multi-user households.
Does this opener offer continuous duty operation?
▼
Yes, its constant duty design allows frequent operation without overheating, delivering reliable performance even in high-use applications.
Is the E-S 1600L suitable for commercial use?
▼
The E-S 1600L is intended primarily for residential and light commercial driveways, making it an excellent solution for homes, private roads, farms, and small businesses.
Why choose Estate Swing over other DIY gate openers?
▼
Estate Swing is known for constant duty motors, low-voltage safety, and versatile mounting, offering dependable performance and long-term reliability trusted by installers and homeowners alike.
Is the product UL325 safety certified?
▼
Estate Swing openers generally meet vehicle gate safety standards like UL325, helping ensure safe and compliant operation. These safety standards help protect users while maintaining reliable automated gate performance.
Can it handle windy conditions and heavy panel gates?
▼
Yes, but you need to factor gate size and wind load in your area. Please ensure your gate is appropriately sized and check local conditions to maintain safe, reliable, and long-term performance.
Does the package include all mounting hardware?
▼
The E-S 1600L includes adjustable mounting brackets for easier installation, but column anchors need to be purchased separately if required.
Is professional installation recommended?
▼
While DIY-friendly, professional installation can ensure optimal performance and long-term reliability in complex installations, such as uneven driveways, heavy gates, or unique post configurations.
How does this model compare with Estate Swing dual models?
▼
Single swing designs like the 1600L are simpler and more cost-effective, making them ideal for single-leaf gates, while dual models handle two leaves independently for larger or double-gate installations. This gives you the flexibility to choose the system that best fits your property and gate setup.
Can this opener be programmed to different speeds?
▼
Yes, adjustable control settings allow you to customize the opener’s operation for your gate, including travel speed and delay, for smooth and personalized performance.
What accessories are recommended?
▼
Safety photo sensors, keypads, exit buttons, and locks enhance safety, security, and everyday convenience. Gate Crafters offers all of these accessories in one place, making it easy to complete your gate system with a single, convenient purchase.
Is this opener weather resistant?
▼
Yes, the E-S 1600L is rated IP44 to protect against outdoor elements, ensuring dependable performance year-round.
What power requirements does the E-S 1600L need?
▼
The E-S 1600L uses standard household AC power with a low-voltage transformer, providing safe, energy-efficient operation that keeps electricity costs low while reducing overall power usage.
How far can the wiring run from the transformer to the gate?
▼
Transformers should typically be within about 150 ft., allowing flexible installation in most residential settings.
What gauge of wire is recommended for installation?
▼
16, 14, or 12 gauge stranded wire ensures reliable power delivery and optimal performance. All available to purchase at Gate Crafters.
Does the opener come with installation instructions?
▼
Yes, each unit comes with a detailed, DIY-friendly manual that makes installation simple. Plus, Gate Crafters offers live technical support seven days a week, from 9 AM to 9 PM EST, to assist you every step of the way.
Are there tools needed that are not included?
▼
Standard tools such as a drill and wrench set are required, making installation straightforward and accessible for most homeowners. The opener’s manual also provides a complete tool list to ensure you have everything needed for a smooth setup.
How do you determine proper gate balance before installation?
▼
A properly balanced gate swings freely without binding, helping ensure smooth operation and reducing wear on the opener. Proper gate preparation helps maximize the lifespan and performance of your gate automation system.
Is manual release provided?
▼
Yes, the manual release allows gate operation during power loss for added security and convenience.
What is “push to open” vs “pull to open”?
▼
“Push to open” swings the gate away from the post, while “pull to open” swings it toward the post. The included brackets support both, ensuring flexible and reliable operation.
How high should the arm mount be relative to the gate post?
▼
Mounting height is guided in the manual depending on the gate height. Precise guidance makes setup simple and reliable.
Does installation require concrete for posts?
▼
Yes, posts should be securely anchored in concrete before automating. Stable foundations mean smoother, longer-lasting gate operation.
Will uneven ground affect installation?
▼
Level mounting surfaces help prevent binding and stress. Proper alignment keeps your gate moving effortlessly for years.
Is safety wiring required for sensors?
▼
Yes, safety sensors require separate low-voltage wiring to the control board. Safety-first design keeps your family and property protected.
Can you install this opener yourself?
▼
Yes, Estate Swing Gate Openers are designed for DIY enthusiasts, with expert support from Gate Crafters available seven days a week.
What is the recommended setback for mounting?
▼
Typically up to 3? from the rear face of the gate column. Exact spacing ensures smooth, efficient operation every time.
How do you program the travel limits?
▼
Control board documentation outlines limit setting during setup. Step-by-step instructions make programming fast and hassle-free.
What issues commonly arise during installation?
▼
Improper wiring, incorrect mounting angles, or unbalanced gates are common issues, but with Gate Crafters’ seven-day-a-week support, help is just a call away.
The gate opener won’t start — what should I check first?
▼
Verify the power supply, transformer output, and remote battery. If the problem continues, contact Gate Crafters’ Technical Support, available 7 days a week from 9 AM to 9 PM EST.
The gate opens but won’t close — why?
▼
Check safety sensors or obstruction triggers, as the opener won’t close if it detects something in the gate’s path. Estate Swing openers combine smart safety features with smooth operation, keeping your property secure and your gate running reliably.
Why does the opener reverse mid-cycle?
▼
Obstruction sensing may detect resistance, or sensors could be misaligned. Ensure nothing blocks the gate and that sensors are clean and properly positioned. Our intelligent sensors protect your gate and family, giving peace of mind with every cycle.
The remote range seems weak — what could cause this?
▼
Range can be reduced by antenna position, nearby metal structures, or electronic interference. Reposition the antenna and check battery strength. Optimizing your remote setup helps ensure convenient gate access every time you arrive home.
Is regular maintenance needed?
▼
Yes, periodically inspect brackets, bolts, hinges, and wiring for wear. Simple upkeep ensures your opener delivers smooth, long-lasting performance.
Can high winds cause issues?
▼
Extreme winds on solid or heavy gates can put stress on the opener and sensors. Securely anchored gates perform best, giving you reliable operation in most weather conditions.
What temperature range can it operate in?
▼
Typically between -4? and 131?. The E-S 1600L is built to perform in both harsh winters and hot summers, keeping your gate moving year-round.
Can rain and snow damage the opener?
▼
The opener is weather-rated, but adding a waterproof enclosure improves longevity and protects electronics. Durable, weather-resistant design ensures your gate works reliably rain or shine.
How long does the warranty last?
▼
Most models include a 5-year mechanical and 1-year electrical limited warranty. Our industry-leading warranty reflects our confidence in the quality and durability of every opener.
Does the warranty cover labor costs?
▼
No, warranties typically cover parts only. Even so, Gate Crafters’ support team is always available to guide you through repairs and replacements quickly.
What if the motor fails during normal use?
▼
Contact support and follow the warranty claim process. Our dedicated team ensures prompt assistance, keeping downtime minimal and your gate secure.
Can accessories fail independently of the opener?
▼
Yes — keypads, sensors, and remotes are separate components and may need replacement individually. Our system is modular, so upgrades or repairs are simple and won’t disrupt gate operation.
Can the opener be reprogrammed after a power outage?
▼
Yes, most openers retain settings in most cases. Smart memory features make Estate Swing openers convenient and hassle-free.
The gate is noisy — how can I quiet it?
▼
Lubricate hinges, tighten brackets, and ensure gate movement is smooth. Proper care keeps your gate operating quietly and efficiently.
Is security compromised if remotes are lost?
▼
Lost remotes can be deleted from the system to prevent unauthorized access. Advanced security features let you control who can operate your gate, keeping your property safe.
Why is the gate slower than expected?
▼
Gate weight and hinge condition can affect speed. Our openers are engineered to handle a wide range of gate sizes, providing reliable performance under normal conditions.
Can the opener be reset to factory defaults?
▼
Yes, follow the control board reset procedures in the manual. Easy reset features make troubleshooting and reconfiguration fast and stress-free.
What if the control board gets wet?
▼
Keep the housing sealed and dry, as moisture can damage the electronics. If you suspect your control board has been exposed, contact Gate Crafters for expert guidance on whether a replacement is needed.
How do I inspect safety sensors?
▼
Clean the lenses, ensure proper alignment, and check wiring connections regularly. Routine sensor checks keep your system safe and fully operational, preventing accidents before they happen.
Can the opener work during a power loss?
▼
Optional battery backup (sold separately) can maintain gate operation. Battery backup ensures your gate continues to function even during outages, for uninterrupted access and security.
What should I do if the opener stops working entirely?
▼
Check breakers, transformer, and wiring before contacting support. Our knowledgeable team is ready to guide you step by step to get your gate moving again quickly.
Is surge protection recommended?
▼
Yes, lightning and power spikes can damage electronics. Installing a surge protector prolongs system life. Protect your investment and keep your gate opener safe from unexpected electrical damage.
Where can I download user manuals and wiring diagrams?
▼
Manuals are available on product pages at Gate Crafters. Access detailed guides anytime for easy setup, troubleshooting, and maintenance.
Does Gate Crafters offer technical support after purchase?
▼
Yes, daily live assistance is available to help with any issue. Our friendly, expert support ensures your gate opener operates smoothly for years to come.
What is the Estate Swing E-SC 1600 Gate Opener?
▼
The Estate Swing E-SC 1600 is a premium column-mount automatic swing gate opener designed for residential driveways with large posts or columns, providing homeowners with a reliable, long-lasting solution that enhances security, convenience, and curb appeal.
What makes the E-SC 1600 different from the standard E-S 1600 model?
▼
The “SC” model features a robust articulating arm for mounting on columns up to 24? × 24? with a 12-inch offset, delivering unparalleled flexibility and professional-grade performance where standard openers simply cannot reach.
What gate materials is this compatible with?
▼
Compatible with wood, steel, aluminum, vinyl, chain link, and similar swing gates, this opener allows almost any residential gate to be upgraded to effortless, automated operation, making entry and exit faster and safer.
What gate size does this opener support?
▼
It can handle gates up to 16 ft in length or 800 lbs, giving homeowners the power and reliability needed to operate larger decorative or reinforced gates smoothly and consistently.
What power supply does this gate opener require?
▼
Powered by a low-voltage transformer plugged into a household outlet, with optional backup batteries for added peace of mind, the E-SC 1600 ensures your gate operates reliably even during temporary power interruptions.
Is this opener solar compatible?
▼
No, it relies on a constant AC transformer supply, providing consistent, dependable power for frequent gate cycles, so you can enjoy reliable automation without worrying about solar conditions.
What remote range can I expect?
▼
The remote typically operates up to 300 feet in open areas, giving homeowners convenient control from the comfort of their car, driveway, or anywhere on the property.
Does it include an extra free remote?
▼
Yes, the E-SC 1600, and all our Estate Swing Gate Openers, come with an additional remote, allowing multiple users to effortlessly access your gate for ultimate convenience for family, friends, or service personnel.
Can it fit on non-standard gate posts?
▼
Yes, the flexible column-mount design, along with optional custom brackets, allows this opener to be installed on unique or oversized columns, providing a tailored, professional solution for any property.
Is this opener suitable for heavy gates?
▼
Rated for residential gates up to 800 lbs, the E-SC 1600 delivers smooth, dependable operation for heavier gates, combining power and reliability for everyday convenience.
Does the articulating arm help with installation?
▼
Yes, the articulating arm offers exceptional mounting flexibility, making installation on wide or irregular posts far easier than standard straight-arm systems, reducing setup stress for DIY enthusiasts.
Is this system constant duty or battery dependent?
▼
It uses constant-duty transformer power, allowing repeated cycles without draining batteries, so you get worry-free, long-term performance for high-traffic driveways.
Does it come with mounting hardware?
▼
Mounting brackets are included to simplify installation and ensure a professional, polished finish. Column anchors and hardware may not be included, giving you the flexibility to choose the right options for your setup.
Does it have programmable features for speed and stopping points?
▼
Yes, the control board allows adjustment of opening speed, travel limits, and pause times, giving you smooth, precise gate operation tailored to your driveway’s needs.
How does this compare to sliding gate openers?
▼
Swing openers are ideal when you have ample lateral space, offering smooth, reliable operation, while sliding openers work best where swing clearance is limited. Both designed to deliver convenience, durability, and enhanced curb appeal for your property.
Can I control this gate via smartphone or home automation?
▼
Yes, with optional smart gate controllers and additional accessories, you can integrate the opener with your home automation system, providing modern convenience and remote access from anywhere.
Is a professional installer recommended?
▼
While DIY-friendly, professional installation can be helpful for complex column setups to ensure optimal performance, security, and long-term reliability.
Is there a limit on how far from home I can use the remote?
▼
Remote range varies with environment, but open-area operation typically reaches 300 ft, offering convenience for cars or pedestrian access from almost anywhere on the property.
Does the opener lock the gate when closed?
▼
The irreversible drive system resists forced entry, and optional electric locks enhance security, giving homeowners peace of mind that their property is protected.
What warranty does it come with?
▼
A 1-year electrical and 5-year component limited warranty provides long-term confidence, demonstrating the product’s quality and the manufacturer’s commitment to reliable performance
What tools are required for installation?
▼
Basic tools such as a drill, level, tape measure, wrench set, and screwdrivers are sufficient, making installation accessible for most DIY homeowners while delivering a professional-grade result.
Does the kit include a detailed instruction manual?
▼
Yes, a user-directed manual is included to guide every step of installation and troubleshooting, helping you get your gate running quickly and confidently.
How high should the opener arm be mounted on the column?
▼
Follow the manual template to align the arm precisely with your gate, ensuring smooth, reliable operation and long-lasting performance.
What gauge wire should be used for power and accessories?
▼
16, 14, or 12 gauge low-voltage wire is recommended depending on distance, ensuring safe, efficient, and uninterrupted operation.
Do I need to trench wiring underground?
▼
Yes, burying wiring under driveways or lawns protects it from damage and creates a clean, professional-looking installation.
Can I mount this on a brick or stone column?
▼
Yes, using appropriate masonry anchors, the opener can be securely mounted to brick, stone, or concrete, providing a durable and long-lasting setup.
What is the “setback” in installation?
▼
Setback refers to the distance from the opener mount to the gate pivot, and correct measurement ensures full gate swing and smooth, reliable automation.
Is a concrete pad needed for installation?
▼
Columns or posts should be anchored in concrete to provide stability and prevent movement, enhancing the longevity of your gate system.
How do I program travel limits?
▼
Travel limits are set on the control board according to the manual, allowing the gate to stop precisely for safe and consistent operation.
Can I install photo eye sensors during setup?
▼
Yes, installing photo eye sensors increases safety by preventing gate closure when obstacles are detected, protecting people, pets, and vehicles.
Does the manual explain troubleshooting steps?
▼
Yes, troubleshooting guidance is included to quickly address common issues, helping maintain reliable performance and peace of mind.
Is the control box weatherproof?
▼
Yes, it is rated for outdoor conditions, and an optional protective cover can extend its life and safeguard electronics from the elements.
What if I have a push-to-open gate instead of pull-to-open?
▼
Special brackets or configuration adjustments may be required to ensure proper operation, allowing the opener to handle different gate setups reliably.
Can I use a wireless keypad?
▼
Yes, wireless keypads provide convenient keyless entry for homeowners and authorized visitors, adding security and ease of access.
Is a manual release included?
▼
Yes, the manual release allows the gate to be opened manually during power outages, providing peace of mind and uninterrupted access.
How long does installation usually take?
▼
Most DIY installations take 2–6 hours depending on wiring and preparation, allowing you to enjoy automatic gate convenience quickly.
The gate won’t open — what should I check?
▼
Verify power, transformer output, and remote batteries. These simple checks restore operation and keep your gate performing reliably.
The gate opens but won’t fully close — why?
▼
Obstruction sensors or limit switches may need adjustment. The system is designed to protect your gate and property from damage.
Remote doesn’t respond — what’s next?
▼
Ensure the remote is in range, has fresh batteries, and is correctly programmed, giving quick and easy resolution for uninterrupted gate access.
Can rain affect performance?
▼
The opener is weather-rated for outdoor use, but keeping sensors and wiring protected ensures consistent, long-term operation in all conditions.
What safety devices should be installed?
▼
Photo eyes and warning signs improve safety, protecting family, pets, and vehicles while maintaining professional-grade security.
Does safety circuitry meet standards?
▼
Yes, Estate Swing openers exceed anti-crush safety standards, delivering dependable protection and peace of mind for homeowners.
Is regular maintenance required?
▼
Inspect hinges, fasteners, and sensors periodically to maintain smooth operation and extend the lifespan of your gate opener.
Can pets trigger the gate?
▼
Properly aligned photo eyes prevent closure on small objects or pets, ensuring safety for all family members.
Can the control board be reset?
▼
Yes, the control board can be reset following the manual, restoring normal operation quickly and easily.
Why does the gate reverse mid-cycle?
▼
Obstruction detection senses resistance and automatically reverses the gate to protect people, pets, and property.
Does the warranty cover electrical failure?
▼
Yes, electrical components are protected under the one-year warranty, ensuring peace of mind for reliable performance.
Does it cover mechanical parts failure?
▼
Major mechanical components are covered under the five-year limited warranty, demonstrating the system’s durability and long-term quality.
Can lightning damage the control board?
▼
Surge protection is recommended to prevent electrical storm damage, keeping your gate opener secure and operational.
How do I clean the gate opener parts?
▼
Wipe exterior components with a soft cloth and avoid harsh chemicals to maintain both function and appearance for years of reliable use.
Why is the gate noisy?
▼
Noise may result from lack of lubrication, loose hardware or misalignment. Regular maintenance keeps operation smooth and professional.
Can I re-program additional remotes?
▼
Yes, extra remotes can be programmed, allowing multiple users easy access and enhancing convenience for family or staff.
What if the opener stops working entirely?
▼
Check power and wiring first. If needed, Gate Crafters provides expert technical support to restore operation quickly.
Does Gate Crafters offer support after purchase?
▼
Yes, live technical and installation support is available, giving homeowners confidence that help is always a call away.
How do I replace worn parts?
▼
Replacement parts are available online through the accessories section, ensuring your system continues performing like new.
Can extreme cold affect performance?
▼
Very low temperatures may slightly slow gate movement, but the system is designed for reliable operation in most climates.
Is theft of remotes a concern?
▼
Lost remotes can be removed from programming, providing secure control and preventing unauthorized access.
Can accessories fail independently?
▼
Yes, sensors, remotes, or keypads may require replacement over time, and easy-access parts make maintenance simple and hassle-free.
Can I install additional safety sensors later?
▼
Yes, extra sensors or safety edges can be added at any time, giving homeowners flexibility to enhance security as needed.
Where can I download the manual again?
▼
Manuals are available online through the Estate Swing library for convenient access, helping you install, maintain, and troubleshoot your system anytime.
What is the Estate Swing E-SL 450BD slide gate opener?
▼
It’s a premium belt-drive automatic slide gate opener designed for residential driveways, delivering quiet, smooth, and reliable operation while maintaining a sleek, discreet profile that enhances your property’s appearance and boosts convenience.
What type of gate can it operate?
▼
Perfect for residential vehicular slide gates made of wood, aluminum, steel, vinyl, or chain link, giving homeowners the flexibility to automate almost any standard driveway gate with ease and confidence.
What is the maximum gate weight this opener supports?
▼
Supports gates up to 450 lbs, offering ample power to operate medium-weight residential gates consistently, safely, and without strain on the motor or components.
What is the maximum gate length?
▼
Designed for gates up to 14 feet long, ensuring smooth, reliable operation for most single-family driveways and delivering professional-level performance in a residential setting.
Does it include a free extra remote?
▼
Yes — an extra remote is included, giving multiple users instant access and convenience right out of the box without the need for additional purchases.
What type of drive system does it use?
▼
Features a belt-drive system that installs like a chain but operates quietly and smoothly, offering maintenance-free, professional-quality performance comparable to a rack and pinion system.
Is the opener suited for DIY installation?
▼
Absolutely — it’s designed for homeowners with straightforward mounting brackets, allowing you to upgrade to automatic gates without hiring a professional and saving installation costs.
What power does this opener use?
▼
Runs on 24V DC via a 24V AC transformer, giving maximum power delivery and reliability for smooth operation while keeping installation safe and DIY-friendly.
Does it come with a transformer?
▼
Yes — the included 24 VAC transformer powers the opener and trickle charges the built-in backup battery, ensuring continuous operation even during power outages.
Can this opener work in cold temperatures?
▼
Operates reliably from -4 °F to 124 °F, so it can handle most climates without compromising gate speed, safety, or convenience for your family.
Is this system solar compatible?
▼
No — it runs off AC mains power with optional battery backup, delivering consistent energy to ensure dependable, uninterrupted gate operation.
How far can the remotes operate?
▼
Estate Swing Extended Range remotes typically reach up to 300 feet in open conditions, providing convenient and reliable access from vehicles or property entrances.
What makes belt drive advantageous over chain drive?
▼
Belt drive is whisper-quiet, smooth, and virtually maintenance-free, offering professional-grade reliability while protecting your gate and reducing long-term upkeep.
Is this opener good for light commercial use?
▼
The E-SL 450BD is optimized for residential driveway gates. High-cycle commercial operations require heavier-duty models.
Does this product include safety features?
▼
Yes — built-in entrapment and obstruction sensors help protect people, pets, and vehicles while ensuring smooth and worry-free operation.
What safety devices can I add later?
▼
Optional wireless photo eyes, exit wands, and safety loops can be installed for additional protection and peace of mind.
Does it automatically lock the gate when closed?
▼
Yes — the motor design electronically locks the gate when idle, but a mechanical lock is recommended to enhance property security.
Is the control board built-in?
▼
Yes — the integrated control board and receiver simplify installation and reduce clutter, giving a clean, professional look while supporting advanced features.
What accessories come with the opener?
▼
Includes belt brackets, belt, limit magnets, remotes, transformer, manual release key, and instruction manual — everything needed for safe, quick, and professional-grade installation.
What tools are needed for installation?
▼
Standard household tools like drills, wrenches, screwdrivers, level, tape measure, and wire strippers are all that’s required, making DIY installation quick, easy, and cost-effective.
Can I install this opener myself?
▼
Yes — the DIY-friendly design with bolt-on brackets allows homeowners to enjoy the convenience of automatic gate control without hiring a professional.
Does the opener include an installation manual?
▼
Yes — a detailed manual with templates, wiring diagrams, and step-by-step instructions ensures confident, smooth installation and minimizes guesswork.
Do I need to trench cables under the driveway?
▼
Yes — burying low-voltage wiring keeps it safe from vehicles and foot traffic while delivering a clean, professional-looking installation.
What wire gauge should I use for safety sensors?
▼
Use 16 AWG or heavier outdoor-rated low-voltage wire to ensure reliable, long-lasting sensor operation and maximum safety.
How do I set the travel limits?
▼
Magnetic limit switches precisely detect open and closed positions, providing consistent, wear-free stopping points for reliable daily operation.
How do I mount the drive belt to my gate?
▼
Use the included belt brackets and adjust based on gate length and alignment for quiet, smooth, professional-grade performance.
Is manual release provided?
▼
Yes — a key-operated manual release ensures safe operation during power outages, offering peace of mind and reliable access at all times.
Should the gate be level before installation?
▼
Yes — proper alignment of wheels and tracks ensures smooth movement, extends the life of the opener, and delivers premium gate performance.
Can I install the opener on uneven ground?
▼
Minor adjustments are possible, but leveling the gate and track produces the best results and prevents operational issues.
Can I add safety loop detectors?
▼
Yes — safety loops can be connected to the control board for enhanced vehicle detection and added protection for your property.
Can the transformer be mounted away from the gate?
▼
Yes — AC power and transformer placement can be optimized for safe, convenient wiring and professional installation aesthetics.
Do I need additional anchors or hardware?
▼
Depending on your posts, concrete anchors or masonry hardware may be needed to secure the opener for lasting, reliable operation.
Should I pre-test the gate wheels before installation?
▼
Yes — ensuring free, smooth movement is essential for proper automation and professional-level performance.
Can I install a keypad or code entry?
▼
Yes — compatible wireless keypads provide convenient, keyless entry and elevate property security.
What do limit magnets do?
▼
They detect when the gate is fully open or closed, stopping the motor precisely to prevent wear while ensuring safe and reliable operation.
The gate doesn’t open — what should I check first?
▼
Verify power supply, transformer output, remote battery, and wiring connections to restore reliable operation quickly and safely.
Why does the gate stop mid-travel?
▼
Obstruction sensors or limit magnets may be triggered or misaligned. These features protect people, pets, and vehicles while keeping the gate safe.
Can weather affect performance?
▼
Rated from -4 °F to 124 °F, the opener works reliably in most conditions while maintaining smooth, professional operation even in extreme weather. Extreme conditions may impact smooth function.
The remote range feels shorter than expected — why?
▼
Obstacles, antenna positioning, and interference can reduce range, so proper placement ensures maximum convenience and access.
Why does the gate reverse on closing?
▼
Safety sensors detect obstructions and reverse the gate to prevent damage, protecting both property and family members.
Can pets trigger the gate accidentally?
▼
Properly aligned photo eyes ignore small animals, combining convenience with full safety for humans and pets.
Is the opener safe around children?
▼
Yes — anti-crush obstruction detection and built-in safety features meet rigorous residential gate standards for peace of mind.
How often should I inspect the belt?
▼
Check periodically for wear or UV damage. The belt is backed by a 10-year prorated warranty to ensure long-lasting, worry-free operation.
What if the gate doesn’t fully close?
▼
Re-adjust limit magnets and clear track obstructions for smooth, safe operation every time.
Does the opener have overheating protection?
▼
Yes — overcurrent protection and magnetic limit detection prevent motor damage and extend component life for reliable performance.
How do I reset the opener?
▼
Follow the manual to clear programming and reconfigure the limit magnets. One-touch EZ programming makes setup effortless.
The safety sensors don’t respond — what now?
▼
Check wiring, cleanliness, and alignment to ensure proper operation and uninterrupted protection.
Does the opener draw power continuously?
▼
Yes — low-voltage DC with AC transformer ensures smooth, continuous, and reliable operation.
What does the warranty cover?
▼
5 years for mechanical parts and 1 year for electrical components, giving peace of mind and long-term reliability.
Can remotes be re-programmed or replaced?
▼
Yes — remotes are fully programmable, and replacements can be added easily to maintain control over your gate.
Why is the opener noisy sometimes?
▼
Belt drive systems are quieter than chains. Unusual noise usually indicates debris or misalignment, which is simple to correct and maintains professional-level operation.
Can lightning damage the control board?
▼
Surge protection is recommended to safeguard electronics and ensure continued performance during storms.
Should I lubricate the gate track?
▼
Yes — periodic lubrication keeps wheels and tracks moving smoothly and quietly while extending equipment life.
What if the belt stretches over time?
▼
The belt has a warranty, but replace it with an Estate Swing belt if needed. The long warranty ensures worry-free performance for years.
Why does the gate hesitate on start/stop?
▼
Check limit magnet placement and control board sensitivity settings to maintain smooth, precise operation.
Does warranty cover accessories?
▼
Accessory warranties vary. Review each component’s documentation for specific coverage.
How do I download a replacement manual?
▼
Manuals are available online at Estate Swing or Gate Crafters manuals section for convenient access anytime.
What should I do if the opener shuts off unexpectedly?
▼
Check power, transformer output, and possible thermal or obstruction cut-offs to restore safe, reliable function.
How do I contact technical support?
▼
Gate Crafters offers live technical and installation support 7 days a week from 9 AM to 9 PM EST. Simply give us a call at (800) 537-4283 for expert guidance whenever you need help.
What gate materials is this model compatible with?
▼
It works seamlessly with aluminum, wood, light steel, vinyl, and chain link gates, allowing homeowners to upgrade virtually any standard residential driveway gate with a durable, low-maintenance opener that enhances property security.
What is the maximum gate weight and length?
▼
Supports gates up to 800 lbs and 15 feet long, providing exceptional power and precision for heavier residential gates without sacrificing performance or reliability, ensuring smooth operation cycle after cycle.
Is this slide gate opener suitable for commercial use?
▼
While it’s optimized for residential driveways, the E-SL 1800 provides professional-level reliability and constant-duty operation, giving homeowners the confidence of commercial-grade technology in a home setting.
How does a slide gate opener differ from a swing gate opener?
▼
Slide gate openers move gates sideways along a track, ideal for properties where swing clearance is limited, giving you more flexibility and a cleaner, more space-efficient installation.
Does this opener include a free extra remote?
▼
Yes — a bonus free remote comes with the unit, so multiple family members can operate the gate immediately without extra cost, increasing convenience and security.
Why choose a 24 V DC system?
▼
24V DC motors are highly efficient, lower maintenance, and provide smooth starts and stops, delivering quiet, consistent operation while reducing wear on mechanical components for long-term reliability.
Is the E-SL 1800 solar compatible?
▼
No — it uses mains transformer power, ensuring constant-duty operation with direct AC-to-DC power delivery for maximum reliability, while optional backup batteries provide peace of mind during outages.
What does “constant duty” mean?
▼
The E-SL 1800 can run repeatedly without overheating because the transformer supplies full power directly to the motor, offering unmatched reliability compared to battery-only DIY openers that can stall under repeated cycles.
How does this model compare to belt-drive slide openers?
▼
Rack-and-pinion systems like the E-SL 1800 are engineered for durability, precision, and power for heavier gates, giving homeowners professional-grade performance in a compact, discreet housing.
Does this opener work with all slide gate track types?
▼
Yes — it works with standard residential slide gate tracks and rollers, making it a versatile and dependable choice for nearly any home driveway setup.
What accessories can I add later?
▼
Enhance convenience and safety by adding photo eye sensors, exit wands, keypads, and loop detectors — all fully compatible with the E-SL 1800 system.
How far does the remote typically work?
▼
Remotes generally operate up to 300 feet in open areas, allowing users to activate the gate conveniently from vehicles or property entrances with confidence.
Does the opener lock the gate when not operating?
▼
Yes — the motor’s design resists manual push-through while a mechanical lock can be added for extra property security, giving you peace of mind.
Is this opener weather resistant?
▼
Yes — outdoor-rated electronics and housing protect the unit in standard residential environments, ensuring reliable performance in sun, rain, or snow.
Can it handle uneven terrain?
▼
The opener works best on level tracks for smooth, efficient operation, but with proper installation, it still maintains reliable gate automation on most residential sites.
Are remote controls easily replaceable?
▼
Yes — additional or replacement remotes can be programmed easily, giving flexibility for expanded household or guest access.
Does it support auto-close functionality?
▼
Yes — auto-closing can be enabled via control board settings, providing added convenience and security for your property.
How does this model differ from lighter Estate Swing slide models?
▼
The E-SL 1800 features a larger motor and built-in transformer, making it ideal for heavier gates, offering professional-grade power and constant-duty operation that lighter models cannot match.
What warranty does the E-SL 1800 come with?
▼
Comes with a 5-year mechanical and 1-year electrical limited warranty, ensuring long-term reliability, durability, and confidence in your investment.
Do I need professional installation?
▼
The E-SL 1800 is DIY-friendly, allowing homeowners to enjoy professional-grade automation without hiring a technician, although complex setups can benefit from a professional touch.
What tools are needed for installation?
▼
Standard household tools such as drills, level, wrenches, screwdrivers, tape measure, and wire strippers are sufficient, making setup quick, simple, and cost-effective.
Does the opener include an installation manual?
▼
Yes — complete manuals with step-by-step instructions, wiring diagrams, and templates ensure confident, smooth installation and minimize mistakes.
What power supply is required?
▼
A 120VAC supply is converted to 24V DC via the included transformer, giving direct, constant-duty power for reliable, professional-grade operation.
How far can I locate the transformer from the gate?
▼
The transformer can be placed up to ~144 feet from the control board using proper gauge wire, offering flexible installation options to fit your property layout.
What gauge wire should I use?
▼
Heavier low-voltage wire (16 AWG for short runs, larger for long runs) ensures reliable operation and safe, efficient power delivery to the gate opener.
Do I need to bury wiring underground?
▼
Yes — bury low-voltage wiring to protect it from damage, weather, and pedestrian or vehicle traffic, giving your installation a clean, professional look.
How are travel limits set?
▼
Roller/spring limit switches provide precise, reliable open and closed gate positions, offering a hassle-free method for consistent gate operation every time.
Is manual release provided?
▼
Yes — a key-operated manual release lets you operate the gate by hand during power outages, ensuring reliable access in any situation.
Should the gate be level before installation?
▼
Yes — properly aligned and level tracks and gates ensure smooth operation, reduce wear on components, and deliver professional-level performance.
What is required to mount on concrete or steel posts?
▼
Use the appropriate anchors or brackets for your post material, providing a secure, long-lasting installation.
How do I mount safety sensors?
▼
Photo eye brackets are installed on opposite sides of the gate and wired to the control board, protecting people, pets, and vehicles.
Can I install a wireless keypad or entry system?
▼
Yes — most compatible keypads integrate easily with the control board, allowing secure, keyless entry and added convenience.
Should the control box be sheltered?
▼
The control electronics are outdoor-rated, but additional coverage helps protect them from direct rain and extends the life of your investment.
Does the system require lubrication?
▼
Rack-and-pinion gears are pre-lubricated. Periodic cleaning of gate rollers and tracks ensures smooth, quiet operation.
How do I test limit switch settings after installation?
▼
Use the manual control buttons to run open/close cycles and verify stopping points, giving confidence in safe, professional operation.
The gate won’t open — what should I check?
▼
Check remote battery, transformer output, and wiring connections to quickly restore smooth, reliable operation and maintain security.
The gate stops mid travel — why?
▼
Limit switches or safety devices may be triggered. These built-in safeguards protect people, pets, and property while maintaining dependable gate operation.
The remote range seems short — what causes this?
▼
Obstacles, antenna orientation, or interference can affect performance. Proper placement ensures full convenience and functionality.
Can weather affect performance?
▼
Extreme temperatures may temporarily slow DC motor operation, but the constant-duty design ensures reliable, professional-grade function in most residential climates.
The gate reverses unexpectedly — why?
▼
Obstruction sensors detect potential blockages and reverse the gate to prevent damage, ensuring the safety of family members and property.
Safety sensors aren’t triggering — what do I check?
▼
Ensure sensor lenses are clean and aligned properly across the gate, protecting everyone while maintaining smooth operation.
Does the gate opener need periodic maintenance?
▼
Yes — check bolts, tracks, rollers, and sensor alignment regularly to ensure long-lasting, worry-free performance.
The gate moves slowly — what’s the cause?
▼
Clean tracks, check wheel rollers, and ensure adequate voltage supply to maintain smooth, reliable operation every time.
Why is the opener noisy sometimes?
▼
Noise is usually caused by debris, misalignment, or worn rollers. These are easy to correct to restore quiet, professional-level operation.
Does the warranty cover parts only or labor?
▼
Warranty covers parts only, ensuring that the mechanical and electrical components are protected for long-term peace of mind.
Can accessories fail separately from the opener?
▼
Yes — remotes, sensors, and keypads can fail independently, but all are supported with replacement options for convenience.
How long should the opener last?
▼
With proper installation and maintenance, the E-SL 1800 can last many years, providing professional-grade reliability for residential gates.
Does surge protection help?
▼
Yes — surge protection safeguards the opener from lightning or electrical spikes, ensuring your E-SL 1800 keeps running reliably and giving you peace of mind that your investment is protected.
Why won’t the manual release work?
▼
Make sure the key is fully engaged and power is off. This provides a safe, reliable backup to open your gate manually whenever needed.
Can pets trigger the gate?
▼
Properly installed sensors minimize false triggers from small animals while keeping your family safe, combining convenience with professional-grade safety.
The gate doesn’t fully close — what should I adjust?
▼
Reset the limit switches to ensure the gate fully closes, giving secure operation and consistent, smooth performance every time.
Can I re-program remotes if lost?
▼
Yes — old codes can be cleared and new remotes re-programmed easily, letting you control access with flexibility and confidence.
The opener indicator lights aren’t on — what now?
▼
Check transformer output and fuses to restore system visibility, ensuring reliable operation and clear monitoring of your gate’s status.
Can the opener work during a power outage?
▼
Optional battery backups (sold separately) allow continued operation, keeping your gate functional and your property secure even during power loss.
Is it safe around children?
▼
Yes — the E-SL 1800 meets residential safety standards, providing both protection for children and confidence for homeowners.
Why does the gate hesitate to start/stop?
▼
Adjust the force and pause settings on the control board for smooth, dependable operation and professional-grade performance every cycle.
Where can I find installation manuals?
▼
Manuals are available online at Gate Crafters manual page for easy 24/7 access to clear DIY instructions.
What do I do if the motor overheats?
▼
Allow it to cool. The constant-duty design prevents overheating, ensuring reliable, long-lasting performance for your driveway gate.
How do I contact technical support?
▼
Gate Crafters offers live technical and installation support 7 days a week from 9 AM to 9 PM EST. Simply give us a call at (800) 537-4283 for expert guidance whenever you need help.
Why choose a solar gate opener instead of AC only?
▼
Solar provides power in remote locations without 110V access and keeps gates operational during outages, while Estate Swing’s low-standby design ensures energy efficiency and consistent operation, making it the ultimate sustainable choice.
Can this opener handle both heavy and lightweight gate leaves?
▼
Yes — it’s engineered for dual gates up to 600 lbs per leaf or 12 ft length, yet it’s gentle enough for lighter gates, giving you versatility and smooth, professional-grade operation no matter the gate size.
Is the E-S 1000D suitable for wood and metal gates?
▼
Yes — compatible with wood, steel, aluminum, vinyl, and chain-link gates, providing unmatched flexibility while delivering dependable, high-performance automation for any driveway style.
How does this compare with single swing gate openers?
▼
Dual openers have two actuators built for synchronized operation on two-leaf gate systems, offering superior safety, smoother movement, and professional-level efficiency that outperforms single swing alternatives.
What accessories are typically recommended?
▼
Photo sensors, coded keypads, safety edges, and remote transmitters enhance both convenience and security, allowing you to customize your gate system while maintaining Estate Swing’s high safety standards.
Does this gate opener include remotes?
▼
Yes — it includes a free extra remote, letting you and your family enjoy instant, professional-quality gate automation from the moment it’s installed.
What solar panel options are available?
▼
You can choose 10 W, 20 W, or 30 W solar panels depending on sunlight conditions, maximizing your gate’s efficiency and ensuring reliable operation even in low-light environments.
Can this opener be used on steep or irregular driveways?
▼
Yes, as long as hinges are solid and balanced. Estate Swing’s fully adjustable brackets make installation safe and professional, even on challenging or uneven terrain. High twists may require professional assistance.
Does it support push-to-open configuration?
▼
Yes — push-to-open is supported without additional brackets, giving you flexibility to tailor your installation while maintaining full strength and smooth operation.
Does this gate opener include remotes?
▼
Yes — it includes a free extra remote, letting you and your family enjoy instant, professional-quality gate automation from the moment it’s installed.
Where can I find user manuals and diagrams?
▼
Complete Estate Swing manuals are available online on the product manuals page, providing step-by-step guidance for installation, maintenance, and accessory setup, ensuring a smooth, professional-quality experience.
Question Info Needed
▼
How do I test limit switch settings after installation?
