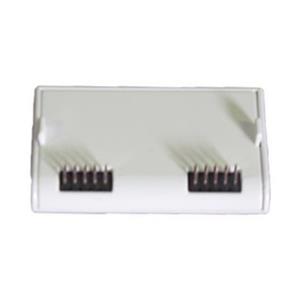

Nice Apollo OVBT Bluetooth Adapter for O-View Programmer
|
Chat with a live representative or Send
us an email
1-800-537-4283
|
|
|
The OVBT is the Bluetooth module that allows your gate operator to be paired with your wireless device. The product comes with a software package that needs to be installed in order for the device (PC, palmtop computer, or smartphone) to connect with the Oview module. The software allows for the Oview programmer to configure the network address, program the functions and set the parameters, show diagnostics of the state of operation, and control the automation.
Main features:
Control the automation of your gate operator wirelessly
A detailed and intuitive graphic interface through the monitor of your device.
Simpler navigation and data entry via the keyboard of the device
Create a database of modifications already programmed.
Performing diagnostics.
Able to update the device with new firmware releases of new functions
|
|
|
|
GateCrafters.com has the resources you need. How do you use your gate opener system once you get it? GateCrafters.com is the only retailer to give a real answer to this
question. We have developed videos for installing many of our gate openers and products and write DIY focused manuals for most gate openers and have individual instructions for each
accessory to be installed with each gate opener.
|
|
|
|
|
|
Type: module for wireless connection via Bluetooth® technology
Compatibility and connections: the OVBT device is to be considered an accessory of Oview and becomes an integral part of the latter
Radio technology: Bluetooth® Class 2 (range up to 30 metres)
Bluetooth® Compatibility: 2.0 +EDR (Enhanced Data Rates)
Frequency: 2.4 GHz (ISM band)
Nominal output power: +4dBm
Nominal sensitivity: -84 dBm
Aerial: integrated
Power supply: 3.3 V (70 mA) via Oview
Data memory: EEPROM, 128 Kb for updating device firmware
Operating temperature: from -20 to +55℃
Dimensions (mm): 60 X 30 X 13 H
Weight: 15g
Manual: Oview Module Manager QB ID: OVBT
|
|
